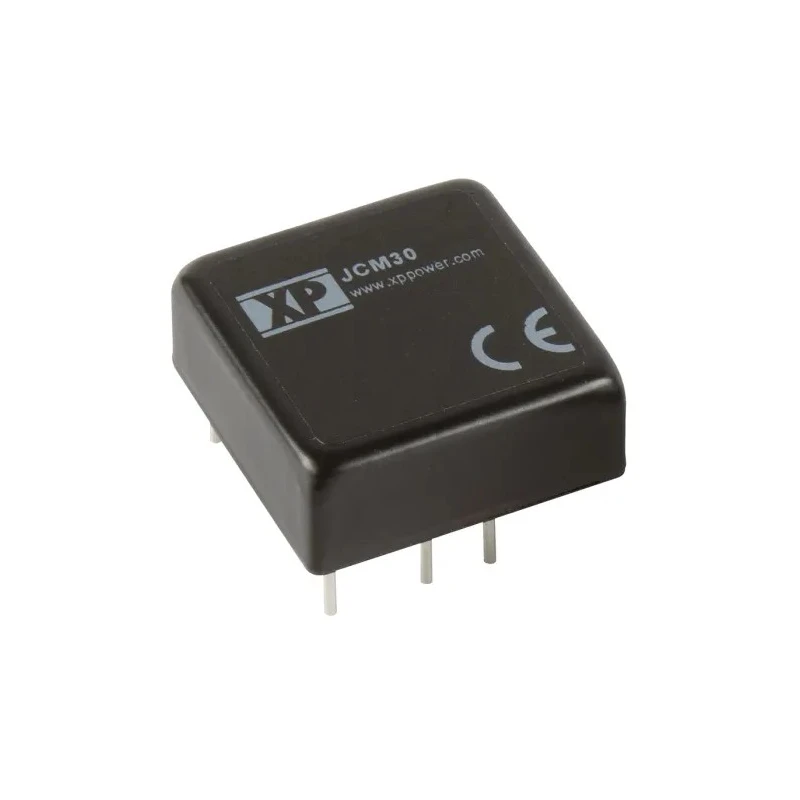

XP Power Isolated DC/DC Converter 5V DC Output 6A 36V DC Input 18V Input 30W Through Hole DIP Package JCM30
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCM30 DC/DC Converter, 5V dc/ 6 A, 36V dc |
| Brand | XP Power |
| Efficiency | 90% |
| Length | 25.4mm |
| Model | JCM30 |
| Depth | 10.4mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JCM30 |
| Maximum Operating Temperature | 105°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 370000h |
| Number of outputs | 1 |
| Maximum Output Power | 30W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 6 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 6A |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- The device is supplied in a through hole DIP package for reliable mounting.
- It features a high isolation voltage of 1.6kV DC for safety.
- The unit operates efficiently at 90%, minimizing power losses during conversion.
- The operating temperature range spans from -40°C to +105°C to suit demanding environments.
- The compact 25.4mm x 25.4mm footprint suits small PCB designs.
- The converter has a mean time between failures (MTBF) of 370,000 hours ensuring robust reliability.
- Output voltage adjustment range is ±1% for tight regulation.
- Single output with a 6-pin configuration simplifies integration.
Product Description
XP Power JCM30 DC/DC Converter model JCM30 is designed to convert DC input voltages between 18V and 36V to a stable 5V DC output at 6A with a maximum output power of 30W. It features an isolated DC/DC architecture with 1600 V DC isolation voltage. This unit comes in a through hole DIP package measuring 25.4mm length by 25.4mm width and 10.4mm depth, providing a compact 1 inch by 1 inch footprint to fit space-constrained PCB layouts.
The converter operates reliably across a wide temperature range from -40°C up to 105°C, making it suitable for industrial, telecommunications, and embedded system applications requiring robust voltage regulation in harsh conditions. Its 90% efficiency reduces heat dissipation and improves energy savings in power-sensitive environments.
This DC/DC converter offers a 2:1 input ratio, allowing flexible input power sources within the specified voltage range. The output voltage adjustment range within ±1% ensures precise voltage regulation for sensitive electronics. Additionally, the product boasts a high MTBF of 370,000 hours, reflecting its durable design.
Key features include a single output configuration with 6 pins for through hole mounting, making it straightforward to integrate into existing hardware designs. Though it has no specific certifications mentioned, it meets common industry standards and is manufactured in Taiwan, Province Of China.
This product provides isolated 5V output at 6A with 30W power capacity. Wide input voltage from 18V to 36V with 2:1 ratio. Through hole DIP package with compact dimensions 25.4 mm x 25.4 mm x 10.4 mm. Excellent thermal operating range from -40°C to 105°C.
High isolation voltage at 1.6 kV DC for safety. 90% conversion efficiency minimizes power loss. Mean time between failures (MTBF) rated at 370,000 hours ensures reliability. Single output with ±1% voltage adjustment for regulation.
6 pins for robust through hole mounting on PCB. Manufactured in Taiwan, Province Of China.
This XP Power JCM30 converter is ideal for industrial equipment, telecommunications, and embedded system applications where reliable isolated DC/DC power conversion is required. It supports a broad range of input voltages and delivers regulated output under challenging environmental conditions.
Explore more DC/DC Converters and power supply solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The JCM30 model provides a stable output voltage of 5V DC at a maximum current of 6A.
This converter operates with a minimum input voltage of 18V and a maximum input voltage of 36V, allowing for a 2:1 input ratio.
The XP Power JCM30 has an efficiency rating of 90%, which helps minimize power losses during operation.
The JCM30 converter measures 25.4mm in length, 25.4mm in width, and 10.4mm in depth, providing a compact footprint suitable for small PCB designs.
The JCM30 features a high isolation voltage of 1.6kV DC, enhancing safety during operation.
This unit operates effectively in a wide temperature range from -40°C to +105°C, making it suitable for demanding environments.
The JCM30 converter is designed with a single output configuration.
The JCM30 has a mean time between failures (MTBF) of 370,000 hours, indicating its reliability over time.
This model utilizes a through hole DIP package for reliable mounting on PCBs.
The output voltage adjustment range for this converter is ±1%, allowing for tight voltage regulation.
The JCM30 is suitable for industrial, telecommunications, and embedded system applications that require reliable isolated DC/DC power conversion.
The JCM30 is supplied in a DIP package, which is compact and suitable for through hole mounting.
