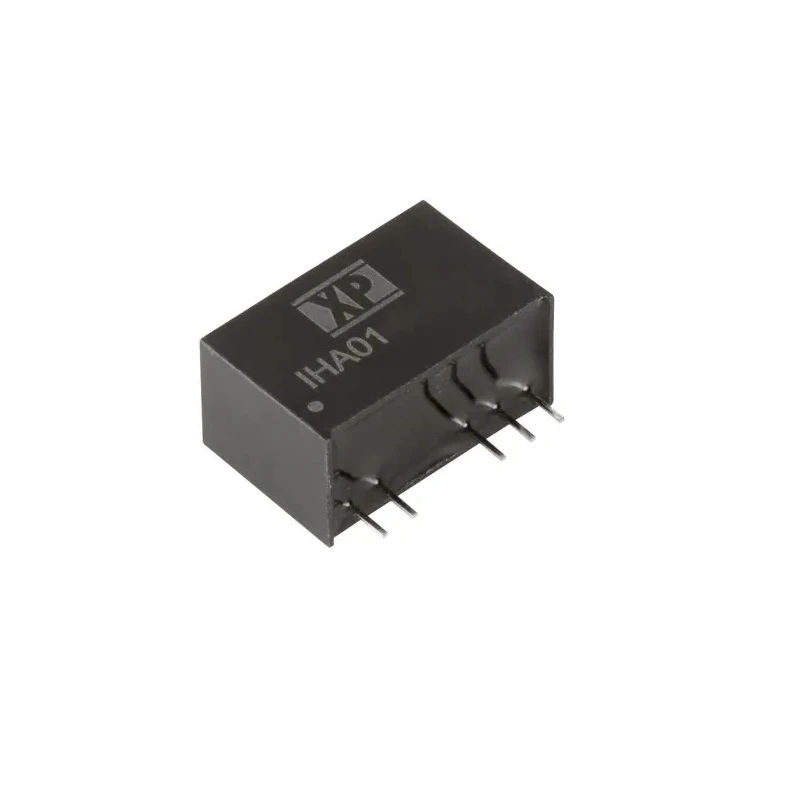

XP Power Isolated DC/DC Converter SIP7 Package 1W 5V 200mA Output 9.9V Max Input IHA01
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IHA01 DC/DC Converter, 5V dc/ 200 mA, 9 |
| Brand | XP Power |
| Efficiency | 77% |
| Length | 19.5mm |
| Model | IHA01 |
| Depth | 12.5mm |
| Width | 9.8mm |
| Mount Type | Through Hole |
| Series | IHA01 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2500000h |
| Number of outputs | 1 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 9.9V dc |
| Minimum Input Voltage | 8.1V |
| Number of Pins | 7 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 200mA |
| Isolation Voltage | 6kV dc |
Key Features
- Features high isolation voltage of 6000 V dc for safety and reliability.
- Operates efficiently with 77% efficiency rating at full load.
- Suitable for single output applications with 7-pin configuration.
- Wide operating temperature range from -40°C to 85°C for various environments.
- Compact size with dimensions 19.5mm length, 9.8mm width, and 12.5mm depth.
- High MTBF of 2.5 million hours ensures long product life.
- Designed for use in MOSFET and IGBT drive circuits with bipolar outputs.
- Industry standard SIP package supports easy PCB through-hole mounting.
Product Description
XP Power IHA01 DC/DC Converter is a highly isolated power module designed for efficient DC voltage conversion applications. This converter features a single output delivering 5V dc at 200mA, with a maximum input voltage of 9.9V dc and minimum input of 8.1V, optimized for small power requirements up to 1 watt. Packaged in a SIP7 through-hole format, it is easy to incorporate into electronic assemblies.
The converter offers an impressive isolation voltage of 6000 V dc, ensuring safe operation in sensitive electronic environments. It maintains a wide operating temperature range from -40 °C to 85 °C, making it suitable for industrial, laboratory, and power management applications where temperature variability is encountered.
Designed with a 7-pin configuration, it adapts to single output requirements and is capable of supporting MOSFET and IGBT drive configurations through its bipolar output design. The compact physical dimensions (19.5 mm x 9.8 mm x 12.5 mm) facilitate space-efficient PCB layouts. Its 77% efficiency rating ensures minimal energy loss during operation, enhancing overall system performance.
High 6000 V dc isolation voltage provides excellent safety margin. Offers stable 5V at 200mA output current for low-power devices. Designed in a widely compatible SIP7 package for easy integration. Operational temperature range supports harsh environments.
Long MTBF rating of 2.5 million hours guarantees reliability. Suitable for industrial, commercial, laboratory, and manufacturing uses. Efficient 1 watt power handling in a compact footprint. Made in Taiwan ensuring trusted quality standards.
This XP Power IHA01 converter is ideal for powering and isolating circuitry in industrial control, aerospace, communications equipment, and medical instruments. It provides stable, noise-free power conversion and isolation to protect downstream components and improve system stability.
Explore the full range of DC/DC Converters by XP Power on EnvMart to find compatible solutions for your power supply needs. Our comprehensive catalog offers industry-standard power management components to support your design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 5V dc with a maximum output current of 200mA.
The maximum input voltage for the IHA01 is 9.9V dc, while the minimum input voltage is 8.1V dc.
It operates with an efficiency rating of 77% at full load.
The dimensions of this unit are 19.5mm in length, 9.8mm in width, and 12.5mm in depth.
This model features a high isolation voltage of 6000 V dc, ensuring safe operation in sensitive environments.
The IHA01 operates efficiently within a wide temperature range of -40°C to 85°C.
This converter is designed with a single output.
It is designed for through-hole mounting in a SIP package format.
The IHA01 has a high MTBF rating of 2.5 million hours, indicating its reliability.
This converter is suitable for use in industrial control, aerospace, communications equipment, and medical instruments.
It features a 7-pin configuration designed for single output applications, suitable for MOSFET and IGBT drive circuits.
This product is made in Taiwan, ensuring adherence to quality standards.
