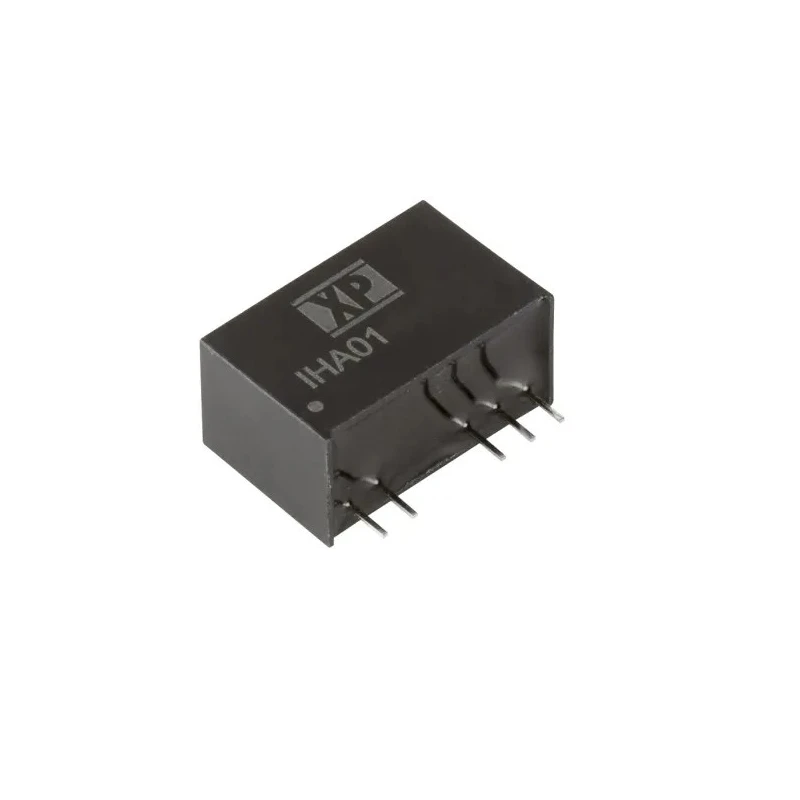

XP Power Isolated DC/DC Converter 9V DC 30mA, 9.9V Max Input, 8.1V Min Input, 1W Through Hole SIP7 Package IHA01
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IHA01 DC/DC Converter, 9V dc/ 30 mA, 9 |
| Brand | XP Power |
| Efficiency | 77% |
| Length | 19.5mm |
| Model | IHA01 |
| Depth | 12.5mm |
| Width | 9.8mm |
| Mount Type | Through Hole |
| Series | IHA01 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2500000h |
| Number of outputs | 2 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 9.9V |
| Minimum Input Voltage | 8.1V |
| Number of Pins | 7 |
| Output Voltage 1 | 9V dc |
| Output Current 1 | 30mA |
| Isolation Voltage | 6kV dc |
Key Features
- Supports input voltage range from 8.1V to 9.9V for flexible operation.
- Provides 30mA output current suitable for low power applications.
- Designed with a standard through hole SIP7 package for easy PCB mounting.
- Features high isolation voltage of 6kV DC ensuring safety and noise reduction.
- Operates efficiently at 77% with wide operating temperatures from -40°C to 85°C.
- Offers two outputs enabling use in various single-phase environment installations.
- Built for use with both MOSFET and IGBT drives due to bipolar outputs.
- High reliability with an MTBF rating of 2.5 million hours.
Product Description
XP Power IHA01 model is a highly reliable isolated DC/DC converter designed for industrial and electronic applications requiring stable 9V DC output at low power levels. The unit supports input voltage range from 8.1V to 9.9V and delivers a maximum output power of 1 Watt with 30mA current, making it ideal for powering sensitive electronics and control circuits.
The converter is housed in a through-hole SIP7 package, supporting surface mounting on printed circuit boards (PCBs), and ensuring compatibility with both new and existing system designs.
The IHA01 series features an impressive high isolation voltage of 6kV DC, providing strong electrical separation between input and output for enhanced safety and noise immunity, suitable for industrial environments where electrical isolation is critical.
This product operates efficiently at approximately 77% efficiency and withstands harsh temperature conditions ranging from -40°C to a maximum of 85°C, allowing reliable usage in a wide variety of industrial, manufacturing, laboratory, communication, and HVAC equipment applications.
With a mean time between failures (MTBF) of 2.5 million hours, this DC/DC converter offers excellent longevity and performance stability over long-term operation. The dual output configuration allows use in multiple single phase power setups, and bipolar outputs make it compatible with MOSFET and IGBT drive circuits.
Supports input voltage range from 8.1V to 9.9V. Maximum output power of 1W with 30mA output current. Through hole SIP7 package for easy PCB assembly. High isolation voltage of 6000V DC for safety. Wide operating temperature range: -40°C to 85°C.
Compatibility with MOSFET and IGBT drives. MTBF rating of 2.5 million hours ensures durability. Compact size with dimensions 19.5mm × 12.5mm × 9.8mm. Manufactured in Taiwan, Province Of China.
This XP Power IHA01 DC/DC converter is tailored for applications in industrial automation, electronic instrumentation, communication devices, medical equipment, and other sectors needing reliable isolated voltage conversion. For more options and details, explore the EnvMart catalog under DC/DC Converters and XP Power products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 8.1V to 9.9V.
This DC/DC converter delivers a maximum output power of 1 Watt with an output current of 30mA.
It operates with an efficiency of approximately 77%.
The dimensions of this unit are 19.5mm in length, 12.5mm in depth, and 9.8mm in width.
It features a high isolation voltage of 6kV DC, ensuring strong electrical separation between input and output.
The operating temperature range is from -40°C to a maximum of 85°C.
This model has two outputs, allowing for versatile use in various applications.
It is designed for through-hole mounting, making it suitable for PCB assembly.
This converter is tailored for industrial automation, electronic instrumentation, communication devices, and medical equipment.
The MTBF rating for this unit is 2.5 million hours, indicating its reliability over time.
Yes, it is designed to be compatible with both MOSFET and IGBT drive circuits due to its bipolar outputs.
This DC/DC converter is manufactured in Taiwan, Province Of China.
