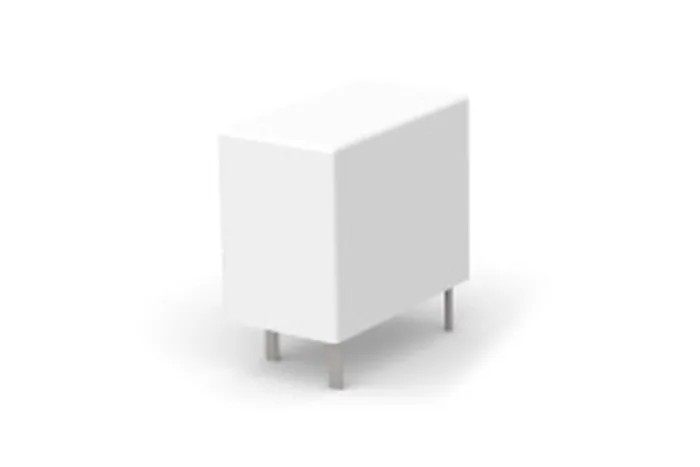

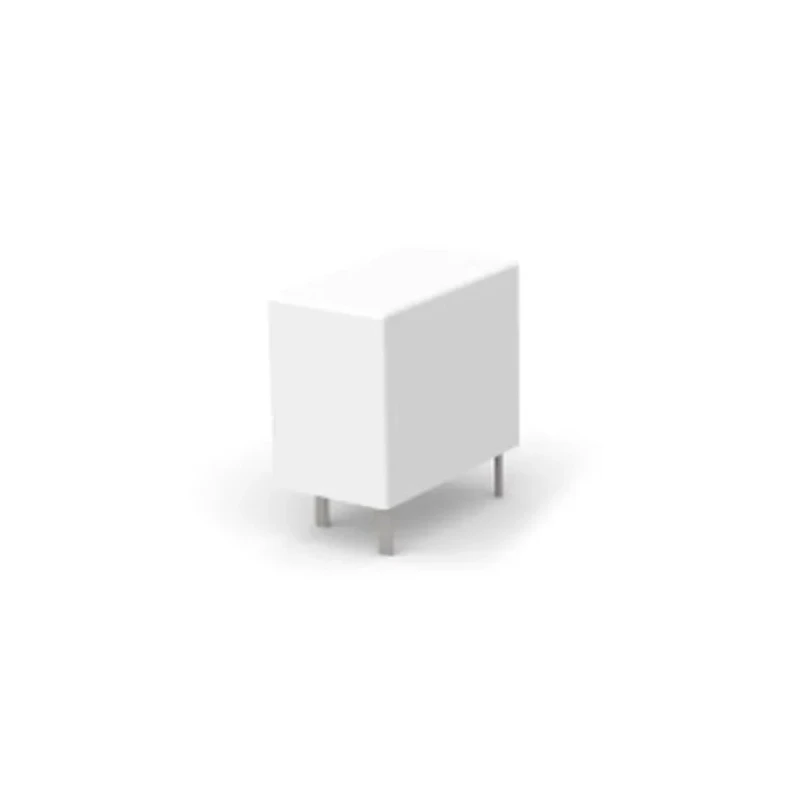

TE Connectivity PCB Power Relay 5V dc Coil 3A Switching Current SPST OJ-SH-105LM,000
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 14.7mm |
| Length | 18.2mm |
| Model | OJ-SH-105LM,000 |
| Width | 10.2mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | OJ |
| Maximum Operating Temperature | 90°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Switching Current | 3A |
| Terminal type | PCB Pin |
| Standards/Approvals | RoHS |
| Coil Resistance | 125Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 277V |
| Coil Power | 200mW |
Key Features
- This relay is designed for PCB mounting and uses PCB pin terminals.
- It supports switching voltages up to 30V dc and 277V ac.
- The coil power consumption is 200mW with a coil resistance of 125Ω.
- It operates reliably between temperatures of -30°C and 90°C.
- Constructed with silver alloy contacts for durability and efficient conductivity.
- Complies with RoHS standards ensuring environmental safety.
- Compact dimensions measuring 18.2mm in length, 10.2mm in width, and 14.7mm in height.
- Suitable for lighting systems, movement sensors, filament and incandescent lamp loads, and motor control applications.
Product Description
TE Connectivity OJ-SH-105LM,000 PCB Power Relay is a high-quality industrial relay designed for precise switching in electronic and electrical equipment. Operating at a coil voltage of 5V dc and supporting a maximum switching current of 3A, this relay offers reliable SPST (Single Pole Single Throw) contact configuration, ideal for diverse industrial automation and control systems.
Its mounting type is specifically designed for PCB installations utilizing PCB pin terminals, ensuring easy integration into printed circuit boards. With the capability to switch DC voltages up to 30V and AC voltages up to 277V, it meets varied power control needs.
The relay features silver alloy contacts, which enhance electrical conductivity and durability, supporting applications such as lighting controls, movement sensors, filament and incandescent lamp loads, and motors. The coil power consumption is a minimal 200mW, and the coil resistance is 125Ω, optimizing energy efficiency.
This component is engineered to operate reliably within a wide temperature range from -30°C to 90°C, making it robust for various environmental conditions. Adhering to RoHS compliance, it assures safer and environmentally conscious usage.
The compact dimensions of 18.2mm in length, 10.2mm in width, and 14.7mm in height allow for space-saving installation on PCBs. Originating from China, this relay is part of the OJ series known for high inrush capability and reinforced insulation compliant with IEC 60669-1 standards.
This relay is designed for PCB mounting and uses PCB pin terminals. It supports switching voltages up to 30V dc and 277V ac. The coil power consumption is 200mW with a coil resistance of 125Ω. It operates reliably between temperatures of -30°C and 90°C.
Constructed with silver alloy contacts for durability and efficient conductivity. Complies with RoHS standards ensuring environmental safety. Compact dimensions measuring 18.2mm in length, 10.2mm in width, and 14.7mm in height.
Suitable for lighting systems, movement sensors, filament and incandescent lamp loads, and motor control applications.
This TE Connectivity Power Relay is widely used in industrial, automation, and electrical control applications. Explore EnvMart's collection for compatible relays and electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this relay is 3A.
The coil voltage of this model is 5V dc.
This relay measures 18.2mm in length, 10.2mm in width, and 14.7mm in height.
It is designed for PCB mounting and utilizes PCB pin terminals.
The coil power consumption is 200mW.
It supports switching voltages up to 30V dc and 277V ac.
The coil resistance is 125Ω.
The contacts are constructed from silver alloy, enhancing conductivity and durability.
It operates reliably between temperatures of -30°C and 90°C.
Yes, it complies with RoHS standards, ensuring environmental safety.
This relay is suitable for lighting systems, movement sensors, filament and incandescent lamp loads, and motor control applications.
This model belongs to the OJ series, known for its high inrush capability and reinforced insulation.
