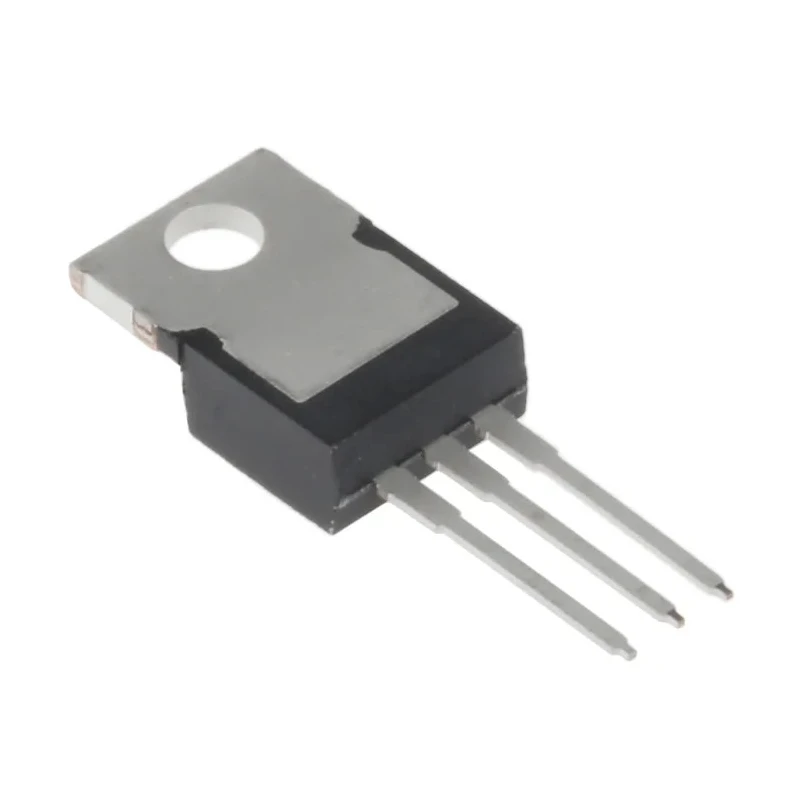

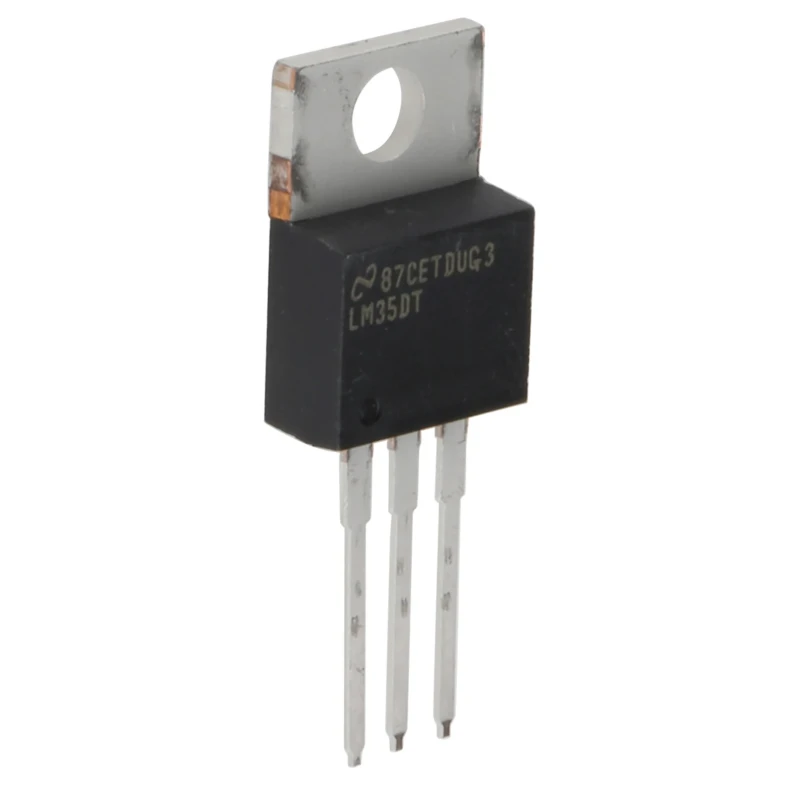

Texas Instruments Voltage Output, Analogue, Through Hole Temperature Sensor LM35 with ±0.6°C Accuracy, 3-Pin TO-220 LM35
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.6°C |
| Brand | Texas Instruments |
| Height | 8.89mm |
| Temperature range | -40 to +110°C (LM35C), 0 to +100°C (LM35D) |
| Length | 10.16mm |
| Model | LM35 |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Output type | Voltage |
| Series | LM35 |
| Maximum Operating Temperature | 100°C |
| Package Type | TO-220 |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | 0°C |
| Supply Voltage | +4V to +30Vdc |
| Interface Type | Analogue |
| Pin Count | 3 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 4V |
| Sensor Gain | 10mV/°C |
Key Features
- This sensor outputs 10mV per degree Celsius for easy temperature monitoring.
- Operates over a supply voltage range of 4V to 30V DC.
- Suitable for temperature ranges from 0°C to 100°C for the LM35D model.
- Compact dimensions of 10.16 mm length, 4.7 mm width, and 8.89 mm height enable easy through-hole mounting.
- Low self-heating ensures minimal measurement error in still air conditions.
- Designed for applications including home appliances, battery management, gaming devices, and portable medical instruments.
- The package is RoHS compliant and environmentally friendly (No Pb - lead free).
Product Description
Texas Instruments LM35 is a highly accurate, voltage output temperature sensor designed with analogue interface technology and packaged in a 3-pin TO-220 through-hole mount. It delivers a sensor gain of 10mV/°C with a typical accuracy of ±0.6°C, making it ideal for measuring temperatures within 0°C to 100°C for the LM35D variant.
This sensor operates reliably over a wide supply voltage range from 4V to 30V DC, and its low self-heating characteristic (0.08°C in still air) minimizes thermal errors during continuous use. Its compact form factor with dimensions measuring 10.16 by 4.7 by 8.89 mm facilitates straightforward mounting on various printed circuit boards.
The LM35 sensor from Texas Instruments is extensively used in industrial, laboratory, and home applications such as monitoring temperatures in home appliances, managing battery health, gaming hardware temperature control, disk drive temperature sensing, and portable medical instrumentation.
Being lead-free and RoHS-compliant, it supports environmentally responsible manufacturing requirements. The sensor's analogue voltage output directly corresponds to temperature measurements, simplifying integration with analog-to-digital converters or monitoring systems.
This sensor outputs 10mV per degree Celsius for easy temperature monitoring. Operates over a supply voltage range of 4V to 30V DC. Suitable for temperature ranges from 0°C to 100°C for the LM35D model. Compact dimensions of 10.16 mm length, 4.7 mm width, and 8.89 mm height enable easy through-hole mounting.
Low self-heating ensures minimal measurement error in still air conditions. Designed for applications including home appliances, battery management, gaming devices, and portable medical instruments. The package is RoHS compliant and environmentally friendly (No Pb - lead free).
Explore more Temperature Sensors and semiconductor components at EnvMart for your industrial, laboratory, and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LM35 sensor is suitable for temperature ranges from 0°C to 100°C for the LM35D model.
The sensor has a typical accuracy of ±0.6°C.
It operates over a supply voltage range of 4V to 30V DC.
This model outputs a voltage of 10mV per degree Celsius, which corresponds directly to the temperature measurement.
The sensor has compact dimensions of 10.16 mm in length, 4.7 mm in width, and 8.89 mm in height.
It is designed for through-hole mounting.
The LM35 has a low self-heating characteristic of 0.08°C in still air, minimizing thermal errors during use.
The sensor is packaged in a TO-220 type.
It is designed for applications including home appliances, battery management, gaming devices, and portable medical instruments.
This model features an analogue interface type for output.
The maximum operating temperature for this sensor is 100°C.
The country of origin for the LM35 sensor is India.
