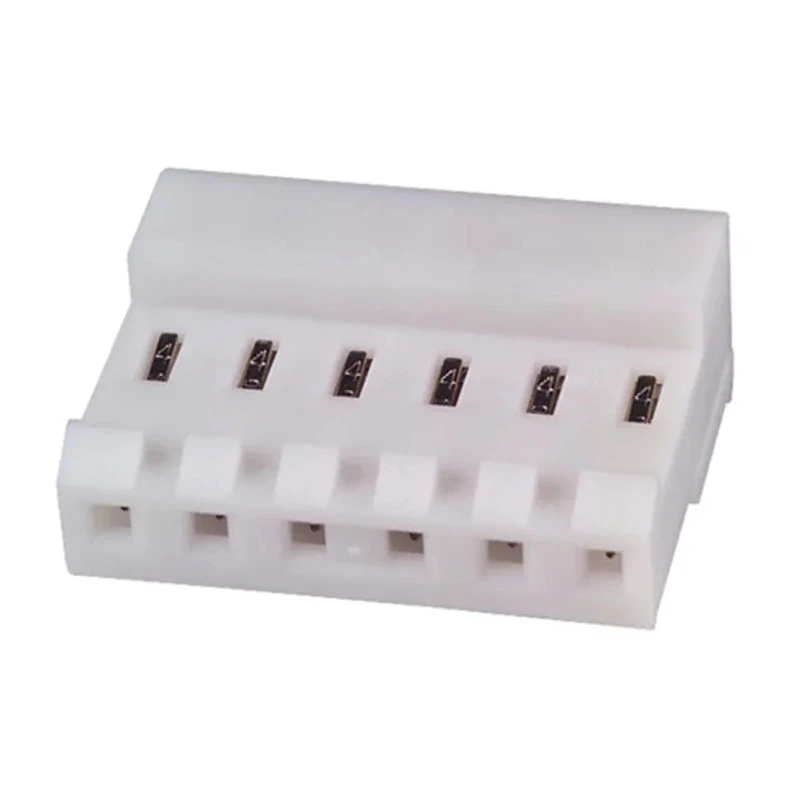

TE Connectivity 6-Way Female IDC Cable Connector, 1 Row, 7A Current, 600V AC, 3.96mm Pitch 3-640429-6

TE Connectivity 3-640429-6 6-Way Female IDC Connector is an electronic component designed for cable-mounted connections featuring one row of six contacts on a 3.96 mm pitch.

It supports a maximum current of 7 amperes at an AC voltage of 600 volts and operates reliably within temperature ranges of -55°C to 105°C. The connector contacts are made of copper with a tin over nickel plating to ensure superior electrical performance and corrosion resistance.

The nylon housing complies with UL94V-2 flame retardant standard and includes molded ribs to prevent reverse mating errors during assembly. The connector uses insulation displacement contact (IDC) technology, which allows for efficient mass termination of wires without the need for stripping insulation, saving labor and reducing assembly time.

This MTA-156 series connector accepts 18 to 26 AWG stranded discrete wire sizes and supports robust physical and electrical connections with locking ramps and polarization tabs for increased security and reliability in industrial applications.

Common use cases include wire-to-wire and wire-to-board interconnections in electronics manufacturing, industrial controls, telecommunications equipment, and other environments requiring reliable, quick-to-assemble connectors.

This female IDC Connector features a right-angle orientation for cable mounting applications. It uses tin over nickel plating on copper contacts for enhanced conductivity and corrosion resistance. The housing is made from durable nylon with UL94V-2 rating for flame retardance.

Operating temperature range is from -55°C to 105°C, suitable for demanding environments. The connector follows the MTA-156 series with IDC termination type enabling quick assembly without wire stripping. It accommodates stranded discrete wire sizes from 18 to 26 AWG.

Designed with molded ribs to prevent reverse mating and includes locking ramps and polarization tabs for secure connections. Ideal for electronics, industrial, and commercial wire-to-wire or wire-to-board applications.
