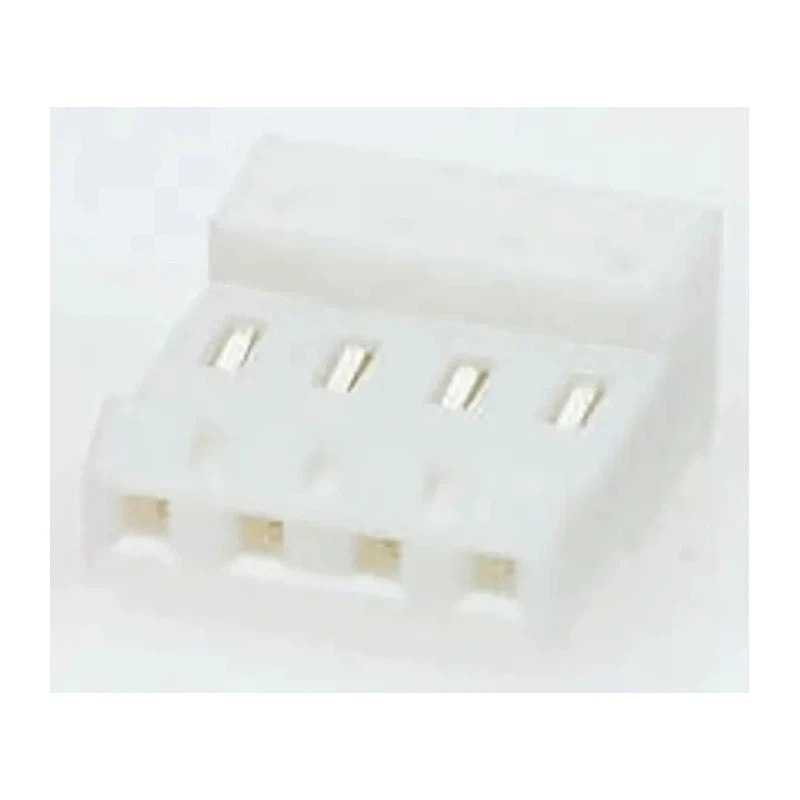

TE Connectivity 4-Way 1 Row Shrouded Female IDC Connector for Cable, 3.96mm Pitch, 7A, 600V AC, Nylon Housing 3-640429-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 7A |
| Mount Type | Cable |
| Housing Material | Nylon |
| Contact Material | Copper |
| Series | MTA-156 |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
Key Features
- Shrouded female IDC connector for cable termination ensures secure connections.
- Features 4 contacts arranged in a single row with a 3.96mm pitch.
- Rated current of 7 amperes and voltage of 600V AC for robust electrical performance.
- Housing made of durable nylon material with a right angle orientation.
- Contacts plated with tin over nickel for corrosion resistance.
- Operates in temperature range from -55°C to 105°C suitable for various environments.
- Uses insulation displacement contact (IDC) termination technology for efficient assembly.
- Compatible with wire sizes from 18 to 26 AWG for versatile usage.
Product Description
TE Connectivity 3-640429-4 4-Way IDC Connector Female is a high-quality component designed for cable assembly in electronic and electrical applications. This connector features a 3.96mm pitch with 4 contacts arranged in a single row, providing reliable and durable wire-to-wire connections.
Constructed with a shrouded female housing made of nylon 6/6 UL94V-2, the connector offers high mechanical strength and resistance to environmental factors. The IDC (Insulation Displacement Contact) technology enables fast, one-step wire termination, eliminating the need for wire stripping and saving assembly time and cost.
Rated for 7 Amperes current and 600V AC voltage, this connector supports robust electrical performance. Contact plating with tin over nickel protects against corrosion, enhancing long-term reliability. It operates efficiently across a broad temperature range of -55°C to 105°C, suitable for diverse industrial, laboratory, HVAC, manufacturing, and commercial uses.
The MTA-156 series design incorporates features like locking ramps and polarization tabs to prevent incorrect mating and enhance connection security. It accepts stranded discrete wire sizes from 18 to 26 AWG, providing flexible cable compatibility for various wire-to-wire and wire-to-board applications.
Shrouded female IDC connector for secure cable connections. 4 contacts in 1 row with 3.96mm pitch spacing. 7A current rating and 600V AC voltage rating. Nylon housing with UL94V-2 flame retardancy. Contact plating of tin over nickel for corrosion resistance.
Wide operating temperature range of -55°C to 105°C. Efficient assembly using IDC termination technology. Compatible with 18 to 26 AWG wire sizes. Locking ramps and polarization tabs to avoid mis-mating. Part of the MTA-156 interconnect system for standardization.
This connector is ideal for applications involving electronics manufacturing, industrial equipment assembly, and wiring harness solutions needing reliable and easy-to-install electrical connectivity.
Discover more products in the IDC Connector category on EnvMart for your electronic component sourcing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for a current of 7 Amperes and a voltage of 600V AC, ensuring robust electrical performance.
It features a pitch of 3.96mm and has 4 contacts arranged in a single row.
This model is compatible with wire sizes ranging from 18 to 26 AWG, allowing for versatile usage in various applications.
The housing is made of nylon, and the contacts are constructed from copper, plated with tin over nickel for corrosion resistance.
It operates efficiently across a temperature range from -55°C to 105°C, suitable for diverse environments.
The IDC termination technology allows for fast, one-step wire termination, eliminating the need for wire stripping and saving assembly time and cost.
It incorporates locking ramps and polarization tabs to prevent incorrect mating and enhance connection security.
This connector is a shrouded female IDC connector, designed for secure cable connections.
The connector has a right angle orientation, facilitating specific installation requirements.
Yes, it is part of the MTA-156 series, which standardizes interconnect systems.
The country of origin for this connector is India.
This unit is suitable for applications involving electronics manufacturing, industrial equipment assembly, and wiring harness solutions.
