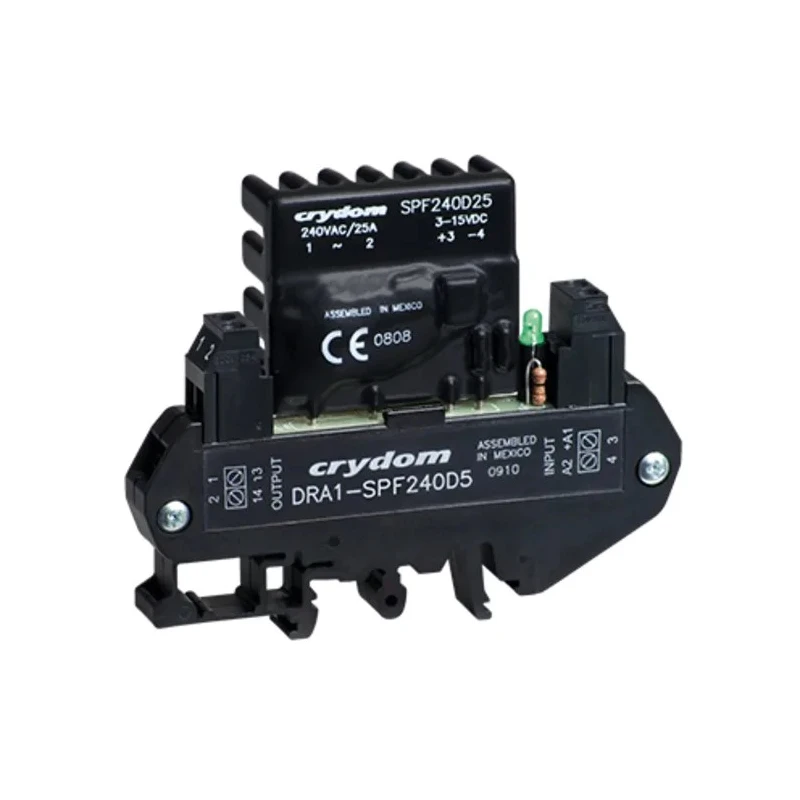

Crydom DRA1 Series Solid State Relay, PCB Mount, 25 A Load Current, 280 Vrms Load Voltage, 3-15V Control
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 34.3mm |
| Length | 40.6mm |
| Model | DRA1 |
| Mount Type | PCB |
| Output type | SCR |
| Series | DRA1 |
| Maximum Operating Temperature | 80°C |
| Package Type | SIP SSR |
| Capacitance | 8pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Screw |
| Switching Function | Zero Cross |
| Maximum Load Current | 25A |
| Standards/Approvals | IEC 62314E116950 |
| Minimum Load Voltage | 12V ac |
| Minimum Control Voltage | 3V ac/dc |
| Maximum Control Voltage | 15V |
| Off State Leakage Current | 0.1mArms |
Key Features
- Compact, space-saving PCB mount design for integration in electronic circuits.
- Rated maximum load current of 25 amperes suitable for high power applications.
- Wide control voltage range from 3 to 15 volts AC/DC for versatile control options.
- Zero cross switching function providing smooth turn-on with reduced electrical noise.
- Capable of operating in temperatures from -30°C to 80°C for industrial use.
- Screw terminal type ensures secure electrical connections.
- Low off-state leakage current of 0.1 mArms for efficient energy savings.
- Compact dimensions of 34.3 mm height and 40.6 mm length optimize PCB space usage.
Product Description

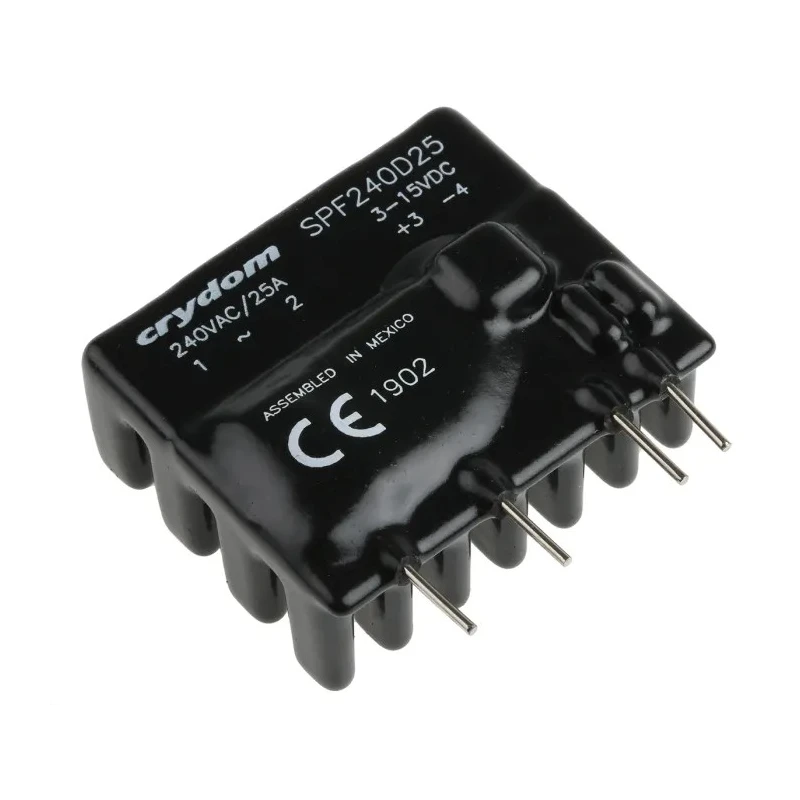

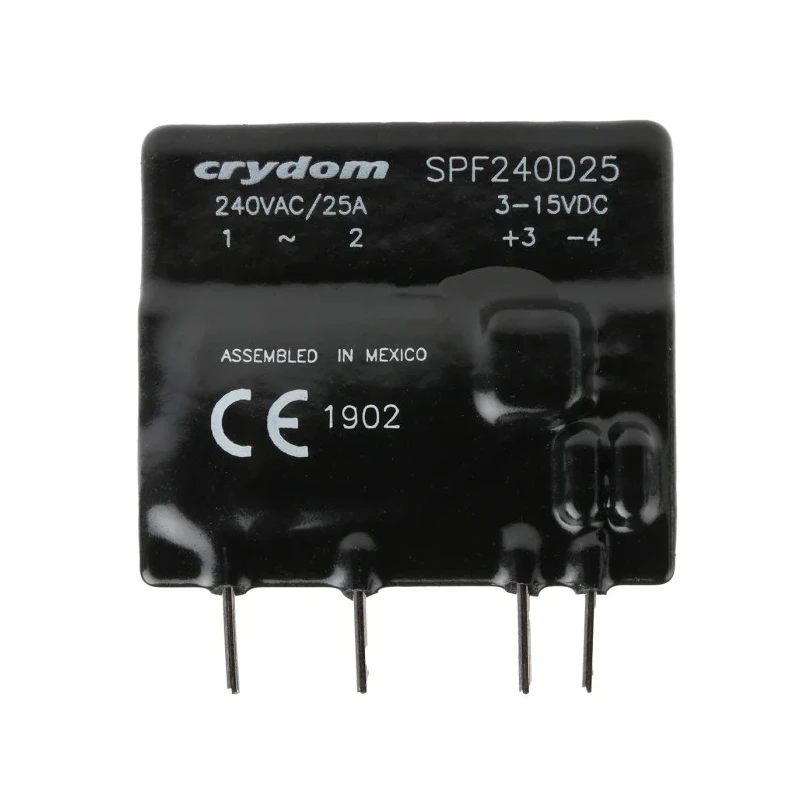

Crydom SPF240D25 is a Solid State Relay from the DRA1 Series, designed for PCB mounting with a rated load current of 25 amperes and maximum load voltage of 280 Vrms. The relay is controlled by a low voltage of 3 to 15 volts AC/DC, making it suitable for energy-efficient automation and control applications.
This relay utilizes zero cross switching technology, allowing for reduced electrical noise and fast switching performance with a turn-on time of half a cycle. Its durable design with no moving parts ensures high reliability and longevity even under demanding industrial conditions.
Operating temperature ranges from -30°C up to +80°C, enabling usage in a wide variety of industrial, automotive, and instrumentation environments. The compact SIP SSR (Single In-line Package Solid State Relay) with screw terminals facilitates easy PCB installation and secure electrical connections.
Additional features include a low off-state leakage current of 0.1 mArms and a capacitance of 8 pF, contributing to efficient operation and minimal interference in sensitive circuits.
With IEC 62314 (E116950) certification, this relay meets relevant industry standards for quality and safety. It is ideal for process control, automation, instrumentation, and automotive manufacturing applications where reliable switching of AC loads is required.
Compact PCB mount design saves space on electronic boards. High load current capacity of 25A suits demanding electrical loads. Wide control voltage range from 3V to 15V AC/DC for flexible control systems. Zero cross function for reduced noise and reliable switching.
Operating temperature suitable for harsh industrial environments. Screw terminal type ensures secure and stable electrical connections. Low off-state leakage current minimizes power consumption during off cycles. Meets IEC 62314 industry standard approvals.
Explore the extensive range of Crydom Solid State Relays at EnvMart for high-performance, reliable electronic switching solutions in industrial automation and control systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this solid state relay is 25 amperes, making it suitable for high power applications.
This model has a control voltage range from 3 to 15 volts AC/DC, allowing for versatile control options.
The relay has a height of 34.3 mm and a length of 40.6 mm, optimizing PCB space usage for installations.
It can operate in temperatures ranging from -30°C to 80°C, suitable for various industrial environments.
This relay is designed for PCB mounting, facilitating easy integration into electronic circuits.
The off-state leakage current is 0.1 mArms, contributing to efficient energy savings during off cycles.
It utilizes a zero cross switching function, which provides smooth turn-on and reduces electrical noise.
Yes, it meets the IEC 62314 (E116950) certification, ensuring it adheres to relevant quality and safety standards.
It features screw terminals, ensuring secure and stable electrical connections during installation.
The capacitance of this relay is 8 pF, which helps minimize interference in sensitive circuits.
This solid state relay is ideal for process control, automation, instrumentation, and automotive manufacturing applications.
The output type of this model is SCR, which is commonly used in solid state relay applications.
