Texas Instruments Buck Converter Through Hole 57V Output Voltage 1A Output Current LM2575HVT-ADJ/NOPB

Texas Instruments LM2575HVT-ADJ/NOPB is a high-performance buck converter designed as a through hole mounted switching regulator with an output voltage of 57V and an output current rating of 1A. It is part of the LM2575 series known for SIMPLE SWITCHER® step-down regulators that provide a balance between ease of use and flexibility for power supply designs.

This device features high efficiency at 77%, thus reducing power loss and heat dissipation, and operates effectively over a temperature range from -40°C to 125°C, making it suitable for industrial and commercial electronic applications.

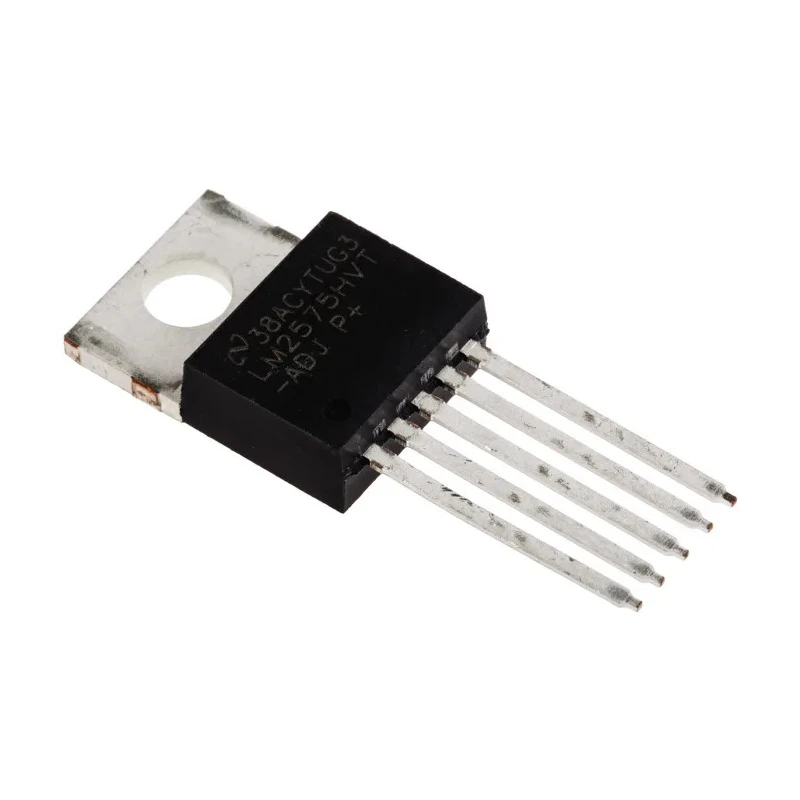

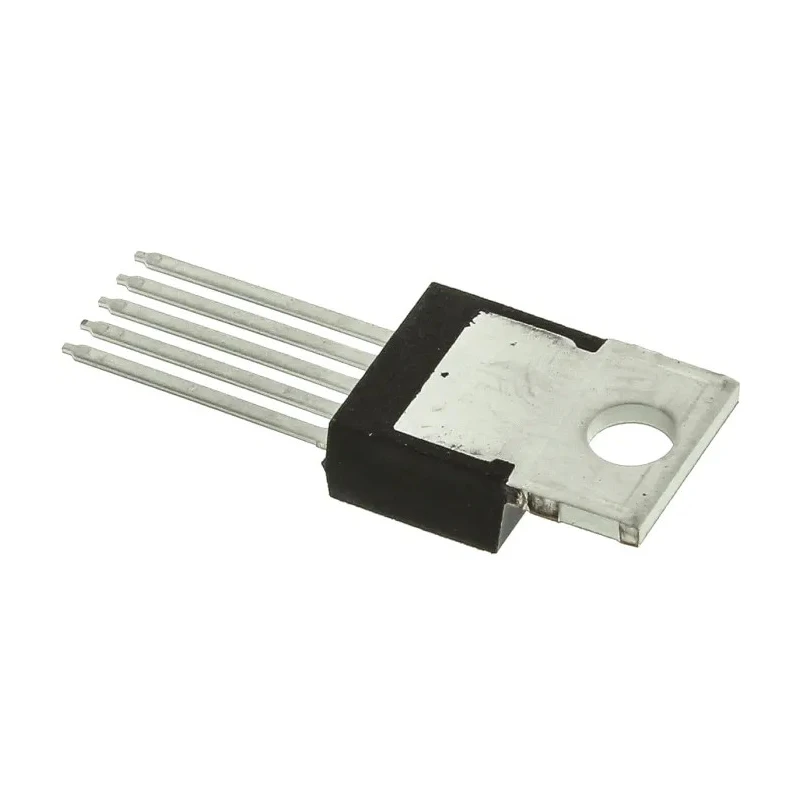

The buck converter is packaged in a TO-220 form factor, which offers excellent thermal conductivity and ease of mounting on printed circuit boards (PCBs). It contains 5 pins and provides a single regulated output, ensuring straightforward implementation in power supply circuits.

Key electrical specifications include a maximum input voltage of 60V and a minimum input voltage of 4V, enabling compatibility with various power sources. The device also generates low output ripple and noise of 150mV, ensuring stable power output necessary for sensitive electronics.

The LM2575HVT-ADJ/NOPB meets JEDEC and RoHS standards, ensuring compliance with industry regulations and environmental friendliness. Its compact size with dimensions of 10.16mm length, 4.7mm width, and 4.83mm depth assists engineers in space-constrained designs.

This buck converter is ideal for use in industrial automation, power management, telecommunications equipment, and embedded systems where efficient voltage regulation and reliable performance are critical.

Designed as a SIMPLE SWITCHER® step-down regulator for wide voltage inputs up to 75V. Efficiency rating of 77% helps reduce power loss and heat generation. TO-220 package provides robust mechanical and thermal performance.

Operates reliably from -40°C to 125°C ambient temperatures. Five pins and one output simplify design integration. Complies with JEDEC and RoHS environmental standards. Low ripple and noise at 150mV ensure stable output voltage.

Wide input voltage range from 4V minimum to 60V maximum. Compact dimensions suitable for space-constrained PCB layouts. Explore more high-quality power management components from Texas Instruments and similar products in our Electronics & Electricals category at EnvMart.
