ERNI SMC Series 26-Contact 2 Row Straight Surface PCB Socket 1.27 mm Pitch Solder 154718 / 154718-E

Free Delivery in India | Lowest Global Shipping Charges

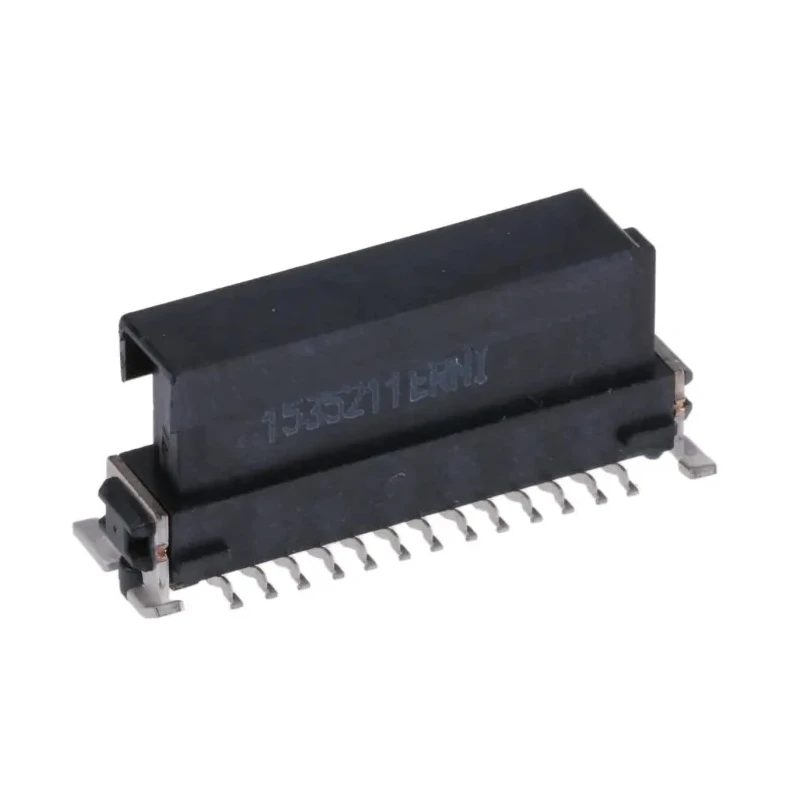

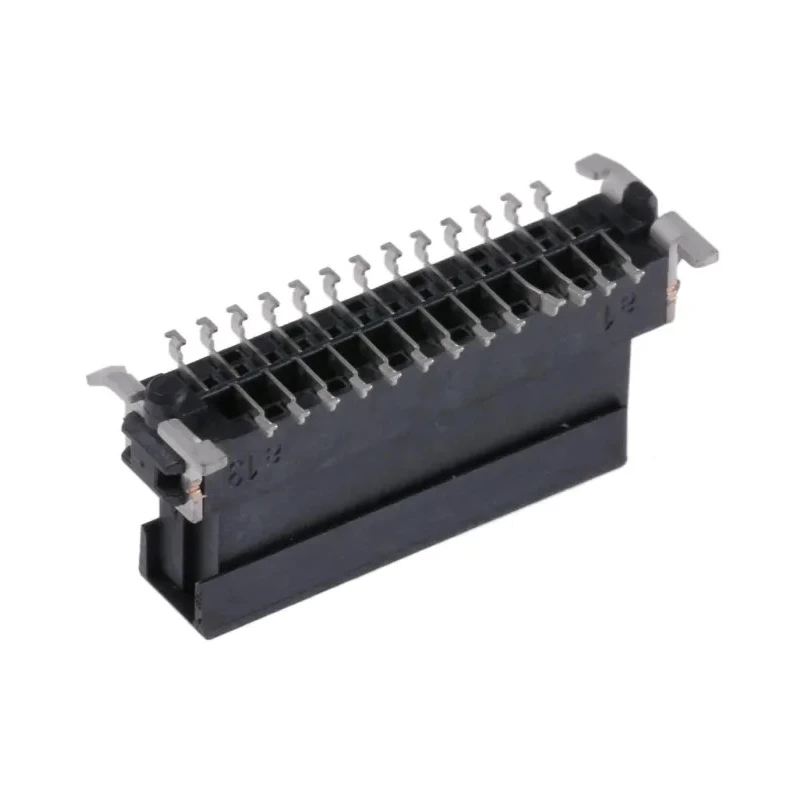

ERNI SMC Series 26-Contact 2 Row Straight Surface PCB Socket 1.27 mm Pitch Solder 154718 / 154718-E

Name: ERNI SMC Series 26-Contact 2 Row Straight Surface PCB Socket 1.27 mm Pitch Solder 154718 / 154718-E
Brand: ERNI
SKU: 194500
Price: 5.53 USD
Availability: InStock



Category PCB Socket Brand ERNI Condition New

Specifications

Country of Origin	Germany
Brand	ERNI
Orientation	Straight
Current	1.7A
Model	154718 / 154718-E
Mount Type	Surface
Housing Material	LCP
Series	SMC
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board Connector
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1.27mm
Standards/Approvals	IEC 60512
Number of Contacts	26
Contact Gender	Female
Stacking Height	9.05mm

Key Features

Compact high density design suitable for space-saving applications.
Ultra reliable dual beam contact design ensures maximum contact reliability.
Supports high-speed signal rates up to 3 Gbit/s for superior electrical performance.
Polarization and locating pegs enable accurate mating and precise PCB placement.
Soldering brackets provide secure PCB retention and robust mechanical stability.
Wide operating temperature range from -55°C to 125°C for versatile use environments.
Supports a range of unmated stacking heights offering design flexibility.
Suitable for fully automated board assembly processes.

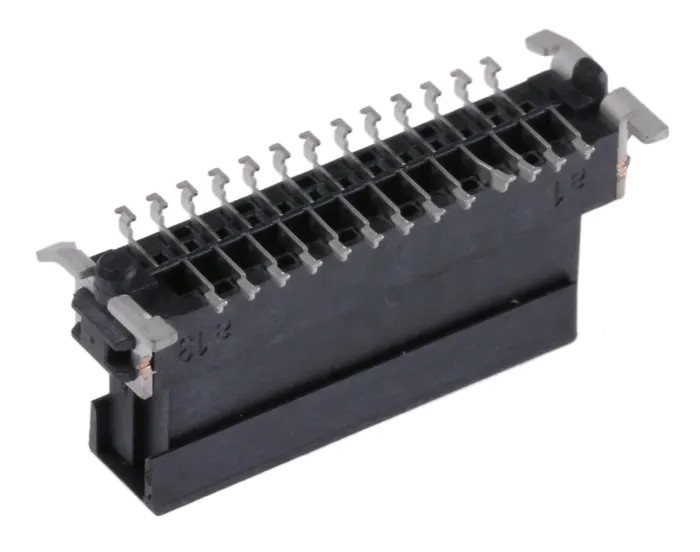

Product Description

ERNI 154718 / 154718-E SMC Series 26-Contact 2 Row Straight Surface PCB Socket with 1.27 mm Pitch and solder termination offers a compact, high-density board-to-board connector solution. Featuring a Housing Material of LCP and a female contact gender, this socket provides ultra reliable dual beam contacts that deliver maximum contact reliability and low resistance for outstanding electrical performance.

The connector supports a current rating of 1.7A and complies with IEC 60512 standards, ensuring consistent quality and functionality. Its high-speed signal capability allows transmission rates of up to 3 Gbit/s, ideal for demanding electronic applications in industrial, laboratory, and manufacturing environments.

The design includes polarization and locating pegs to guarantee accurate mating and precise PCB placement. Soldering brackets secure the PCB retention and absorb mechanical stresses, giving a robust SMT mounting that withstands high shock and vibration.

Operating over a broad temperature range from -55°C to 125°C, this connector is suitable for diverse environments. Its 9.05 mm stacking height and 1.27 mm pitch provide flexibility in board design. This product is ideal for automated assembly lines due to its SMT surface mount technology and board-to-board interface design.

Compact high density design. Ultra reliable dual beam contact design. High-speed signal rates up to 3 Gbit/s. Polarization for accurate mating. Locating pegs for PCB placement. Soldering brackets for secure PCB retention.

Wide operating temperature range. Range of unmated stacking heights. Suitable for fully automated board assembly.

These features make the ERNI SMC Series PCB Socket 154718 / 154718-E a dependable choice for electronics, telecommunications, industrial, and automotive PCB connection needs. Browse our Electronics Components category for more PCB Sockets and connectors suitable for your design and manufacturing requirements.
