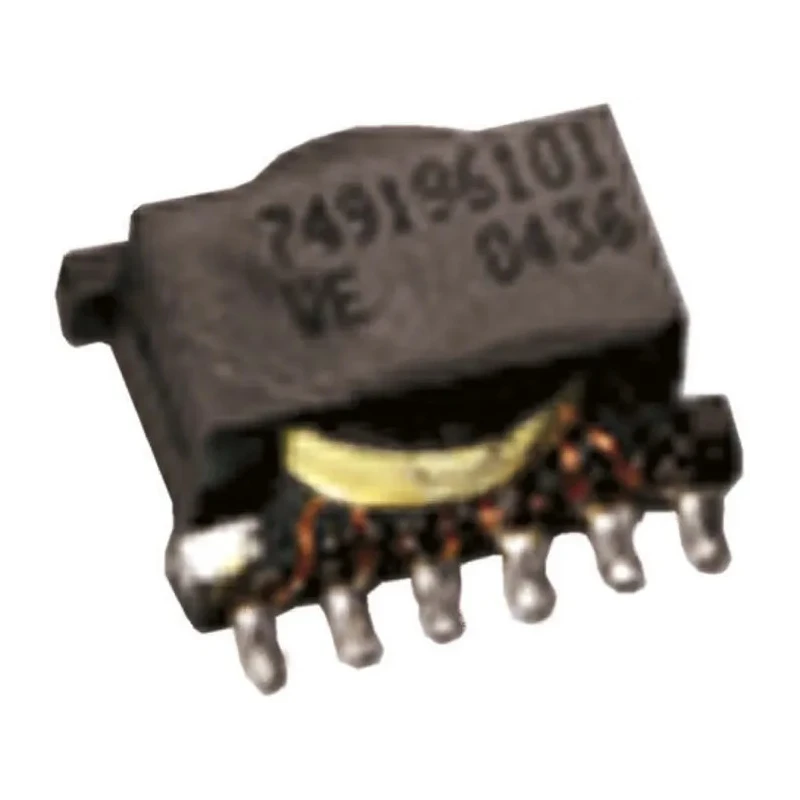

Wurth Elektronik Pulse Transformer Surface Mount 12 Pins 950mA 500V Isolation Voltage 1:1:1:1:1:1 Turns Ratio 749196211
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Operating Temperature | -40°C to +125°C |
| Current | 950mA |
| Length | 16.3mm |
| Depth | 7.4mm |
| Width | 12mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Applications include | flyback, forward, push-pull, step-down, step-up, SEPIC converters |
| Number of Pins | 12 |
| Isolation Voltage | 500V dc |
| Maximum Operating Frequency | 1MHz |
| Leakage Inductance | 0.7μH |
Key Features
- Designed for surface mount with 12 pins for secure installation.
- Low leakage inductance of 0.7μH ensures minimal stray inductance.
- Operates reliably between -40°C to 125°C for broad environmental tolerance.
- Maximum operating frequency of 1MHz suits high-frequency switching applications.
- RoHS compliant ensuring environmentally safe materials and production.
- Suitable for flyback, forward, push-pull, step-down, step-up, and SEPIC converter applications.
- Rated for power levels between 1 and 50 Watts within WE-FLEX transformer series.
Product Description
Wurth Elektronik 749196211 Pulse Transformer Surface Mount is engineered for efficient power supply applications with a precise 1:1:1:1:1:1 turns ratio and a rated current of 950mA. It ensures robust electrical isolation with a 500V DC isolation voltage, making it suitable for sensitive electronic circuits.
This transformer features a surface mount design facilitating compact PCB integration with 12 pins for enhanced stability. The device exhibits low leakage inductance at 0.7μH, minimizing energy losses and electromagnetic interference for clean signal transfer.
Operating temperatures range from -40°C to 125°C, allowing use in diverse environmental conditions including industrial and commercial electronic systems. Its maximum operating frequency of 1MHz enables high-frequency switching power supplies such as flyback, forward, push-pull, step-down, step-up, and SEPIC converters.

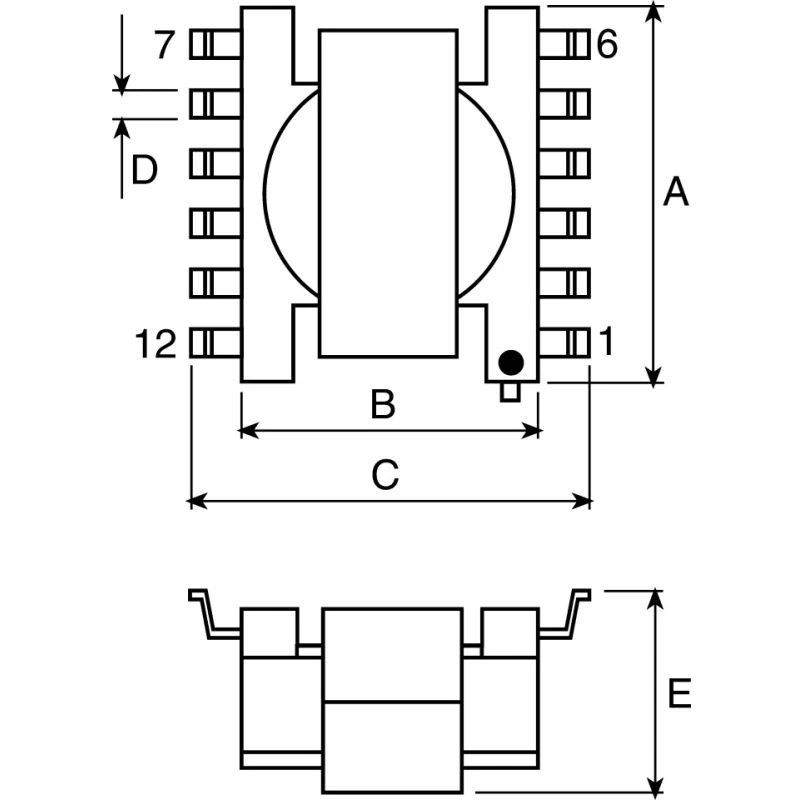

Its compact form factor (16.3mm length, 12mm width, 7.4mm depth) fits easily into space-constrained applications while maintaining performance. The product complies with RoHS directives, ensuring restriction of hazardous substances in manufacturing.
Surface mount design with 12 pins for reliable soldering and mounting. Low leakage inductance rated at 0.7μH reduces stray effects. Wide operating temperature range from -40°C to 125°C. High-frequency operation capability up to 1MHz.
Robust 500V DC isolation voltage for circuit safety. Compatible with multiple power converter topologies. RoHS compliant for environmental and safety standards. Compact dimensions suitable for modern electronics.
This Pulse Transformer is ideal for integration in electronic components within industrial, laboratory, manufacturing, and commercial power supply systems. Its reliable performance supports advanced converter designs and electronic isolation needs.
Explore additional Wurth Elektronik power supply and transformer components on EnvMart for comprehensive solutions in your electronic design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this pulse transformer is 1MHz, making it suitable for high-frequency switching applications.
This model features a robust isolation voltage rating of 500V DC, ensuring safety for sensitive electronic circuits.
The turns ratio of this pulse transformer is 1:1:1:1:1:1, which is designed for efficient power supply applications.
The dimensions of this pulse transformer are 16.3mm in length, 12mm in width, and 7.4mm in depth, making it compact for PCB integration.
This transformer has a low leakage inductance of 0.7μH, which minimizes stray inductance and energy losses.
The operating temperature range for this unit is from -40°C to +125°C, allowing it to function in various environmental conditions.
This transformer features 12 pins, designed for secure surface mount installation.
This model is RoHS compliant, ensuring it meets environmental safety standards regarding hazardous substances.
The rated current for this pulse transformer is 950mA, making it suitable for various power levels within its design specifications.
This transformer utilizes a surface mount design, facilitating compact integration on printed circuit boards (PCBs).
This pulse transformer is manufactured in China, as indicated by its country of origin.
