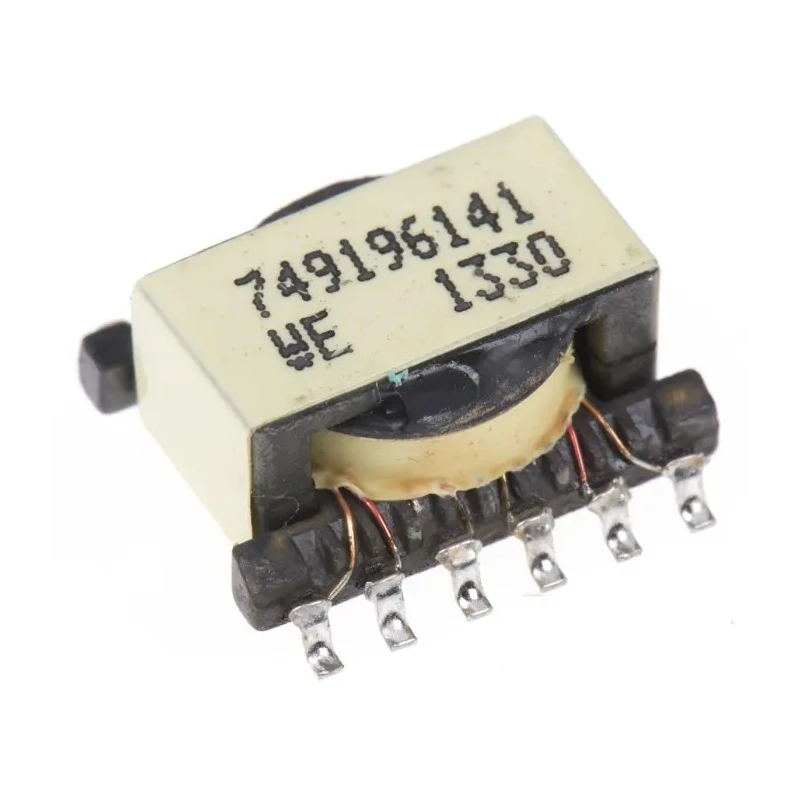

Wurth Elektronik Pulse Transformer 1:1:1:1:1:1 Turns Ratio 0.96Ω Primary Resistance 2A Current 749196141
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Operating Temperature | -40°C to +125°C |
| Current | 2A |
| Length | 12.9mm |
| Depth | 6.2mm |
| Width | 9.2mm |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Applications include | flyback, forward, push-pull, step-down, step-up, SEPIC converters |
| Number of Pins | 6 |
| Isolation Voltage | 500V dc |
| Maximum Operating Frequency | 1MHz |
| Primary DC Resistance | 0.96Ω |
| Secondary DC Resistance | 0.55Ω |
| Leakage Inductance | 0.21μH |
Key Features
- Features low leakage inductance of 0.21 microhenry for efficient signal transfer.
- Six-pin configuration ensures flexible connectivity.
- Rated for isolation voltage of 500 volts DC suitable for industrial and electronic use.
- Operates reliably over a temperature range from -40°C to +125°C.
- Suitable for switching frequencies up to 1 megahertz.
- Compliant with RoHS standards for environmental safety.
- Applications include flyback, forward, push-pull, step-down, step-up, and SEPIC converters.
Product Description
Wurth Elektronik 749196141 Pulse Transformer offers a precise 1:1:1:1:1:1 turns ratio with primary DC resistance of 0.96 ohms, making it ideal for power management circuits requiring up to 2 amperes current capacity.
The transformer features low leakage inductance at 0.21 microhenry and has six electrical pins providing versatile connection options. It is compact in size with dimensions measuring 12.9 mm length, 9.2 mm width, and 6.2 mm depth.
Designed to operate reliably within an industrial temperature range from -40 to +125 degrees Celsius and withstand isolation voltage up to 500 volts DC, this transformer suits robust electronic applications. Its maximum operating frequency reaches 1 megahertz, meeting demands for high efficiency in switching power supplies.
Compliant with RoHS environmental standards, this component emphasizes both performance and safety. Typical applications include flyback, forward, push-pull, step-down, step-up, and SEPIC converter topologies in power supply design.
Low leakage inductance improves signal integrity and transformer efficiency. Compact form factor is suitable for space-constrained PCB layouts. Wide operating temperature range ensures stable performance under harsh conditions.
High isolation voltage rating protects circuitry from electrical faults. Meets RoHS compliance for hazardous substance reduction. Flexible application in various power conversion topologies. Its specifications promote reliable and efficient circuit designs in industrial, electronic, and communications equipment.
