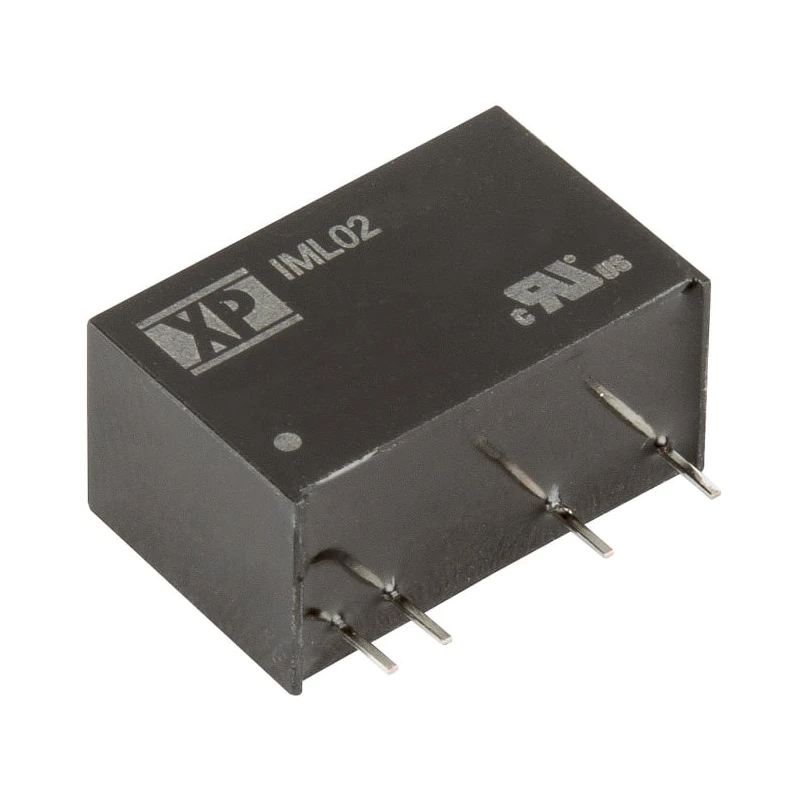

XP Power DC/DC Converter Through Hole SIP7 Package 15V Output 133mA IML02

XP Power IML02 DC/DC Converter delivers a reliable isolated power solution for demanding medical and industrial applications. It operates from an input voltage range of 10.8 V to 13.2 V DC and provides a stable 15 V DC output at 133 mA current, with a maximum output power of 2 W. Housed within a compact SIP7 through-hole package, this converter supports ease of integration on PCBs where footprint space is critical.

The device offers robust protection features including an isolation voltage of 4000 V AC, providing 1 x MOPP at 250 V AC, which meets rigorous safety requirements for medical environments. The wide operating temperature range from -40°C to 85°C allows usage in various environmental conditions without performance degradation.

The IML02 series is known for its exceptional reliability, boasting a mean time between failures (MTBF) of 2,500,000 hours, ensuring long-term operation and minimal maintenance. The output voltage is adjustable by ±5 V, offering flexibility for system design.

The converter's efficiency of 82% helps reduce energy consumption and thermal load on system components. Its small physical dimensions of 19.5 mm length, 9.8 mm width, and 12.5 mm depth make it suitable for compact system designs.

This product is ideal for medical equipment, instrumentation, industrial controls, and power supply applications needing isolated and regulated DC voltages. With a single output and through-hole mounting, it ensures robust mechanical and electrical connections in complex electronic assemblies.

Powered through a SIP7 package for efficient through-hole mounting. Operates between -40°C to 85°C ambient temperature range. Provides 4000 V AC isolation ensuring high safety and reliability. Adjustable output voltage range of ±5 V for flexible use.

High reliability with a Mean Time Between Failures (MTBF) of 2,500,000 hours. Compact dimensions with a length of 19.5mm, width 9.8mm, and depth 12.5mm. Suitable for applications requiring 2W maximum output power. Compliance-ready design with industry standard protection features.

Single output converter supporting input voltages from 10.8V to 13.2V DC. Efficiency rating of 82% to optimize power consumption. Explore more DC/DC Converters from XP Power and find reliable power solutions to meet industrial, medical, and commercial needs here at EnvMart.
