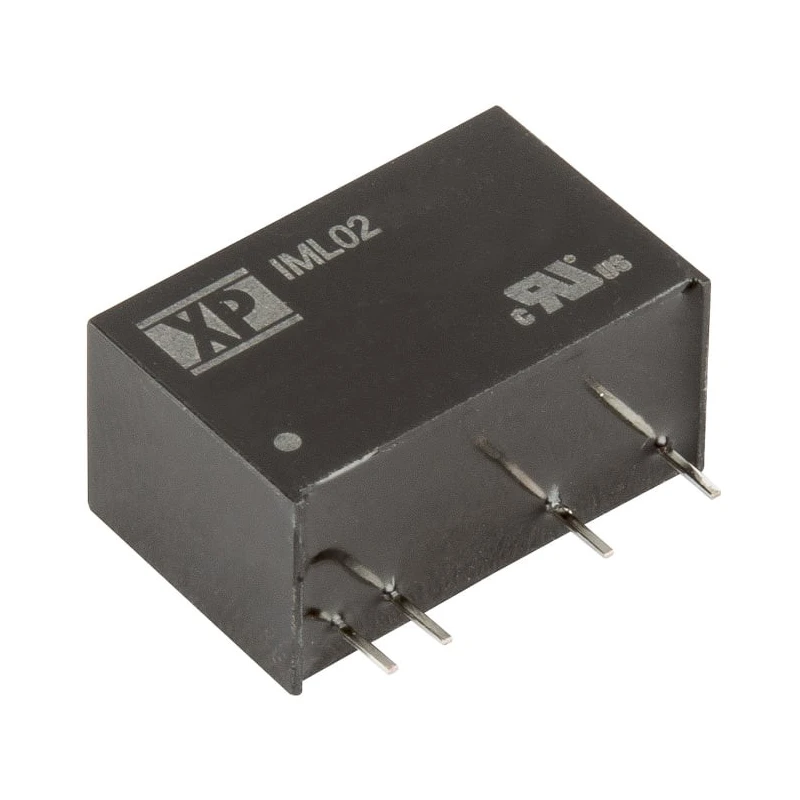

XP Power Isolated SIP7 DC-DC Converter 12V DC Output 167mA 26.4V DC Max Input 21.6V Min Input 2W IML02

XP Power IML02 is an isolated DC-DC converter engineered for medical and industrial applications requiring reliable power in a compact form factor. This series provides a single output of 12V DC with up to 167mA current capability and a maximum output power of 2W. It supports an input voltage range from 21.6V to 26.4V DC ensuring stable operation across variable power sources.

The device is housed within a SIP7 through-hole package measuring 19.5mm in length, 9.8mm in width, and 12.5mm in depth, facilitating easy PCB footprint integration. Notable features include 4000 V AC isolation and 1 x MOPP at 250V AC, which provide industry-standard protection essential for medical electronic equipment.

With an efficiency rating of 80% and a Mean Time Between Failures (MTBF) of 2,500,000 hours, the IML02 series ensures dependable long-term performance. The converter maintains safe and effective operation in temperature environments ranging from -40°C up to 85°C, making it suitable for harsh industrial or laboratory conditions.

This product’s single output can be fine-tuned within a ±5 V voltage adjustment range, offering flexibility for customized circuit requirements. Its through-hole mount type enables sturdy and reliable connection on standard PCBs.

Applications for this DC-DC converter span across industrial automation systems, medical device power supplies, laboratory instruments, and other precision electronic equipment requiring controlled DC voltage conversion with electrical isolation.

Provides a stable 12V DC output current of 167mA. Operates with a wide input voltage range of 21.6V to 26.4V DC. Compact SIP7 through-hole package for easy PCB integration. Maximum output power of 2W with 80% efficiency.

High reliability with Mean Time Between Failures (MTBF) of 2,500,000 hours. Single output with ±5 V output voltage adjustment range. Electrical isolation up to 4000 V AC for safety and noise reduction. Operating temperature range from -40°C to +85°C, supporting harsh environments.

Dimensions: Length 19.5mm, Width 9.8mm, Depth 12.5mm for compact applications. Manufactured in Taiwan, Province Of China.
