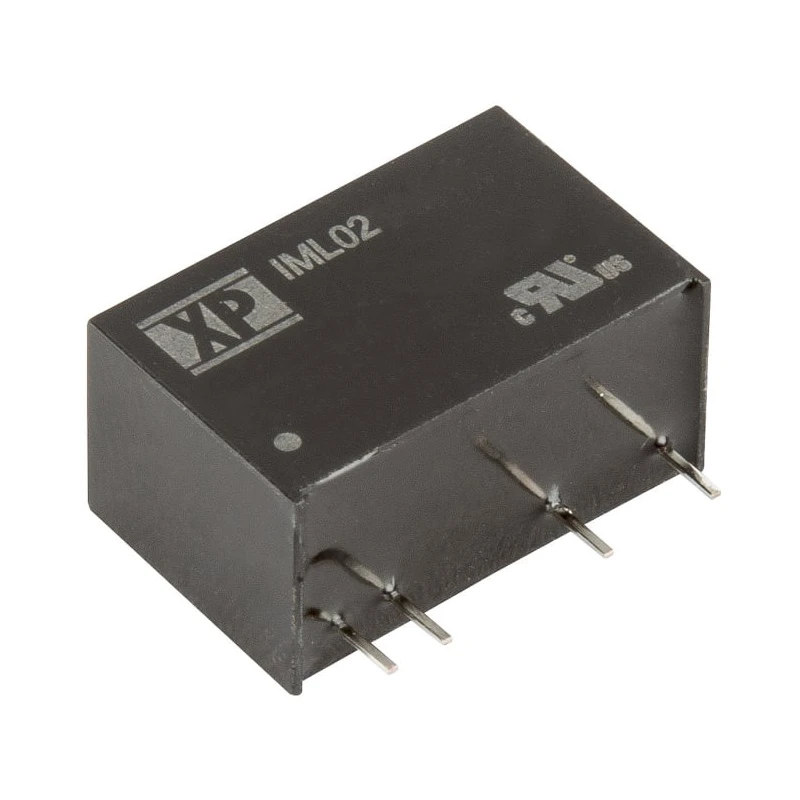

XP Power Isolated DC/DC Converter SIP7 Package, 9V / -9V Output, 111mA, 2W, 4.5-5.5V Input, 4000V AC Isolation IML02

XP Power IML02 DC/DC Converter offers a robust and reliable isolated power supply solution with dual outputs of +9V and -9V at 111mA and 2W output power. Packaged in a SIP7 through-hole unit, it integrates seamlessly into compact electronic designs. Designed for demanding applications, it supports a DC input voltage range from 4.5V to 5.5V and delivers a stable output with ±5V adjustment capability.

This converter features an industry-high isolation voltage of 4000V AC and 1 x MOPP at 250V AC, making it suitable for worldwide medical certifications and applications requiring stringent safety standards. Its operational temperature range of -40°C to +85°C allows use in challenging industrial and medical environments while maintaining reliability and performance.

The SIP7 package with dimensions of 19.5 mm length, 9.8 mm width, and 12.5 mm depth simplifies PCB integration. With seven pins, it supports easy through-hole mounting. The device's mean time between failures (MTBF) of 2,500,000 hours underscores its suitability for critical systems.

Key applications include power supplies for medical devices, industrial control systems, instrumentation, and other isolated power requirements. The converter’s compact size, high isolation, and stable dual output voltages meet the rigorous demands of these sectors.

Dual outputs of +9V and -9V with ±5V adjustability. Input voltage range 4.5V to 5.5V DC for flexible power sources. 4000V AC isolation voltage supports safety-critical applications. SIP7 through-hole package for easy PCB integration.

Operating temperature range from -40°C to 85°C. High MTBF of 2,500,000 hours ensures longevity. 2W maximum output power at 80% efficiency. Ideal for medical and industrial power supply uses. Explore more innovative power supply solutions in the XP Power product category on EnvMart.
