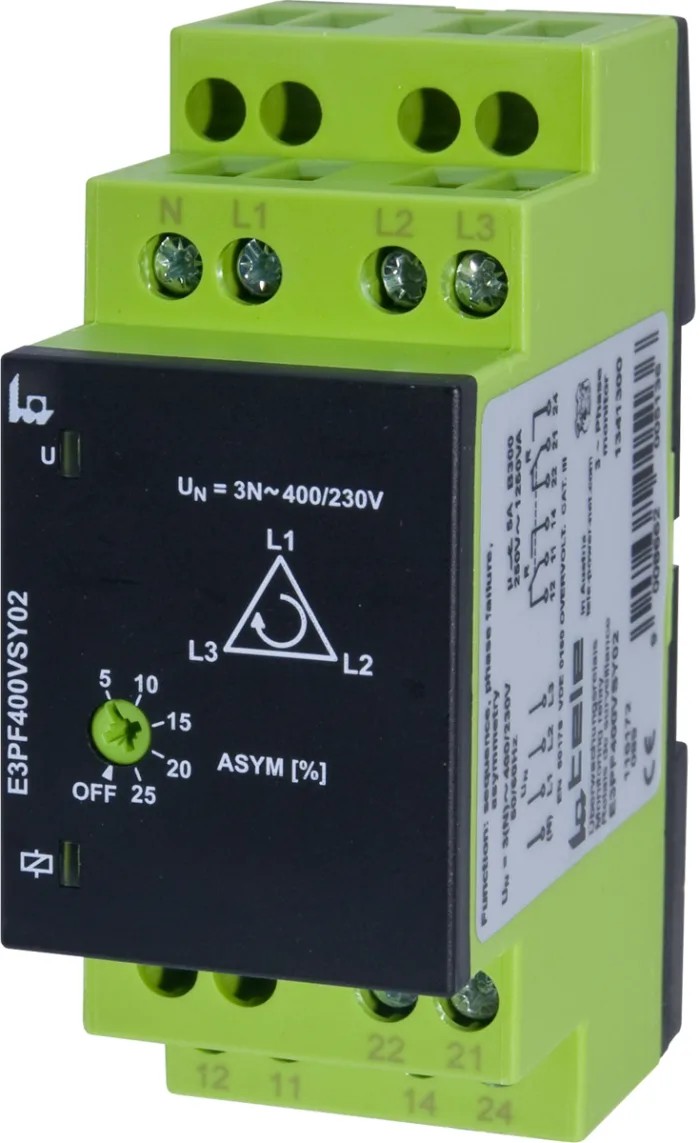

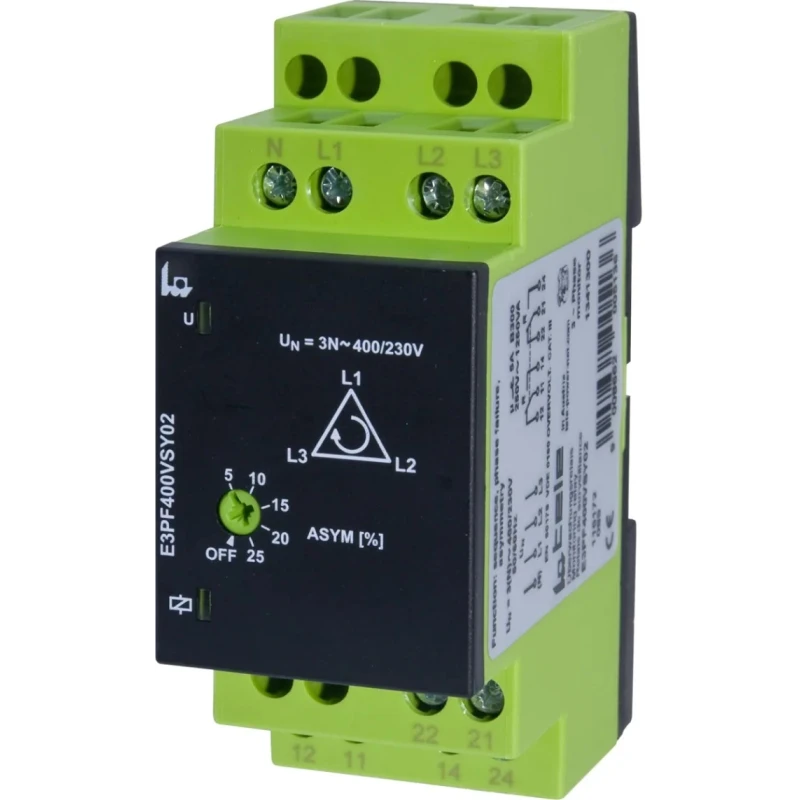

Tele Monitoring Relay 3 Phase 400 V AC Monitor Range DPDT DIN Rail Mount E3PF400VSY02

Free Delivery in India | Lowest Global Shipping Charges

Tele Monitoring Relay 3 Phase 400 V AC Monitor Range DPDT DIN Rail Mount E3PF400VSY02

Name: Tele Monitoring Relay 3 Phase 400 V AC Monitor Range DPDT DIN Rail Mount E3PF400VSY02
Brand: Tele
SKU: 194121
Price: 205.63 USD
Availability: InStock



Category Monitoring Relays Brand Tele Condition New

Specifications

Country of Origin	Austria
Brand	Tele
Height	87mm
Function	Phase Sequence, Phase Failure
Length	35mm
Model	E3PF400VSY02
IP Rating	IP40
Width	35mm
Mount Type	DIN Rail
Series	ENYA
Maximum Operating Temperature	55°C
Contact Configuration	DPDT
Minimum Operating Temperature	+55°C
Terminal type	Screw
Electrical Phase	3
Standards/Approvals	EAC, TSCA, CE, RoHS, REACH, CMRT, WEEE
Switching Voltage	250V ac
Contact Current	5A
Supply AC Voltage	400V ac
Monitoring Voltage Range	400 V ac

Key Features

The relay monitors phase sequence and phase failure to ensure electrical system protection.
Equipped with screw terminals and mounted on DIN rail for easy installation.
Features an IP40 rated self-extinguishing plastic body increasing safety and durability.
Operates within voltage monitoring range of 400 V AC and switching voltage of 250 V AC.
Offers LED indicators for easy status monitoring during operation.
Functions efficiently within operating temperature range from -55°C to +55°C.
Compact dimensions of 87 mm height, 35 mm width, and 35 mm length for space-saving setups.
Designed to comply with EAC, TSCA, CE, RoHS, REACH, CMRT, and WEEE standards.

Product Description

Tele E3PF400VSY02 is a high-performance monitoring relay designed for 3 phase electrical systems with a 400 V AC monitor range. It features a double pole double throw (DPDT) contact configuration and is mounted on a DIN rail, making it ideal for industrial and automation applications requiring reliable phase sequence and phase failure detection.

This relay is part of the ENYA series, offering multifunction monitoring in a compact, easy to use package. The device is housed in a self-extinguishing plastic body with an IP40 rating that provides protection against solid particles, ensuring durability in industrial environments.

The relay operates with a supply AC voltage of 400 V AC and monitors voltage within the 400 V AC range. It switches loads up to 250 V AC with a contact current rating of 5 A. Installation is user-friendly via screw terminals and DIN rail mounting, making it suitable for both new and retrofit electrical assemblies.

It supports operation in temperatures from -55°C to +55°C, maintaining electrical system protection under diverse environmental conditions. The compact size of 87 mm height, 35 mm width, and 35 mm length allows for efficient use of panel space.

Monitors phase sequence and phase failure for electrical system safety. Mounts easily on DIN rails with screw terminal connectors. IP40 rated enclosure with self-extinguishing plastic body enhances protection. LED indicators facilitate quick status checks during operation.

Complies with key international standards including CE and RoHS. Compact dimensions suit space-constrained control panels. Supports industrial, automation, and electrical monitoring applications.

Manufactured in Austria, this new condition relay meets high-quality standards and reliability requirements. Tele’s ENYA series offers dependable solutions for monitoring electrical supply parameters, helping maintain safe and efficient operations in industrial, laboratory, and manufacturing settings.
