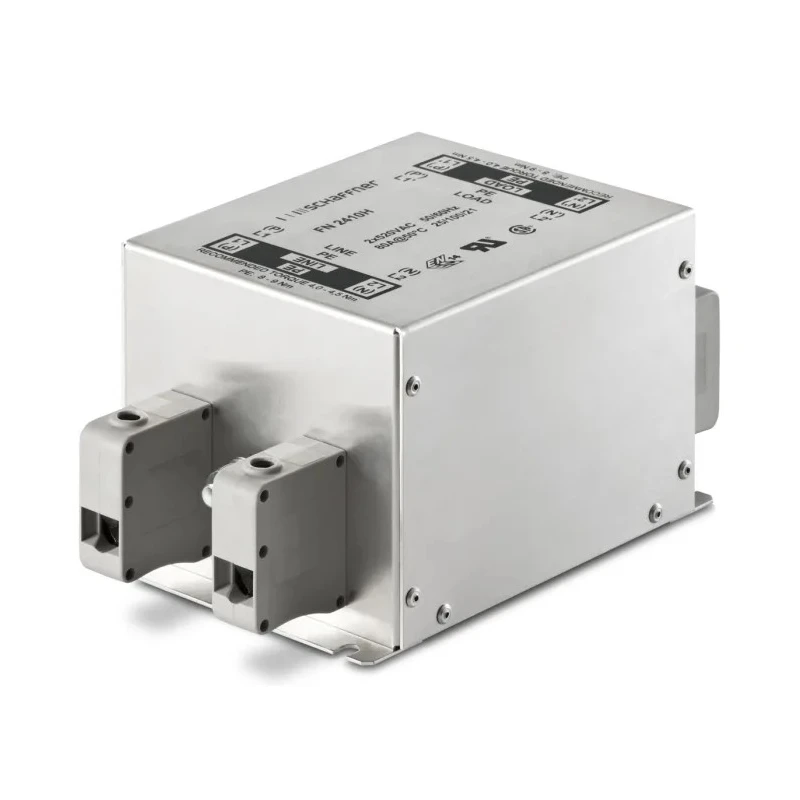

Schaffner Chassis Mount EMC Filter 100A 520V AC 250Hz Terminal Block 2 Phase FN2410H

Free Delivery in India | Lowest Global Shipping Charges

Schaffner Chassis Mount EMC Filter 100A 520V AC 250Hz Terminal Block 2 Phase FN2410H

Name: Schaffner Chassis Mount EMC Filter 100A 520V AC 250Hz Terminal Block 2 Phase FN2410H
Brand: Schaffner
SKU: 193948
Price: 506.74 USD
Availability: InStock



Category Terminal Block Brand Schaffner Condition New

Specifications

Country of Origin	India
Brand	Schaffner
Height	100mm
Length	115mm
Model	FN2410H
Depth	218mm
Mount Type	Chassis Mount
Operating Frequency	250Hz
Series	FN2410H
Maximum Operating Temperature	100°C
Number Of Stages	1
Capacitance	4.7μF
Minimum Operating Temperature	-25°C
Maximum Current	100A
Number of Phases	2
Leakage Current	3.4mA
Maximum Voltage	520V ac
Termination Style	Terminal Block
Power Loss	15.4W

Key Features

High interference level performance for industrial EMC applications.
Chassis mount design with terminal block termination style.
Rated for maximum current up to 100 amperes.
Supports two phases and single stage operation.
Capacitance value of 4.7 microfarads ensures effective filtering.
Wide operating temperature range from -25°C to 100°C.
Low leakage current of 3.4 milliampere enhances energy efficiency.
Power loss rating of 15.4 watts under normal operating conditions.

Product Description

Schaffner FN2410H Chassis Mount EMC Filter with a maximum current rating of 100A and maximum voltage of 520V AC, designed to operate at 250Hz frequency, is ideally suited for high interference industrial environments requiring efficient electromagnetic compatibility (EMC) filtering.

This filter features a robust chassis mount construction with terminal block termination for secure electrical connections across two phases in a three-phase network, supporting single-stage filtering operation. Its capacitance of 4.7μF and low leakage current of 3.4mA ensure optimal noise suppression while minimizing losses.

The device operates reliably within a wide temperature range from -25°C to 100°C and has compact physical dimensions (100mm height, 115mm length, 218mm depth) suitable for various equipment installations. Power loss under typical conditions is 15.4W, reflecting energy efficiency.

Manufactured to meet EN 133 200 standards, this filter also carries UL1283 and CSA22.2 No.8 1986 approvals, making it compliant with rigorous safety and performance criteria. High interference level performance for industrial EMC applications.

Chassis mount design with Terminal Block termination style. Rated maximum current 100A for demanding electrical loads. Two-phase support for integration into three-phase systems. Capacitance of 4.7μF for effective electromagnetic interference filtering.

Wide operating temperature range from -25°C to 100°C. Low leakage current of 3.4mA to reduce power wastage. Compact and robust construction ensures easy mounting in equipment. Power loss rating of 15.4W under normal load conditions.

Compliance with EN 133 200 standards plus UL and CSA approvals.

This EMC filter is widely used in industrial and commercial electrical installations, ensuring compliance with EMC regulations, protecting sensitive equipment from electrical noise, and enhancing power quality. It is suitable for power line filtering applications in manufacturing plants, construction sites, water treatment facilities, and HVAC systems requiring chassis-mounted EMC filters.
