Schaffner Chassis Mount EMC Filter 16 A 520V AC 400Hz Terminal Block 2 Phase FN2410H

Free Delivery in India | Lowest Global Shipping Charges

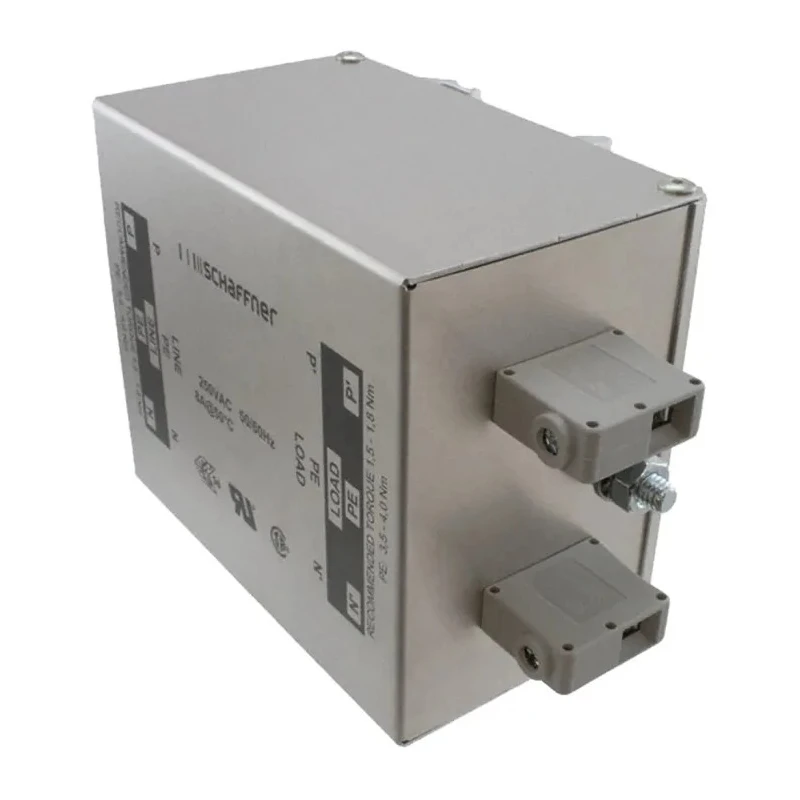

Schaffner Chassis Mount EMC Filter 16 A 520V AC 400Hz Terminal Block 2 Phase FN2410H

Name: Schaffner Chassis Mount EMC Filter 16 A 520V AC 400Hz Terminal Block 2 Phase FN2410H
Brand: Schaffner
SKU: 193943
Price: 148.51 USD
Availability: InStock



Category Terminal Block Brand Schaffner Condition New

Specifications

Country of Origin	India
Brand	Schaffner
Height	62mm
Length	152mm
Model	FN2410H
Depth	93mm
Mount Type	Chassis Mount
Operating Frequency	400Hz
Series	FN2410H
Maximum Operating Temperature	100°C
Number Of Stages	1
Minimum Operating Temperature	-25°C
Maximum Current	16A
Number of Phases	2
Leakage Current	3.4mA
Maximum Voltage	520V ac
Termination Style	Terminal Block
Power Loss	3.5W
Schaffner, FN2410H 8A 520 V ac 400Hz, DIN Rail RFI Filter, Screw 2 PhaseBrand	Schaffner

Key Features

Supports maximum current of 16 A for reliable filtering.
Operates at up to 520V AC voltage suitable for industrial applications.
Designed for chassis mount installation with terminal block termination.
Handles 2 electrical phases with 1 filter stage.
Operates efficiently at 400Hz frequency.
Wide operating temperature range from -25°C to 100°C.
Low leakage current at 3.4mA ensures safety and efficiency.
Power loss of only 3.5W improves energy efficiency.

Product Description

Schaffner FN2410H chassis mount EMC filter rated at 16 A and 520V AC is designed for two-phase industrial electrical filtering, operating at 400Hz frequency. Its terminal block termination and chassis mount style provide secure and convenient installation for applications requiring high interference suppression.

This filter series is targeted at high interference environments, making it suitable for sensitive electronic equipment protection in industrial, manufacturing, and power distribution systems. The device operates with a single filter stage and maintains a low leakage current of 3.4mA, ensuring operational safety.

With compact dimensions of 152mm length, 93mm depth, and 62mm height, it fits efficiently into electrical panels with constrained space. Its wide temperature operating range from -25°C to 100°C supports harsh environmental conditions encountered in industrial settings.

Power loss of only 3.5W demonstrates the filter's energy-efficient design, reducing heat generation and operational costs. The product adheres to EN 133 200 standards and holds UL1283 and CSA22.2 No.8 1986 safety approvals, assuring quality and compliance for industrial use.

Maximum current: 16 A for robust electrical filtering. Operating voltage up to 520V AC for diverse power systems. Chassis mount with Terminal Block for easy integration. Two-phase, single-stage filtering at 400Hz supports specialized applications.

Compact and sturdy construction with specified dimensions. Wide temperature tolerance enhances reliability under varied environments. Low leakage current and minimal power loss optimize performance. Compliant with recognized safety and quality standards.

This Schaffner FN2410H EMC filter is ideal for electronic component manufacturers, power and connector assemblies, and EMI protection applications in industries including industrial tools, manufacturing plants, and electrical distribution systems. For related products and additional Schaffner filters, please explore the Electronics & Electricals section on EnvMart.
