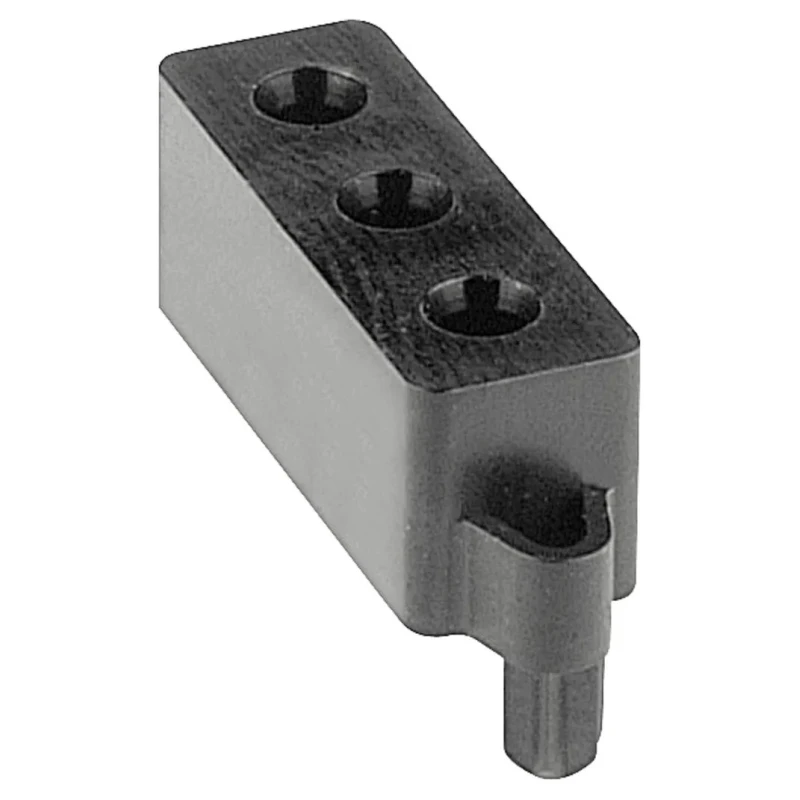

Mentor GmbH PCB 3-Way Straight Flexible LED Light Pipe Holder Clear 1304.1001
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Mentor GmbH |
| Orientation | Straight |
| Length | 21.5mm |
| Number Of Ways | 3 |
| Mount Type | PCB |
| Series | Flexible Light Guide System |
| Outside diameter | 2.2mm |
| Inside Diameter | 1.6mm |
| Ambient Temperature | -40°C to +85°C |
| Standards/Approvals | RoHS |
| Flexible/Rigid | Flexible |
| Light Pipe Shape | Circular |
| Number of Light Pipes | 3 |
| Configuration Rows x Columns | 1 x 3 |
| Holder material | PC black UL94 |
| Light pipe material | PMMA |
Key Features
- The holder is made of PC black UL94 material ensuring durability and safety.
- Supports three circular light pipes with 1.6mm inside diameter and 2.2mm outside diameter.
- The holder mounts straight on the PCB with a length of 21.5mm.
- Designed for flexible light pipes compatible with SMD LEDs and offers easy installation.
- Operates reliably within an ambient temperature range of -40°C to +85°C.
- RoHS compliant ensuring environmental compatibility.
- Part of the Flexible Light Guide System for custom light pipe design.
Product Description
Mentor GmbH 1304.1001 PCB 3-Way Straight Flexible LED Light Pipe Holder Clear is a flexible light guide system component designed for transmitting light efficiently from PCB-mounted SMD LEDs to user interfaces in electronic assemblies.
This mounting support is made of PC black UL94 thermoplastic material offering flame retardance and mechanical robustness. It accommodates three circular flexible light pipes with an inside diameter of 1.6 mm and an outside diameter of 2.2 mm, arranged in a straight 1 x 3 configuration with a total holder length of 21.5 mm. The holders push-fit into the PCB using two pins, ensuring secure attachment.
The flexible light pipes, made of PMMA material, slot into the holder holes at the top to complete a customizable flexible light guide system. This design allows precise light routing with minimal luminance loss and no cross-light interference.
The product is RoHS compliant, indicating adherence to hazardous substance regulations, and is suitable for various industrial and electronic applications, including displays, optoelectronics, and indicator assemblies. It performs reliably over a wide temperature range from -40°C to +85°C.
This system is ideal for advanced PCB lighting solutions requiring flexible light pipe arrangements to enhance user machine interfaces in electronic, industrial, and laboratory equipment.
The holder material is PC black UL94 providing flame retardant properties. Light pipe material is PMMA for optimal light transmission. The holder supports three circular light pipes aligned straight. The length of the holder is 21.5 mm suitable for compact PCB designs.
The product is RoHS compliant ensuring environmental safety standards. Operates effectively within an ambient temperature range from -40°C to +85°C. The holder mounts securely to the PCB with two pins for stability. For more options and compatible components, browse the Electronics Components category on EnvMart.
Explore more products in our PCB Holders category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The length of this PCB holder is 21.5 mm.
It supports light pipes with an inside diameter of 1.6 mm and an outside diameter of 2.2 mm.
This model operates reliably within an ambient temperature range of -40°C to +85°C.
The holder is made from PC black UL94 thermoplastic material, which provides flame retardance and mechanical robustness.
The holder can accommodate three circular light pipes arranged in a straight 1 x 3 configuration.
Yes, this holder is RoHS compliant, indicating adherence to hazardous substance regulations.
The holder mounts straight on the PCB using two pins for secure attachment.
It is suitable for various industrial and electronic applications, including displays, optoelectronics, and indicator assemblies.
The configuration of the light pipes in this holder is 1 x 3, meaning one row and three columns.
The holder supports circular light pipes.
This holder is part of the Flexible Light Guide System series.
The country of origin for this product is Germany.
