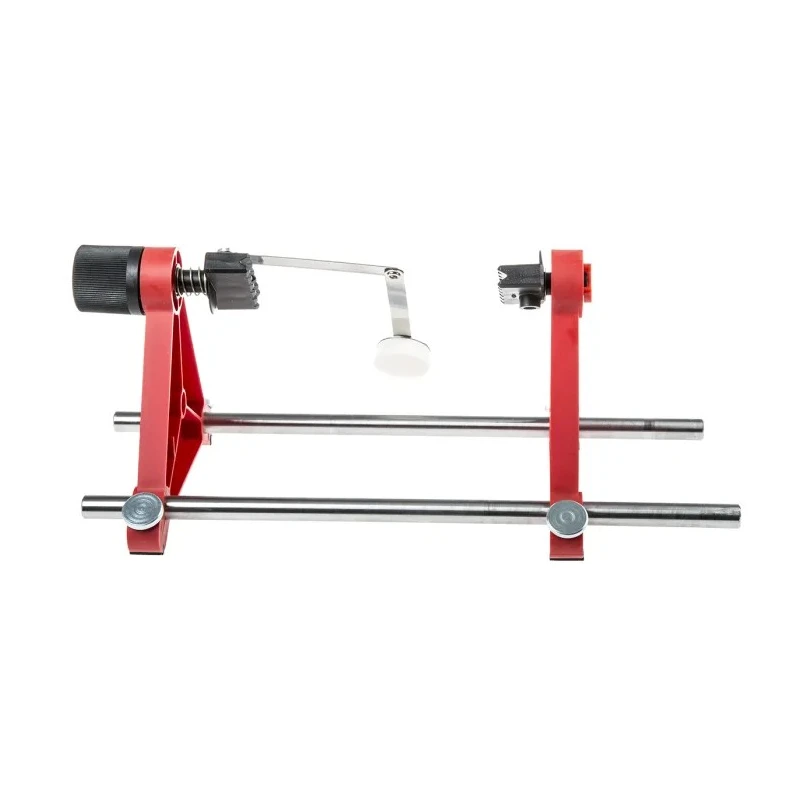

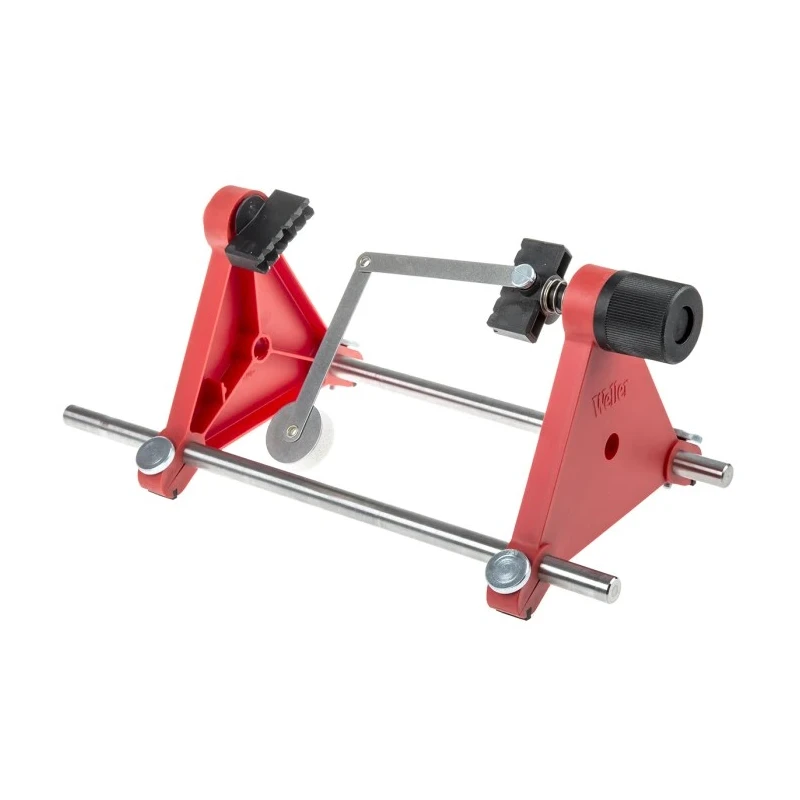

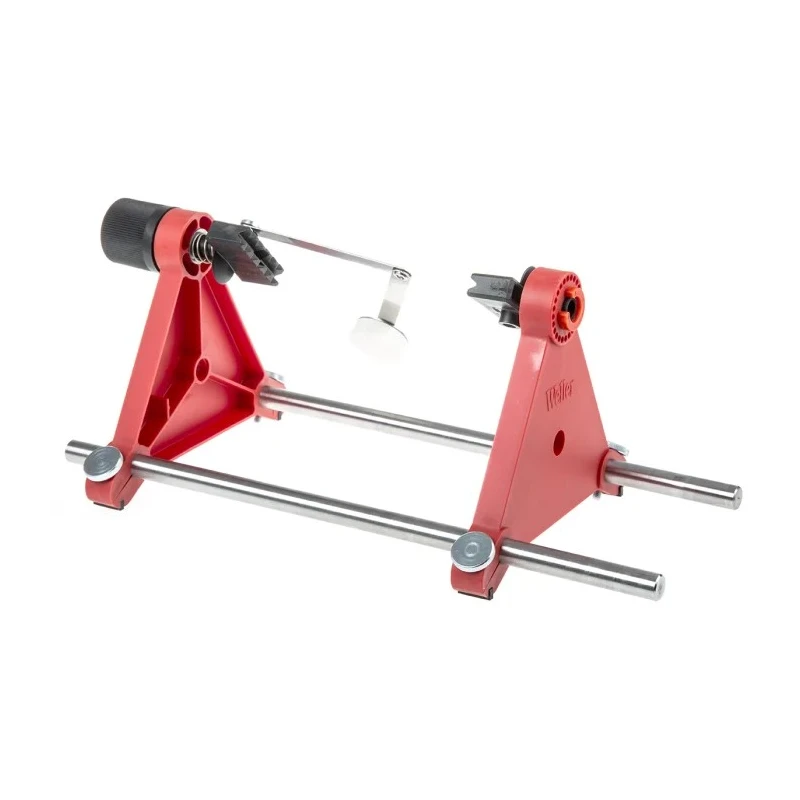

Weller Xcelite 160 x 235 mm PCB Holder with 360° Rotation and 15° Detents T0051502599N

Weller Xcelite T0051502599N PCB Holder is a compact and durable device engineered for holding printed circuit boards with maximum dimensions of 160 x 235 mm securely during soldering and assembly. It features adjustable triangulated support arms and spring-loaded jaws that allow rotation through 360° with precise 15° detents, enabling easy and accurate positioning of PCBs.

The holder incorporates a lever mechanism that securely clamps components in place, facilitating soldering from the reverse side without risk of parts falling out. Its construction combines corrosion-resistant metal parts with technical plastic side supports, enhancing durability and resilience.

Integrated rubber feet ensure stable placement by reducing slipping and lowering the center of gravity, which significantly improves steadiness during use. The adjustable tri-arm design allows it to accommodate varied component sizes and geometries through hex screw clamps.

This PCB holder is well-suited for a range of industrial applications including electronics manufacturing, laboratory prototyping, and quality control tasks requiring secure, hands-free PCB positioning. It is ideal for assembly tasks, soldering processes, and inspection of boards with sizes up to 160 x 235 mm.

Secure board support with spring-loaded jaws allows hands-free soldering. Precision rotational indexing with 15° detents for component access. Corrosion-resistant metal and technical plastic components ensure durability.

Rubber feet provide anti-slip stability and low center of gravity. Lever hold mechanism permits component retention during reverse side soldering. Adjustable arms accommodate varied PCB sizes and component geometries. Designed for reliable use in industrial, laboratory, and assembly environments.
