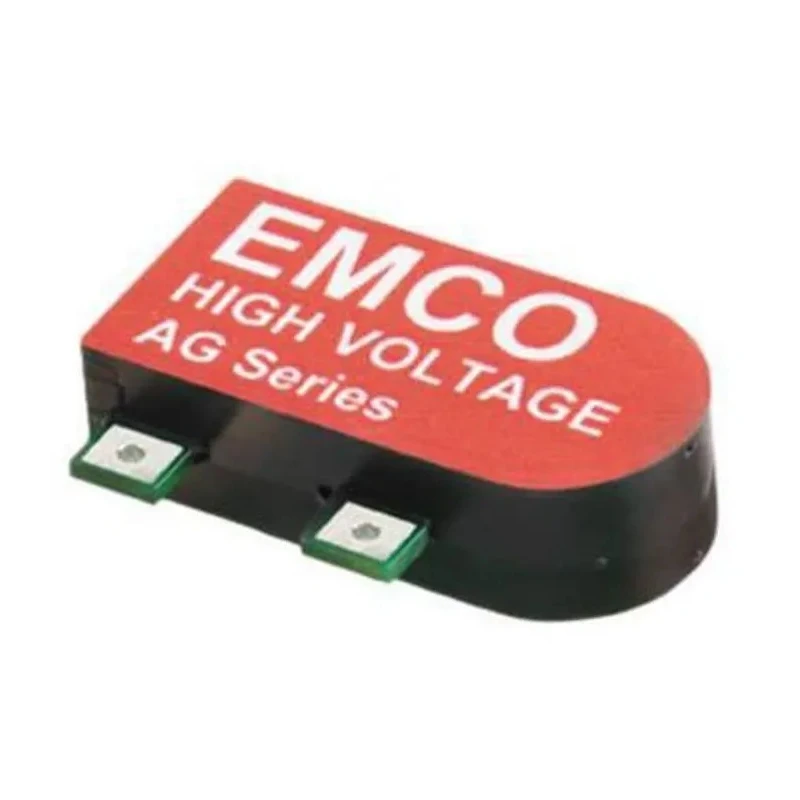

XP Power DC/DC Converter, 400 V DC Output, 3.75 mA Output Current, 5 V DC Input, Surface Mount, 1.5 W Power AGH04P-5

XP Power AGH04P-5 is an ultra-miniature isolated DC to high voltage DC converter designed for applications requiring minimal size and weight, delivering a stable 400 V DC output at 3.75 mA current. It accepts a 5 V DC input voltage and features a surface mount package suitable for high-density PCBs.

This converter provides galvanic isolation with a 500 V rating between input and output, minimizing electrical noise transfer. It operates reliably in temperatures ranging from -25°C to 75°C, making it suitable for various industrial and laboratory environments.

With a peak-to-peak ripple and noise of just 0.75%, the AGH04P-5 ensures clean output voltage critical for sensitive electronic circuits. It is protected against short circuits with a minimum one-minute short circuit tolerance and requires no minimum load to maintain operation stability.

Measuring only 23.37 mm by 17.53 mm by 6.35 mm and weighing 5.7 grams, this surface mount device supports applications such as avalanche photodiodes, photomultiplier tubes, piezo devices, capacitor charging, electrophoresis, mass spectrometry, and sustaining ion pumps. The device is particularly suited for industrial, laboratory, and scientific instrumentation requiring high voltage DC conversion in compact spaces.

Compact surface mount design ideal for space-constrained applications. Galvanic input to output isolation with a 500 V isolation voltage. Low ripple and noise at 0.75% peak-to-peak ensures signal integrity. High reliability with a mean time between failures (MTBF) of 1,862,000 hours.

Input voltage range from 0 V to 5 V DC supports versatile input conditions. Ultra-miniature package measuring 23.37 mm length, 17.53 mm width, and 6.35 mm depth. No minimum load requirement and short circuit protection for enhanced safety.

Applications include avalanche photodiodes, capacitor charging, photomultiplier tubes, piezo devices, and mass spectrometry. Manufactured in the United States with no third-party certifications listed. Explore EnvMart’s comprehensive range of industrial and laboratory DC/DC Converters from leading brands including XP Power for your precision power supply requirements.
