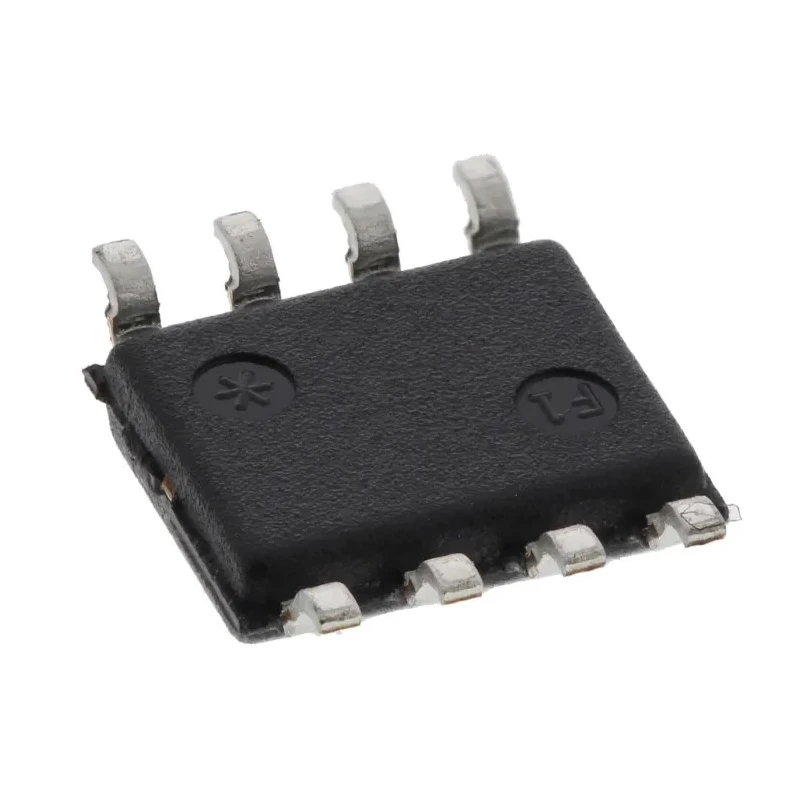

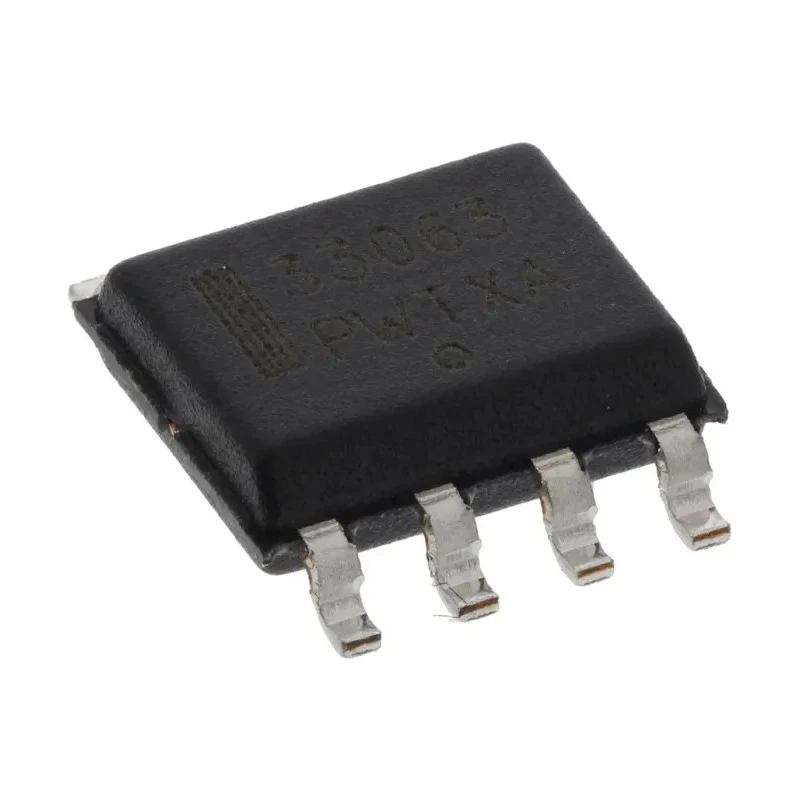

onsemi 5-Channel Boost Buck Buck Boost Switching Regulator 1.5A 40V 100kHz SOIC 8-Pin MC33063ADG

Free Delivery in India | Lowest Global Shipping Charges

onsemi 5-Channel Boost Buck Buck Boost Switching Regulator 1.5A 40V 100kHz SOIC 8-Pin MC33063ADG

Name: onsemi 5-Channel Boost Buck Buck Boost Switching Regulator 1.5A 40V 100kHz SOIC 8-Pin MC33063ADG
Brand: onsemi
SKU: 193516
Price: 0.76 USD
Availability: InStock



Category Switching Regulator Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.5mm
Length	5mm
Model	MC33063ADG
Width	4mm
Mount Type	Surface
Output type	Adjustable
Series	MC33063A
Output Current	1.5A
Maximum Operating Temperature	85°C
Package Type	SOIC
Load Regulation	10 mV, 3 mV, 0.022 V
Minimum Operating Temperature	-40°C
Polarity	Inverting
Regulator Type	Boost, Buck
Switching Frequency	100kHz
Number of outputs	5
Maximum Input Voltage	40V
Output Voltage	40V
Line Regulation	3 mV, 12 mV, 30 mV
Standards/Approvals	RoHS
Minimum Input Voltage	3V
Pin Count	8
Automotive Standard	AEC-Q100

Key Features

This regulator supports boost, buck, and buck-boost operation modes.
It features a switching frequency of 100 kHz for efficient power conversion.
Includes 8-pin SOIC surface-mount package for compact PCB design.
Adjustable output type with inverting polarity for versatile applications.
Meets RoHS compliance and automotive AEC-Q100 standard.
Operates across a wide input voltage range from 3V to 40V.
Designed for robust performance under operating temperatures from -40°C to 85°C.
Line regulation ranges from 3 mV to 30 mV ensuring stable output voltage.

Product Description

onsemi MC33063ADG is a versatile 5-channel boost, buck, and buck-boost switching regulator designed to deliver efficient power management with an output current capacity of 1.5A and a maximum output voltage of 40V. The device operates at a switching frequency of 100 kHz, enabling fast switching and reduced power loss. Packaged in an 8-pin SOIC surface-mount format, it is ideal for compact and space-constrained electronic designs.

Featuring adjustable output and inverting polarity, the MC33063ADG suits various power supply topologies. It complies with RoHS environmental standards and meets the rigorous automotive AEC-Q100 qualification, ensuring reliability in automotive and industrial applications.

This IC operates over a wide input voltage range of 3V to 40V and withstands operating temperatures from -40°C up to 85°C, making it suitable for harsh environments. It provides excellent line regulation (3 mV to 30 mV) and load regulation (10 mV to 0.022 V), maintaining steady voltage under varying conditions.

The compact dimensions (5 mm length × 4 mm width × 1.5 mm height) facilitate integration into modern PCBs. This Switching Regulator finds applications in industrial power supplies, automotive electronics, telecommunications, and embedded systems requiring efficient voltage regulation.

This regulator supports boost, buck, and buck-boost operation modes. It features a switching frequency of 100 kHz for efficient power conversion. Includes 8-pin SOIC surface-mount package for compact PCB design. Adjustable output type with inverting polarity for versatile applications.

Meets RoHS compliance and automotive AEC-Q100 standard. Operates across a wide input voltage range from 3V to 40V. Designed for robust performance under operating temperatures from -40°C to 85°C. Line regulation ranges from 3 mV to 30 mV ensuring stable output voltage.

Load regulation measures between 10 mV and 0.022 V to maintain output consistency. Dielectric dimensions include 5 mm length, 4 mm width, and 1.5 mm height. Explore more products in the Power Management ICs category on EnvMart for advanced electronic components.
