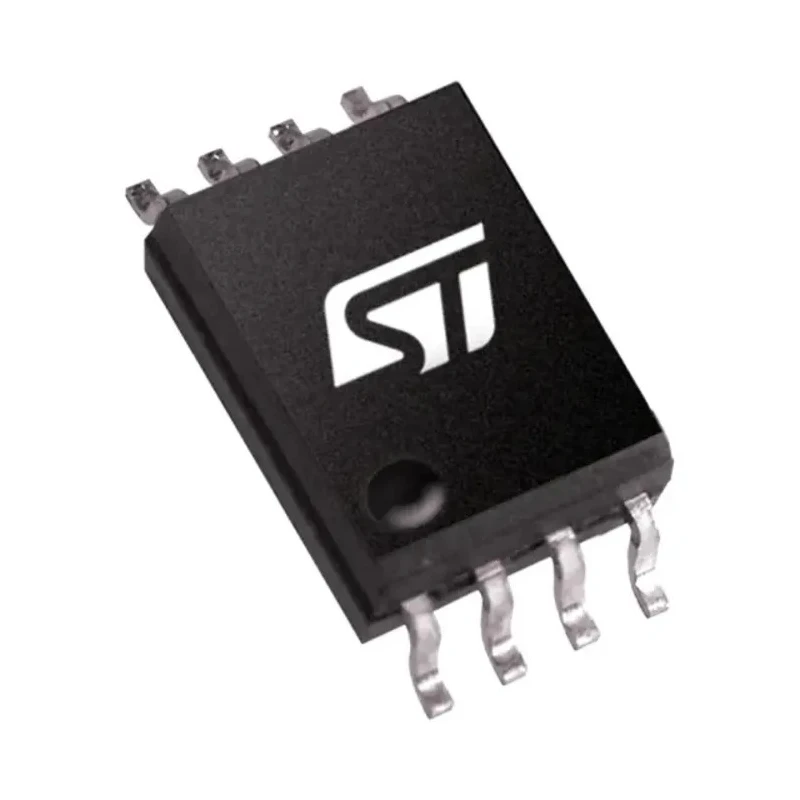

STMicroelectronics 5-Channel Switching Buck Converter 1 A 1.2V to 35V 275 kHz SOIC 8-Pin L5970D013TR

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 5-Channel Switching Buck Converter 1 A 1.2V to 35V 275 kHz SOIC 8-Pin L5970D013TR

Name: STMicroelectronics 5-Channel Switching Buck Converter 1 A 1.2V to 35V 275 kHz SOIC 8-Pin L5970D013TR
Brand: STMicroelectronics
SKU: 219137
Price: 3.1 USD
Availability: InStock



Category Switching Regulator Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1.25mm
Length	5mm
Model	L5970D013TR
Width	4mm
Mount Type	Surface
Output type	Adjustable
Series	L5970
Output Current	1A
Maximum Operating Temperature	150°C
Package Type	SOIC
Load Regulation	15 mV
Minimum Operating Temperature	-40°C
Regulator Type	Switching
Switching Frequency	275kHz
Number of outputs	5
Maximum Input Voltage	36V
Output Voltage	1.2, 35V
Quiescent Current	2.5mA
Line Regulation	10 mV
Standards/Approvals	RoHS
Minimum Input Voltage	4.4V
Pin Count	8
Low dropout operation	100% duty cycle

Key Features

Switching regulator type with fixed switching frequency of 275 kHz.
Internal P-Channel D-MOS transistor minimizes external component size.
Low quiescent current of 2.5 mA ensures efficiency.
Operating input voltage ranges from 4.4V to 36V for versatility.
Compact SOIC 8-pin surface mount package with dimensions 5mm x 4mm x 1.25mm.
Includes built-in protections such as thermal shutdown and current limiting.
Line regulation of 10 mV and load regulation of 15 mV offers stable output.
Suitable for computer-related applications with 5V bus compatibility.

Product Description

STMicroelectronics L5970D013TR is a high-performance 5-channel step-down switching buck converter designed for efficient power regulation in electronic systems. Supporting up to 1A output current, it provides adjustable output voltage from 1.2V to 35V, making it flexible for varied industrial and commercial power supply requirements.

The device incorporates an internal P-Channel D-MOS transistor with a typical Rdson of 250 mΩ, reducing external component size and improving efficiency. With a fixed 275 kHz switching frequency, the L5970D013TR ensures predictable performance and reduced electromagnetic interference.

Its low quiescent current of 2.5 mA aids in maintaining low power consumption during operation. The wide input voltage range from 4.4V to 36V facilitates its use in 5V bus systems and beyond, ideal for computing and embedded applications.

The compact SOIC 8-pin package (5 mm length, 4 mm width, 1.25 mm height) suits surface mounting on PCBs, optimizing space in tight designs. Advanced features include pulse-by-pulse current limiting, feedback disconnection protection, synchronization capabilities, and thermal shutdown, ensuring robust protection and operation longevity.

Switching regulator type with fixed frequency operation at 275 kHz. Output current capacity up to 1A with adjustable voltage from 1.2V to 35V. Internal P-Channel D-MOS transistor minimizes component count. Low quiescent current of 2.5 mA optimizes efficiency.

Wide input voltage range from 4.4V to 36V for versatile usage. Compact surface mount SOIC 8-pin package (5x4x1.25 mm). Comprehensive protection: thermal shutdown, current limiting, feedback disconnection protection. Operating temperature range -40°C to 150°C.

This converter is well suited for industrial electronics, power management in computing devices, embedded systems, and other applications requiring regulated DC output with efficient power conversion. It complies with RoHS standards for environmental safety.

Explore further to find additional power management components and Switching Regulators within the STMicroelectronics product range on EnvMart.
