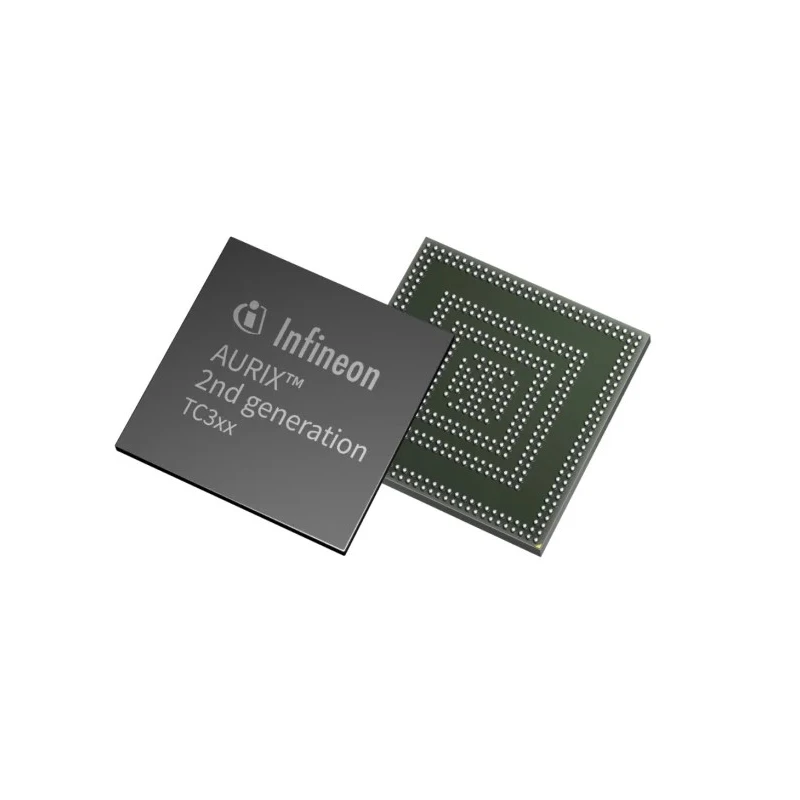

Infineon 32 bit TriCore AURIX Microcontroller 300 MHz, 12.288MB FLASH, 1.5MB RAM, 292-Pin LFBGA TC3E7QX192F300SAAKXUMA1

Infineon TC3E7QX192F300SAAKXUMA1 is a 32 bit TriCore AURIX microcontroller operating at 300 MHz, designed with 12.288MB FLASH program memory and 1.5MB RAM, primarily targeted for automotive and industrial embedded systems requiring high performance and safety.

This microcontroller integrates 4 TriCore cores plus 2 additional checker cores, providing a combined processing performance of 2700 DMIPS. The substantial memory capacity allows for complex application code and data handling.

The device supports extensive industry-standard interfaces including up to 20 CAN FD buses, 4 FlexRay communication channels, 24 Local Interconnect Networks (LIN), 6 Quad SPI (QSPI) interfaces, and a Gigabit Ethernet interface. These robust connectivity options make it well suited for connected gateway and domain control applications in modern vehicles and industrial automation.

Designed to meet the stringent ISO 26262 ASIL-D safety standard and with AUTOSAR 4.2 compliance, this microcontroller supports advanced safety, diagnostics, and security features including EVITA full hardware security module (HSM). The device's operational reliability is further enhanced by support for standby mode operation and a maximum junction temperature rating of 165 degrees Celsius.

The 292-pin LFBGA package with surface mount technology ensures compact, high-density board design, suited for modern electronics manufacturing processes.

This product is ideal for use in industrial controls, automotive embedded systems, safety-critical applications, and any environment requiring robust, high-performance microcontroller solutions.

Powered by 4 TriCore cores running at 300 MHz with 2 additional checker cores delivering 2700 DMIPS. Includes up to 12 MB flash and 1.5 MB SRAM for extensive program and data memory. Supports extensive connectivity with up to 20 CAN FD, 4 FlexRay channels, 24 LINs, 6 QSPI, and high-speed Ethernet.

Compliant with ISO 26262 ASIL-D safety standard and AUTOSAR 4.2 for automotive applications. Equipped with EVITA full HSM for high security, including standby mode controller and 165°C junction temperature rating. Package type is 292-pin LFBGA with surface mount technology for compact PCB integration.
