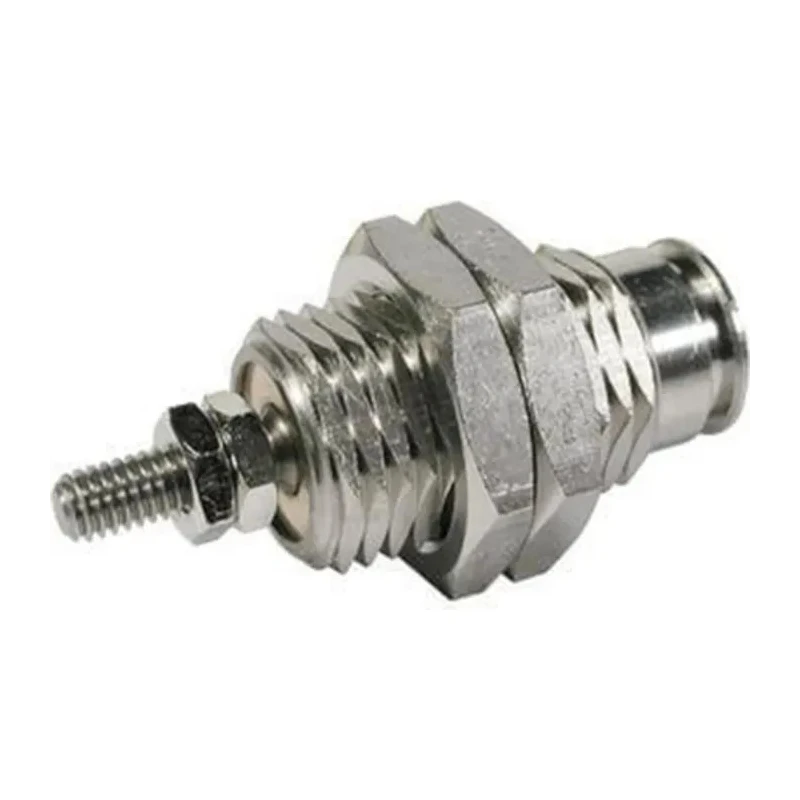

SMC 15 mm Pneumatic Cylinder CJP Series Single Acting Panel Mount Brass Body CJPB10-15H4Z-B

Free Delivery in India | Lowest Global Shipping Charges

SMC 15 mm Pneumatic Cylinder CJP Series Single Acting Panel Mount Brass Body CJPB10-15H4Z-B



Category Pneumatic Cylinder Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Body Material	Brass
Model	CJPB10-15H4Z-B
Mount Type	Panel
Series	CJP
Maximum Operating Temperature	70°C
Stroke Length	15mm
Rod Type	Spring Return
Action Type	Single Acting
Piston Rod Thread Standard	Metric

Key Features

The cylinder features a brass body providing durability and corrosion resistance.
Panel mount style allows for secure and stable installation in pneumatic systems.
Designed for maximum operating temperature up to 70 degrees Celsius.
It operates with a spring return rod mechanism enabling single acting functionality.
The piston rod thread follows the metric standard for compatibility.
Suitable for precise positioning, clamping, and ejecting smaller components in industrial automation.
Internal rubber bumpers provide quieter operation and protection against impact.
Solid state auto-switches can be mounted for position sensing applications.

Product Description

The SMC CJPB10-15H4Z-B 15 mm pneumatic cylinder from the CJP Series is a single acting, spring return pneumatic piston rod cylinder with a panel mount configuration and a robust brass body. Manufactured in Japan, it supports a maximum operating temperature of 70°C, making it reliable for standard industrial environments.

This compact cylinder efficiently generates linear motion through pneumatic force within its piston enclosure. The single acting design utilizes a spring to return the piston rod to its home position, optimizing space and simplifying control systems. Its 15 mm stroke length is ideal for short linear travel requirements.

Panel mount type facilitates easy and secure installation on equipment panels or machinery, supporting stable mounting and alignment. The brass body ensures strength, longevity, and resistance to corrosion, making it suitable for various manufacturing and automation applications.

Additional design features include internal rubber bumpers that help reduce noise and protect the cylinder during operation. The piston rod utilizes a metric-threaded spring return rod type, compatible with common industry standards.

The cylinder supports attaching solid state auto-switches, enhancing its utility in automation feedback and control systems. It is well suited for applications such as positioning, clamping, and ejecting smaller components within pneumatic automation, industrial machinery, and fluid power systems.

The compact size and lightweight design allow it to be used in restricted spaces without compromising performance. Its construction and specifications make it ideal for laboratory automation, manufacturing assembly lines, packaging machinery, and other commercial pneumatic setups.

The product is backed by SMC's reputation for quality pneumatic components and precision engineering. Explore EnvMart's extensive catalog for more Pneumatic Cylinders and automation components to meet diverse industrial needs.
