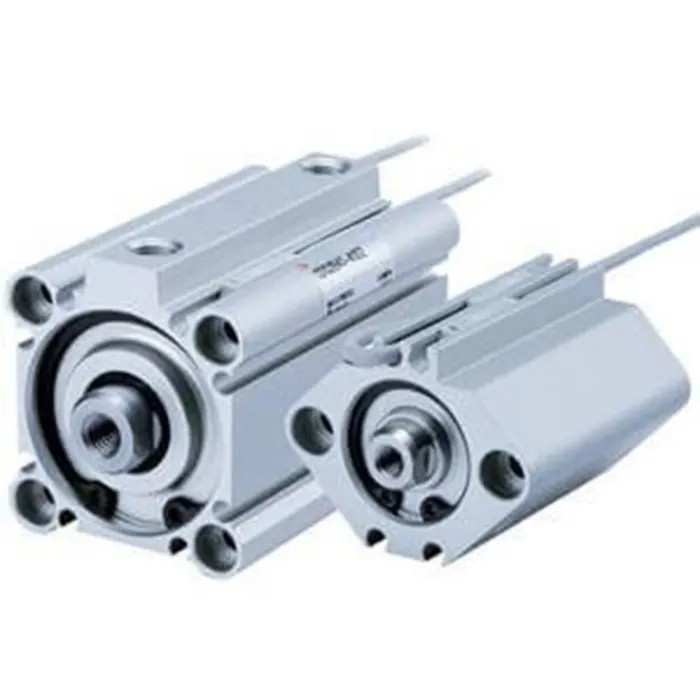

SMC 20 mm Double Acting Pneumatic Cylinder CQ2 Series Aluminium Alloy Body Stroke 20mm CQ2B16-20D

SMC CQ2B16-20D is a 20 mm stroke double acting Pneumatic Cylinder from the CQ2 Series, designed with an aluminium alloy body to provide a lightweight yet durable component suitable for pneumatic control systems.

This cylinder incorporates double acting functionality, enabling force generation and movement in both extension and retraction strokes. The through hole mount type facilitates easy and flexible installation in various industrial machinery setups.

The single rod configuration with a female piston rod thread and metric standard ensures compatibility with standard pneumatic fittings and accessories. Its maximum operating temperature of 70°C allows it to perform reliably in moderately high temperature environments commonly found in manufacturing and automation sectors.

The CQ2 Series cylinders are known for their compact form factor, helping to minimize overall machine weight by 5 - 13% depending on the specific model, contributing to increased productivity and space saving in machinery design.

Typical industrial applications include use in fluid power systems, pneumatic automation equipment, assembly machines, and manufacturing lines requiring precise linear motion and force control.

Designed with double acting functionality for controlled piston movement. Compact aluminium alloy body reduces overall machine weight and improves productivity. Through hole mount type allows versatile installation options.

Maximum operating temperature up to 70°C supports diverse industrial environments. Equipped with a single rod with female piston rod gender and metric thread standard. Maximum piston speed of 500 mm/s for efficient operation.

Engineered for pneumatic applications in manufacturing, automation, and fluid power systems.

Explore other pneumatic piston rod cylinders in the SMC CQ2 Series to find suitable models for various stroke lengths and force requirements across industrial automation applications.
