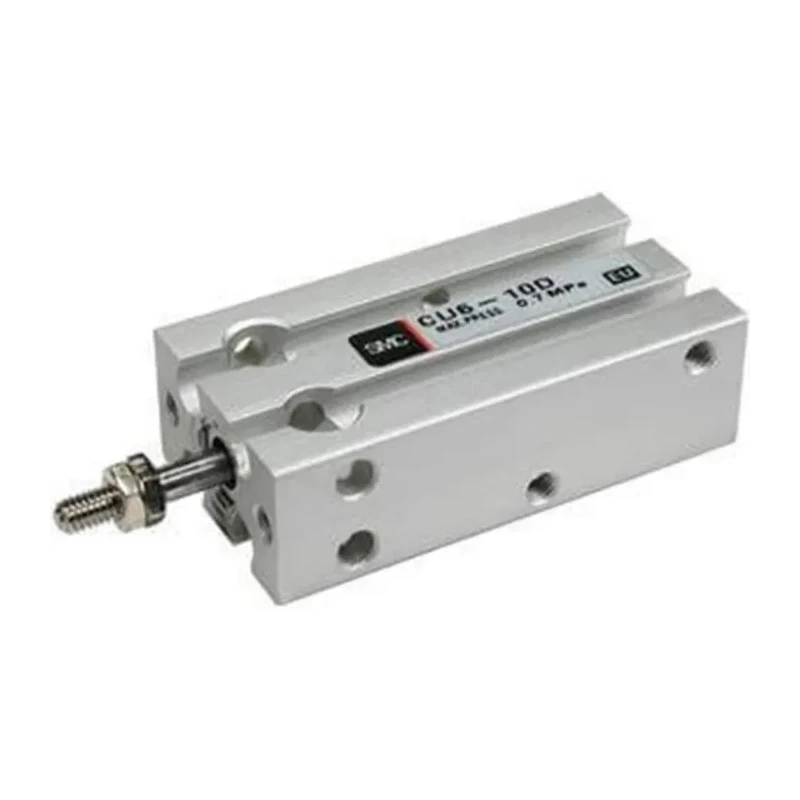

SMC 100 mm Pneumatic Cylinder CDU Series Double Acting Aluminium Alloy Body, Rubber Bumper Cushioning CDU20-100D

Free Delivery in India | Lowest Global Shipping Charges

SMC 100 mm Pneumatic Cylinder CDU Series Double Acting Aluminium Alloy Body, Rubber Bumper Cushioning CDU20-100D



Category Pneumatic Cylinder Brand SMC Condition New

Specifications

Country of Origin	India
Brand	SMC
Body Material	Aluminium Alloy
Model	CDU20-100D
Series	CDU
Maximum Operating Temperature	60°C
Stroke Length	100mm
Rod Type	Single
Action Type	Double Acting
Cushioning Type	Rubber Bumper
Piston Rod Gender	Male
Piston Rod Thread Standard	Metric

Key Features

This cylinder features a rubber bumper cushioning system for smooth operation.
The rectangular design allows precise and direct mounting for space saving.
It includes a single type piston rod with male thread, adhering to metric standards.
The cylinder is capable of a maximum piston speed of 500 mm/s and operates up to 60°C.
The piston contains a magnetic element to enable auto-switch capability.
The product is suitable for a variety of pneumatic automation applications.

Product Description

The SMC CDU20-100D pneumatic cylinder, part of the CDU Series, is a high-quality pneumatic actuator designed for industrial automation and fluid power applications. It features a 100 mm stroke length with double acting functionality, allowing power application during both extension and retraction phases.

The cylinder body is constructed from durable aluminium alloy, providing excellent strength while maintaining a lightweight profile. Rubber bumper cushioning ensures smooth deceleration, protecting the cylinder and connected equipment.

Its rectangular profile facilitates precise and direct mounting, enabling space-saving installations in constrained industrial environments. The piston rod is a single rod design with a male thread, conforming to metric thread standards, ensuring compatibility with a wide range of pneumatic systems.

This model operates effectively under maximum piston speeds up to 500 mm/s and is rated for operating temperatures up to 60°C, suitable for varied manufacturing, material handling, and processing scenarios.

Equipped with a magnetic piston, the CDU20-100D provides auto-switch capability, allowing integration with magnetic sensors for position detection and control. This adds versatility and improved automation control in industrial, construction, and HVAC pneumatic systems.

This product is ideal for use in pneumatic piston rod cylinders in industrial tools and equipment. Applications include manufacturing automation, packaging, material transportation, and assembly line systems. The double acting design increases operational efficiency by using air pressure to both extend and retract the piston rod.

Rubber bumper cushioning reduces wear and noise, enhancing the cylinder's lifespan. Precise mounting design simplifies installation and system integration.

Choose the SMC CDU20-100D for reliable, robust Pneumatic Cylinder performance in demanding industrial conditions. Explore similar pneumatic piston rod cylinders in the Hydraulic & Pneumatic Tools category at EnvMart for comprehensive fluid power solutions.
