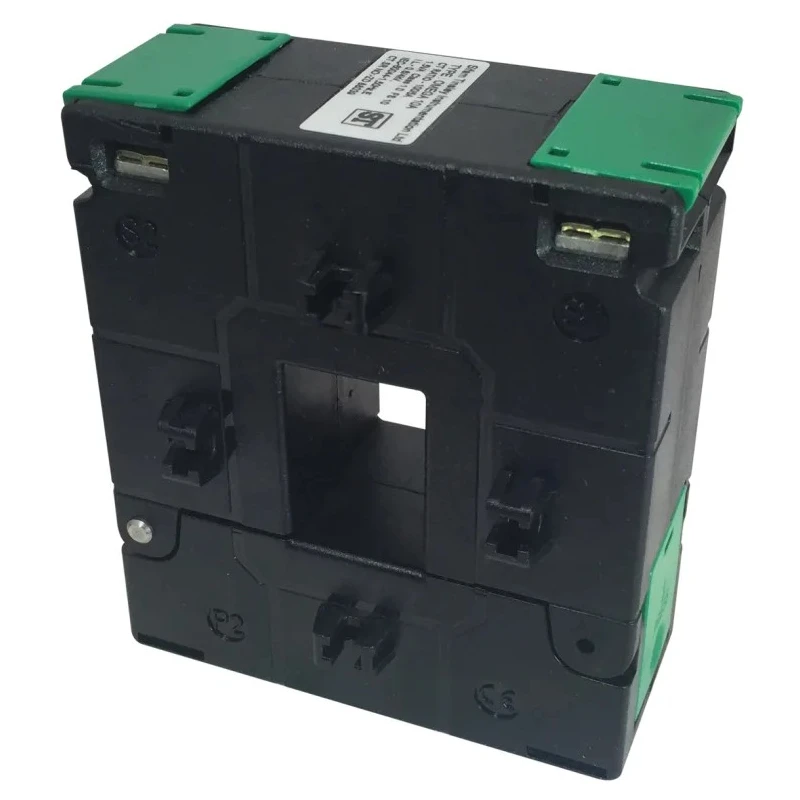

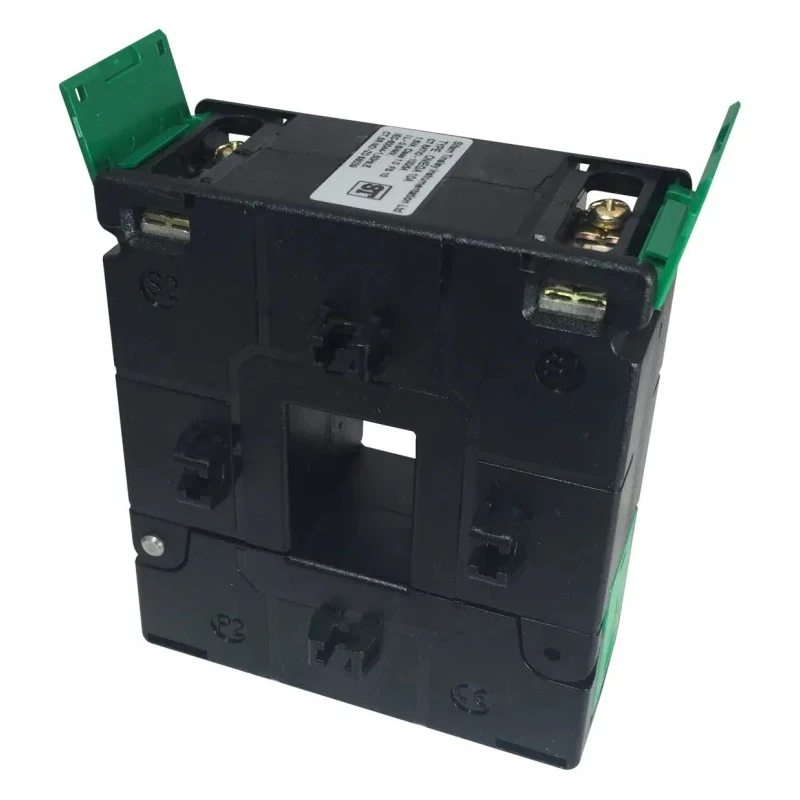

Sifam Tinsley OMEGA Series Current Transformer 250 A 3.7 VA XS01-275071S 000000

Sifam Tinsley XS01-275071S 000000 Current Transformer 250 A 3.7 VA is a precision electrical measurement device in the OMEGA series designed to offer cost-effective and efficient current sensing solutions in industrial and commercial electrical systems.

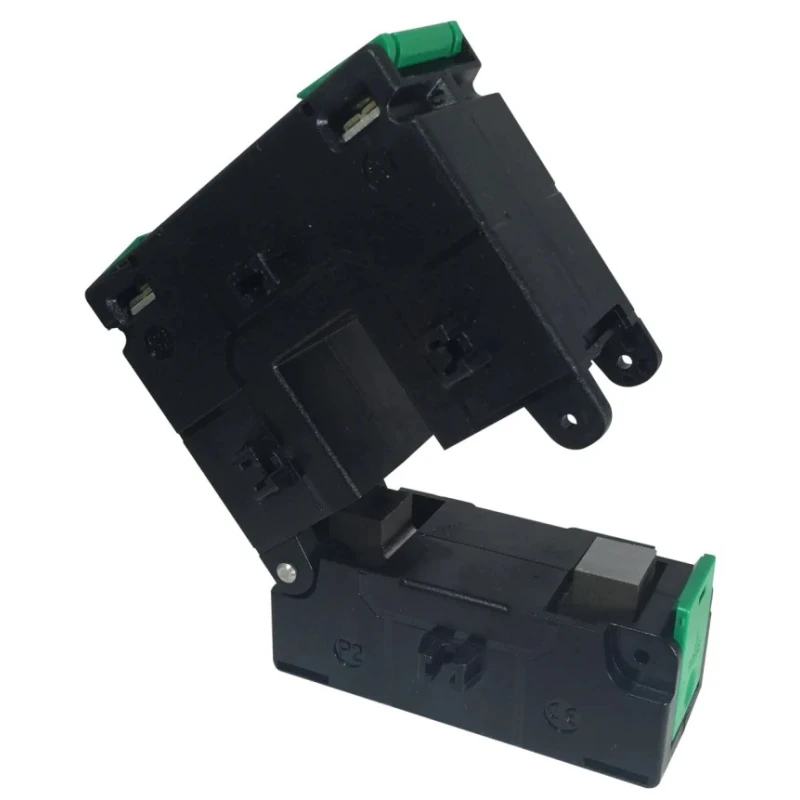

This product features a split core design that enables installation without the need to break the conductor, significantly reducing installation and commissioning time. Its flame retardant enclosure and system voltage rating of 720 V max ensure safe and reliable operation in harsh environments.

The transformer supports ratio ratings spanning from 100/5 A to 3000/5 A, and is available in accuracy classes 0.5, 1, and 2, meeting varied precision requirements. Compliance with international standards such as CE, IEC 61010-2, IEC 61869-1, IEC/EN 60044-1, and UL demonstrates its overall quality and reliability.

Its physical dimensions - length 106 mm, width 93 mm, and depth 40 mm - make it suitable for space-constrained applications. Operating temperature ranges from 20°C to 70°C, supporting diverse environmental conditions.

The plug-in mount type allows for straightforward integration into electrical control panels, distribution systems, and generator sets. Insulation class E provides effective electrical isolation assuring operational safety.

Applications for this Current Transformer include precise current measurement in distribution systems, generator sets, control panels, overload protection, and other electrical control devices, catering to industrial, commercial, and manufacturing environments.

The OMEGA series features a robust flame retardant grade enclosure for safety. System voltage rating is up to 720 V max for versatile application. It offers ratio ratings from 100/5 A to 3000/5 A with an accuracy class of 0.5, 1, or 2.

The split core design allows installation without breaking the conductor, reducing commissioning time. Operating temperature ranges from 20°C minimum to 70°C maximum ensuring durability. Mount type is plug-in for easy integration into control panels and electrical systems.

Complies with international standards including CE, IEC 61010-2, IEC 61869-1, IEC/EN 60044-1, and UL certifications. Insulation class is E, providing reliable electrical isolation performance. Dimensions include length 106 mm, width 93 mm, and depth 40 mm for compact installation.

Ideal for use in distribution systems, generator sets, and overload protection devices. Explore the full range of electrical transformers and current sensors on EnvMart for industrial and commercial applications.
