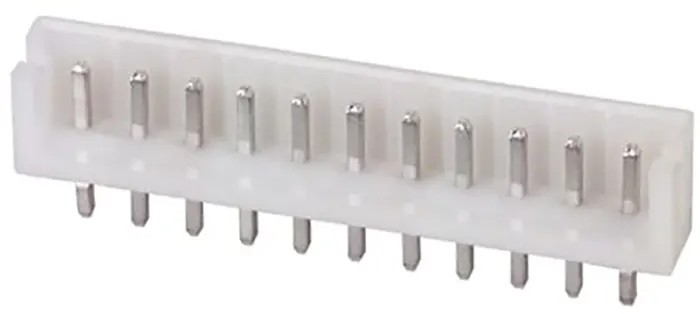

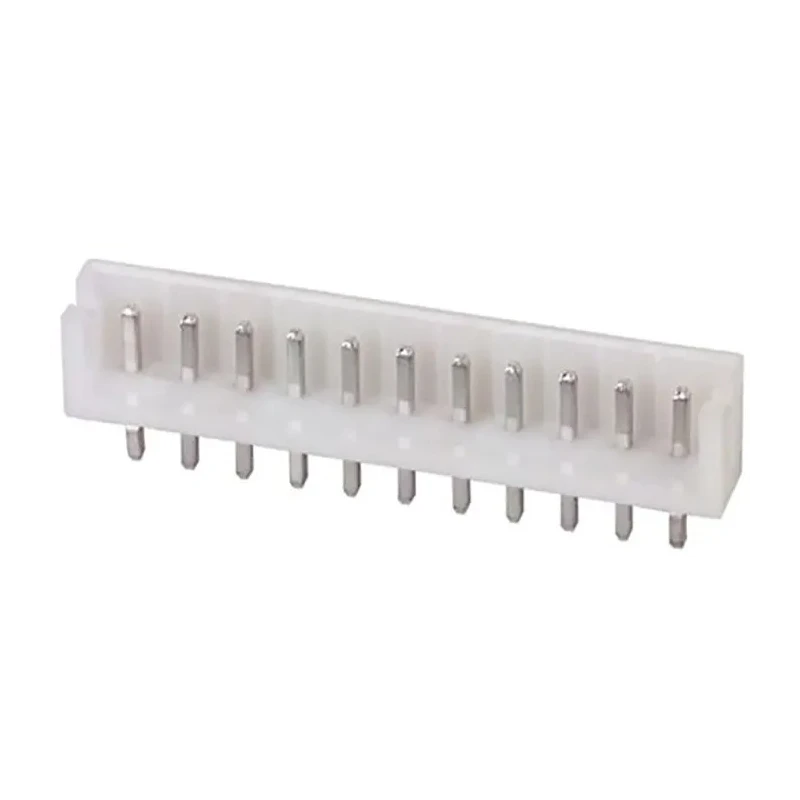

JST EH Series Straight Through Hole PCB Header 11 Contacts 2.5 mm Pitch 1 Row Shrouded B11B-EH-A (LF) (SN)

Free Delivery in India | Lowest Global Shipping Charges

JST EH Series Straight Through Hole PCB Header 11 Contacts 2.5 mm Pitch 1 Row Shrouded B11B-EH-A (LF) (SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	JST
Orientation	Straight
Current	3A
Model	B11B-EH-A (LF) (SN)
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	EH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	11
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3.2mm

Key Features

Compatible with wire-to-board connection systems.
Constructed with polyamide housing for durability.
Male brass contacts with tin plating ensure reliable conductivity.
Through-hole mount type designed for easy solder termination.
Rated for 3A current and 250V voltage operation.
Operating temperature range from -25°C to 85°C.
Integral keying allows correct polarization during mating.
Mating pin length of 3.2 mm provides stable connection.

Product Description

JST B11B-EH-A (LF) (SN) EH Series Straight Through Hole PCB Header is a high-quality electronic component designed for reliable wire-to-board connections in various industrial and manufacturing applications. The product features 11 contacts with a precise 2.5 mm pitch arranged in a single-row shrouded configuration that protects the terminals and prevents incorrect mating.

This PCB header uses polyamide material for housing, providing excellent mechanical strength and heat resistance, suitable for operating temperatures from -25°C up to 85°C. The male contacts are made from brass, plated with tin to ensure optimal electrical conductivity and corrosion resistance.

Designed for through-hole PCB mounting with solder termination, this component supports current ratings up to 3A and voltage ratings up to 250V, making it ideal for power and signal applications in electronic devices.

The EH Series includes integral keying features that guarantee proper polarization and secure mating with compatible crimp socket or IDC socket housings, enhancing assembly reliability and reducing error risks in production lines.

Compatible with wire-to-board connection systems. Constructed with polyamide housing for durability. Male brass contacts with tin plating ensure reliable conductivity. Through-hole mount type designed for easy solder termination.

Rated for 3A current and 250V voltage operation. Operating temperature range from -25°C to 85°C. Integral keying allows correct polarization during mating. Mating pin length of 3.2 mm provides stable connection. Meets UL and CSA certifications with approved file numbers.

This product is extensively used in electronics manufacturing, laboratory instrumentation, and industrial automation, supporting PCB assembly and connector interface requirements. It is ideal for engineers and technicians seeking dependable, standardized connectors for wire-to-board applications.
