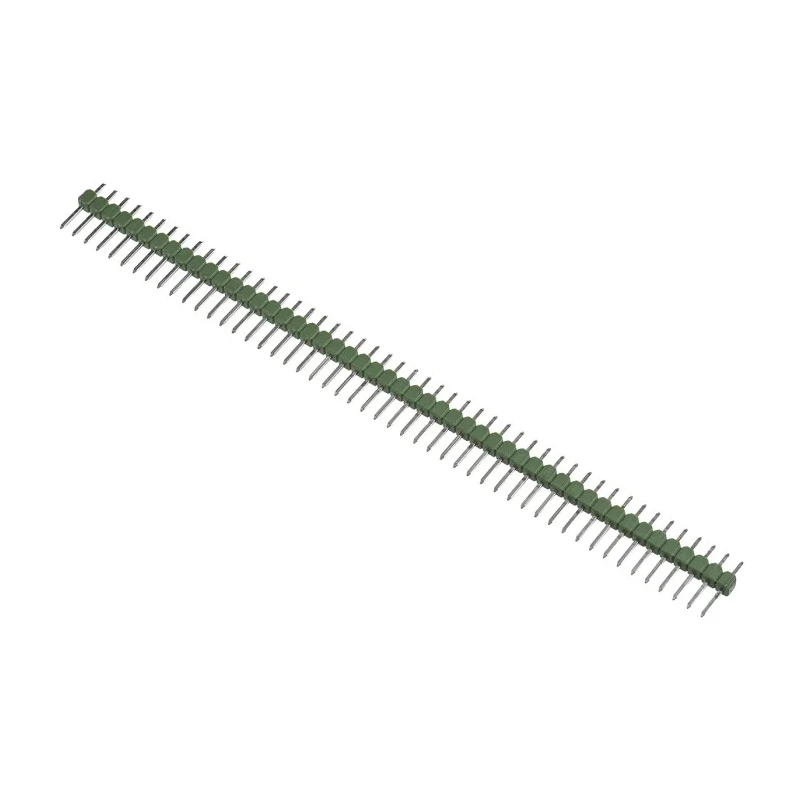

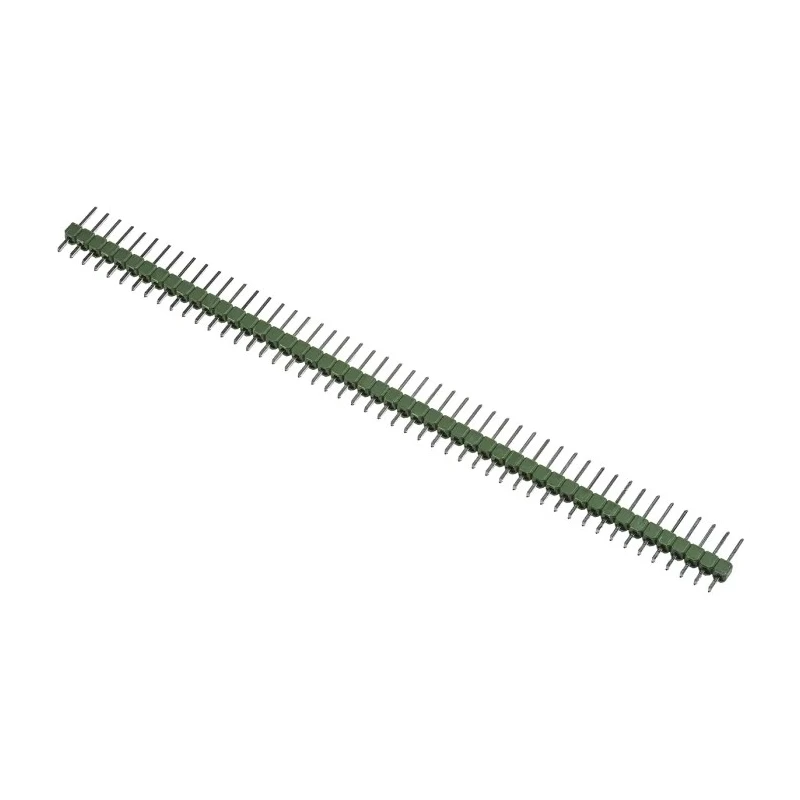

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 50 Contacts, 2.54 mm Pitch, 1 Row 5-826936-0

TE Connectivity 5-826936-0 AMPMODU MOD II Series Straight Through Hole Pin Header is a high reliability connector designed for board-to-board and wire-to-board electrical connections. The product features 50 unshrouded male contacts arranged in a single row with a 2.54 mm pitch, making it suitable for modular interconnect applications in various industry sectors.

This pin header supports an operating voltage of 750 V and a current capacity of 3 A per contact. It includes brass contacts plated with tin to provide corrosion resistance and ensure signal integrity. The housing is made from durable polyester material, offering excellent electrical insulation and mechanical durability.

The connector is designed for through-hole mounting, allowing for robust soldered connections on printed circuit boards. It operates reliably within a temperature range of -55°C to 105°C, suitable for demanding industrial and electronic applications.

Additional product features include a 3.2 mm tail pin length and 5.8 mm mating pin length to provide secure mechanical and electrical contact. The header pins are 0.64 mm square and can be snapped to the desired length, offering flexibility for custom applications. This product is part of the TE Connectivity AMPMODU™ MOD II Series aligned to the industry-standard 2.54 mm pitch range, recognized for quality and versatility.

Compact and unshrouded design for easy mating and soldering. Operates safely at voltages up to 750 V and current of 3A per contact. Durable brass contacts plated with tin for corrosion resistance. Suitable for through-hole mounting on printed circuit boards.

Temperature range from -55°C to 105°C ensuring wide environmental adaptability. Features 3.2 mm tail pin length and 5.8 mm mating pin length for secure connections. Constructed with polyester housing material for electrical insulation and mechanical strength.

Designed to be snapped to desired length if required for customization. Compatible with other components within the AMPMODU™ MOD II Series standard 2.54 mm grid system.

This pin header is highly suited for industrial electronics manufacturing, automotive electronics, telecommunications, and various other applications requiring reliable and compact board connectors. Its standardized pitch and contact configuration facilitate easy integration and replacement in complex assemblies.
