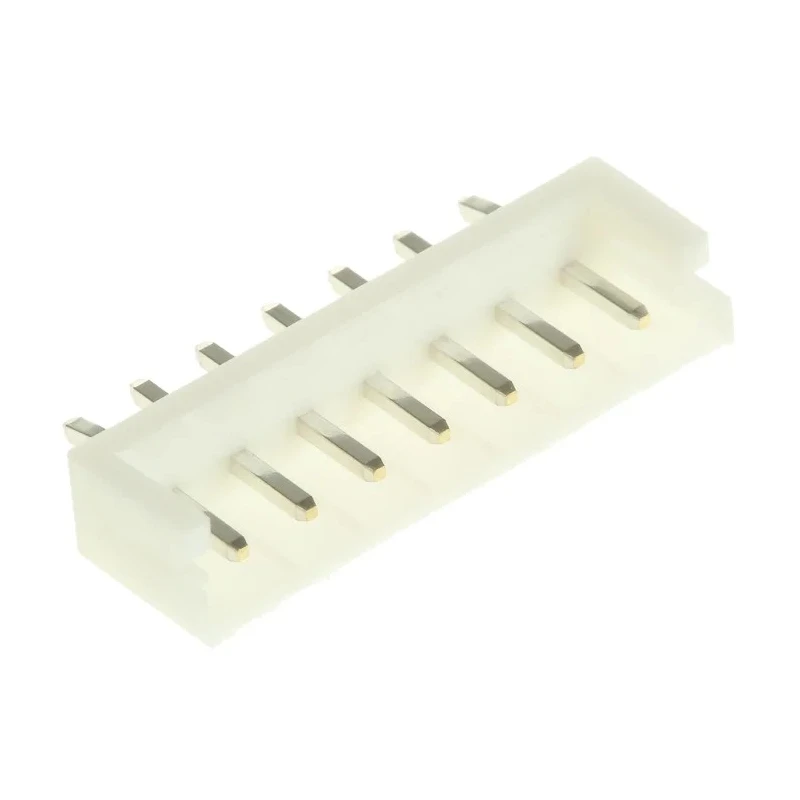

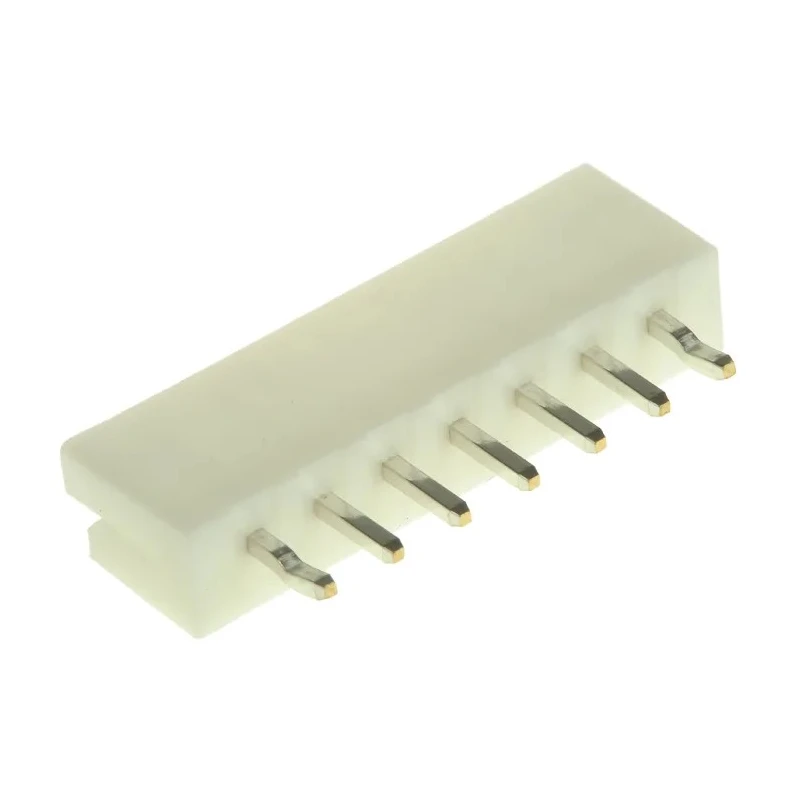

JST EH Series Straight Through Hole PCB Header, 7 Contact(s), 2.5 mm Pitch, 1 Row, Shrouded B7B-EH-A (LF) (SN)

JST B7B-EH-A (LF) (SN) is a PCB header from the JST EH series, featuring 7 straight male contacts arranged in a single row with a 2.5 mm pitch. This through hole mount header utilizes a shrouded polyamide housing engineered for enhanced durability and secure mechanical fitment on printed circuit boards. The brass contacts plated with tin provide reliable electrical connectivity with resistance to corrosion. Rated for 250 V voltage and supporting currents up to 3 A, it is suitable for a broad range of industrial electronics applications requiring robust wire-to-board connections.

Designed for operation in environments ranging from -25°C to 85°C, this component meets various industrial and commercial device needs. Its shrouded structure includes integral keying to prevent incorrect connection polarity, improving assembly accuracy and operational safety. The 3.2 mm pin length offers compatibility with corresponding crimp and IDC socket housings, facilitating flexible mating options in circuit design.

This JST EH Series PCB header finds extensive use in electronic manufacturing, circuit prototyping, and replacement applications in instrumentation, control panels, HVAC systems, and automotive electronics. The through hole mounting ensures a reliable mechanical and electrical bond suitable for both automated production and manual soldering processes.

Includes 7 male contacts for standard PCB interfacing. 2.5 mm pitch ensures compatibility with related JST EH series components. Constructed with polyamide housing for durable insulation. Through hole mount type enables secure PCB attachment.

Contact material is brass with tin plating for corrosion resistance. Designed for a voltage rating of 250 V and current capacity of 3 A. Operating temperature range from -25°C to 85°C for versatile applications. Shrouded design provides integral keying to ensure correct polarisation when mated.

3.2 mm mating pin length for stable connector engagement. Explore more JST electronic connectors and PCB components with EnvMart for your industrial, laboratory, and manufacturing needs.
