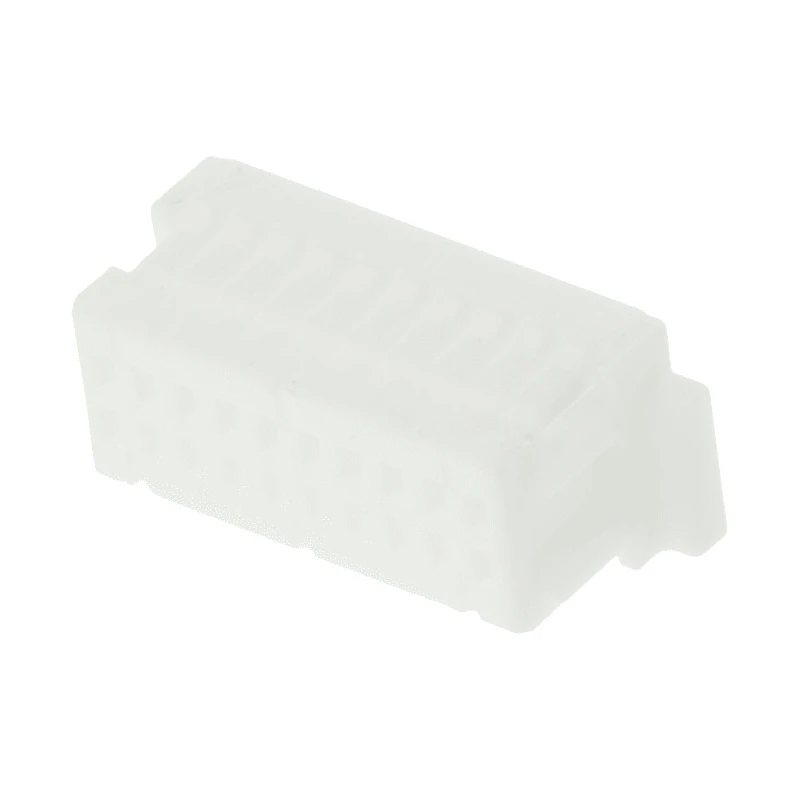

JST SHD Female Connector Housing 1 mm Pitch 20 Way 2 Row Right Angle SHDR-20V-S-B

Free Delivery in India | Lowest Global Shipping Charges

JST SHD Female Connector Housing 1 mm Pitch 20 Way 2 Row Right Angle SHDR-20V-S-B



Category Connector Housing Brand JST Condition New

Specifications

Country of Origin	Korea
Brand	JST
Orientation	Right Angle
Length	13mm
Model	SHDR-20V-S-B
Width	4.9mm
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Series	SHD
Number of Rows	2
Pitch	1mm
For Use With	Crimp Connector, Board-In Connector
Number of Contacts	20
Connector Gender	Female

Key Features

This housing offers a durable polybutylene terephthalate construction ensuring robust performance.
The connector features a compact 13 mm length and 4.9 mm width for space-efficient PCB integration.
Right angle orientation facilitates efficient wire routing in tight spaces.
The SHD series design includes protrusions to assist in connector disengagement without pulling wires.
Designed primarily for wire-to-board connections with reliable 1.0 mm pitch spacing.
Ideal for electronics manufacturing, power connectors, and industrial automation applications.
Manufactured in the Republic of Korea adhering to quality standards.
Compatible with 1.0 mm SHD series contacts and headers for full system integration.

Product Description

JST SHDR-20V-S-B is a female connector housing engineered for 1 mm pitch wire-to-board connections featuring 20 contacts arranged in 2 rows with a right angle orientation. This connector housing is constructed from polybutylene terephthalate, offering mechanical strength and electrical insulation suitable for demanding industrial and electronic assembly environments.

The compact design with dimensions measuring 13 mm in length and 4.9 mm in width makes it an excellent choice for integrating into space constrained printed circuit boards. The right angle mount type aids in effective cable management and routing on PCBs, vital for modern electronics manufacturing.

SHDR-20V-S-B belongs to the SHD series known for its secure retention mechanism with protrusions improving disengagement efficiency without stressing wires. This housing supports crimp connectors and board-in connectors, providing flexibility for various assembly needs.

Applications of this connector housing include electronic components assembly, power connectors integration, and use across multiple sectors like industrial automation, communications, and instrumentation.

This housing offers a durable polybutylene terephthalate construction ensuring robust performance. The connector features a compact 13 mm length and 4.9 mm width for space-efficient PCB integration. Right angle orientation facilitates efficient wire routing in tight spaces.

The SHD series design includes protrusions to assist in connector disengagement without pulling wires. Designed primarily for wire-to-board connections with reliable 1.0 mm pitch spacing. Ideal for electronics manufacturing, power connectors, and industrial automation applications.

Manufactured in the Republic of Korea adhering to quality standards. Compatible with 1.0 mm SHD series contacts and headers for full system integration.

Choose JST SHDR-20V-S-B connector housing for reliable, space-saving, and efficient wire-to-board connectivity solutions. Enhance your electronic assemblies with this precision Connector Housing available at EnvMart.
