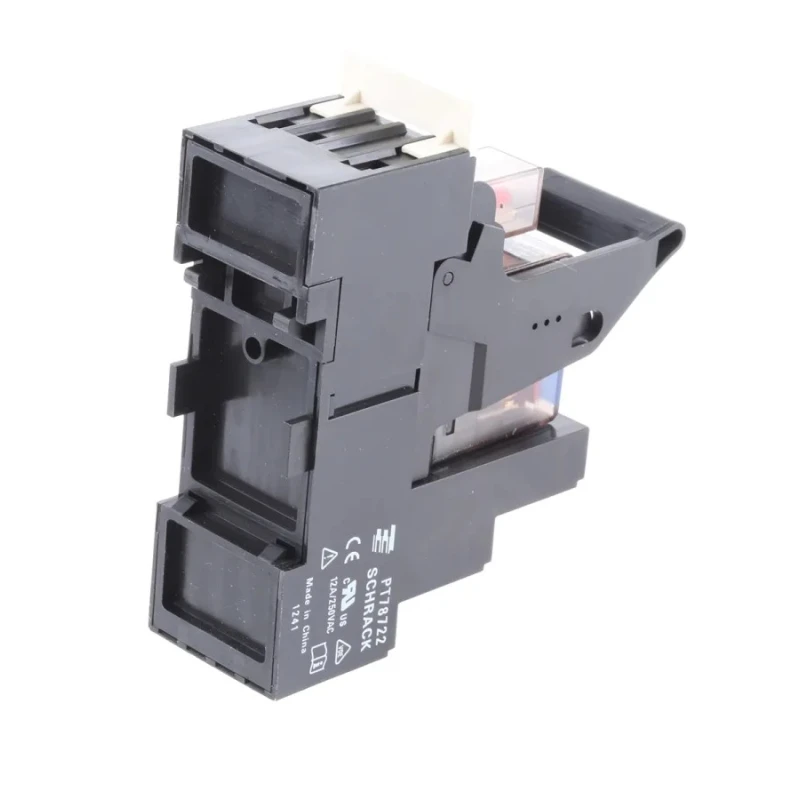

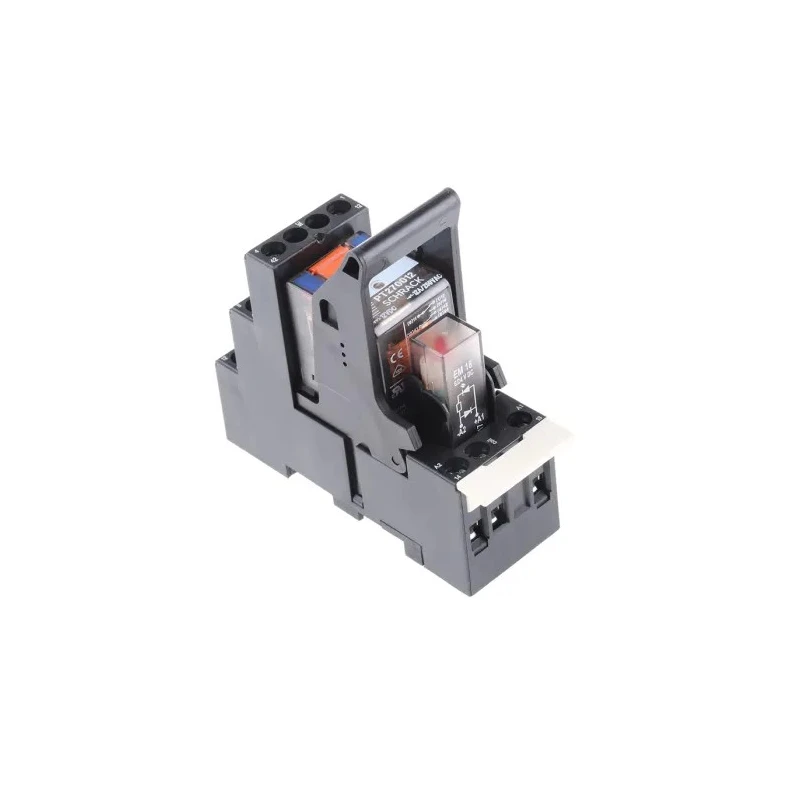

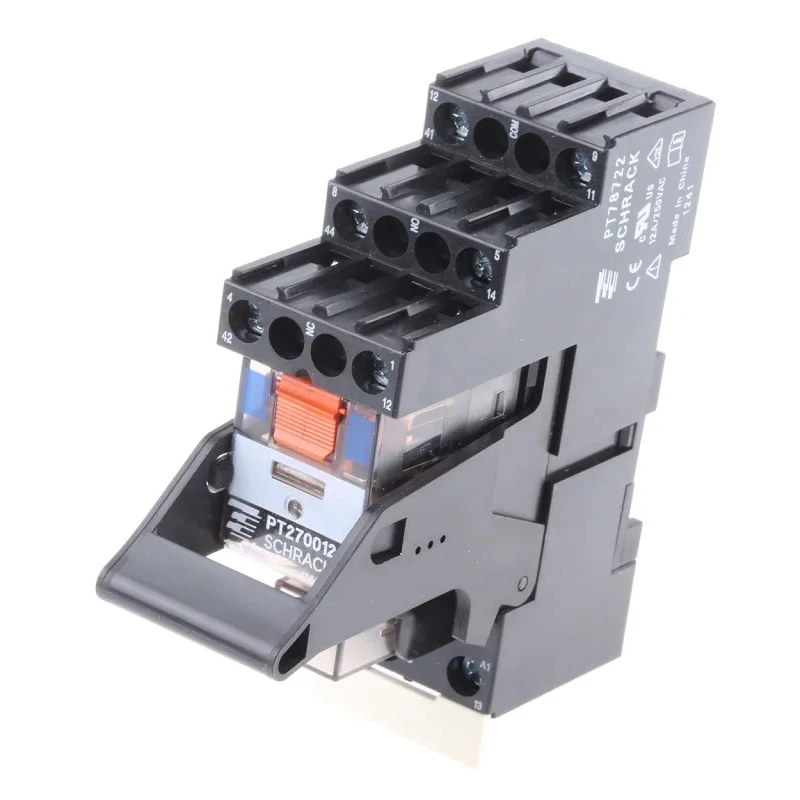

TE Connectivity DIN Rail Power Relay 12V dc Coil 12A Switching Current DPDT PT2L7LB2 8-1415534-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 78.3mm |
| Length | 77mm |
| Model | PT2L7LB2 8-1415534-7 |
| Width | 27.2mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Nickel Alloy |
| Series | PT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Screw |
| Standards/Approvals | VDE, UL, RoHS, IEC |
| Coil Resistance | 192Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 750mW |
Key Features
- The relay is mounted on DIN Rail for easy installation and integration.
- Features screw terminal type connections for secure wiring.
- Operates reliably between -40°C and 70°C temperature range.
- Switching capacity includes 3kVA power at 400V AC voltage.
- Coil resistance of 192Ω ensures stable coil operation.
- Constructed with silver nickel alloy contacts for durability and conductivity.
- Includes manual test tab and electrical/LED indicators for status monitoring.
- Compliance with IEC 61810-1, VDE, UL, and RoHS standards ensures quality and safety.
Product Description
TE Connectivity PT2L7LB2 8-1415534-7 DIN Rail Power Relay is a robust industrial component designed for reliable power switching in automation and electrical control systems. It features a 12V dc coil voltage and supports a switching current of 12 amperes with a double pole double throw (DPDT) contact configuration, making it suitable for complex control circuits.
The relay is designed for DIN rail mounting, allowing for straightforward installation in electrical enclosures and control panels. It incorporates screw terminal connections, facilitating secure and convenient wiring. The coil resistance is 192 ohms with a coil power of 750 milliWatts, optimizing energy usage during operation.
This relay performs effectively across a wide temperature range from -40°C to 70°C, ensuring dependable operation in diverse industrial environments. Its switching power capacity is 3kVA at 400V AC, suitable for various power loads.
Contact materials consist of silver nickel alloy, enhancing conductivity and extending lifespan against wear and electrical erosion. The relay package includes essential components such as the relay itself, DIN rail socket, module, retainer, and marking tab, supporting easy assembly and maintenance. Additional features like manual test tab, electrical and LED indicators, protection diode for DC versions, and compliance with international standards such as IEC 61810-1, VDE, UL, and RoHS underline its reliability and safety assurances.
This power relay is ideal for industrial, automation, electrical control, HVAC, manufacturing, and similar commercial applications where secure, efficient switching is essential. The relay is mounted on DIN Rail for easy installation and integration.
Features screw terminal type connections for secure wiring. Operates reliably between -40°C and 70°C temperature range. Switching capacity includes 3kVA power at 400V AC voltage. Coil resistance of 192Ω ensures stable coil operation.
Constructed with silver nickel alloy contacts for durability and conductivity. Includes manual test tab and electrical/LED indicators for status monitoring. Compliance with IEC 61810-1, VDE, UL, and RoHS standards ensures quality and safety.
Explore a wide range of Power Relays and DIN rail mounting components at EnvMart for robust industrial electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay supports a switching capacity of 3kVA at 400V AC voltage.
It has a coil voltage of 12V DC and a coil resistance of 192Ω.
This unit operates reliably within a temperature range of -40°C to 70°C.
It features a double pole double throw (DPDT) contact configuration.
The relay is designed for DIN rail mounting, allowing for straightforward installation in electrical enclosures.
The contacts are constructed from silver nickel alloy, which enhances conductivity and durability.
The relay measures 78.3mm in height, 77mm in length, and 27.2mm in width.
It features screw terminal type connections for secure wiring.
Yes, it includes electrical and LED indicators for status monitoring, as well as a manual test tab.
It complies with IEC 61810-1, VDE, UL, and RoHS standards, ensuring quality and safety.
The coil power rating is 750mW, optimizing energy usage during operation.
It is suitable for industrial, automation, electrical control, HVAC, and manufacturing applications.
