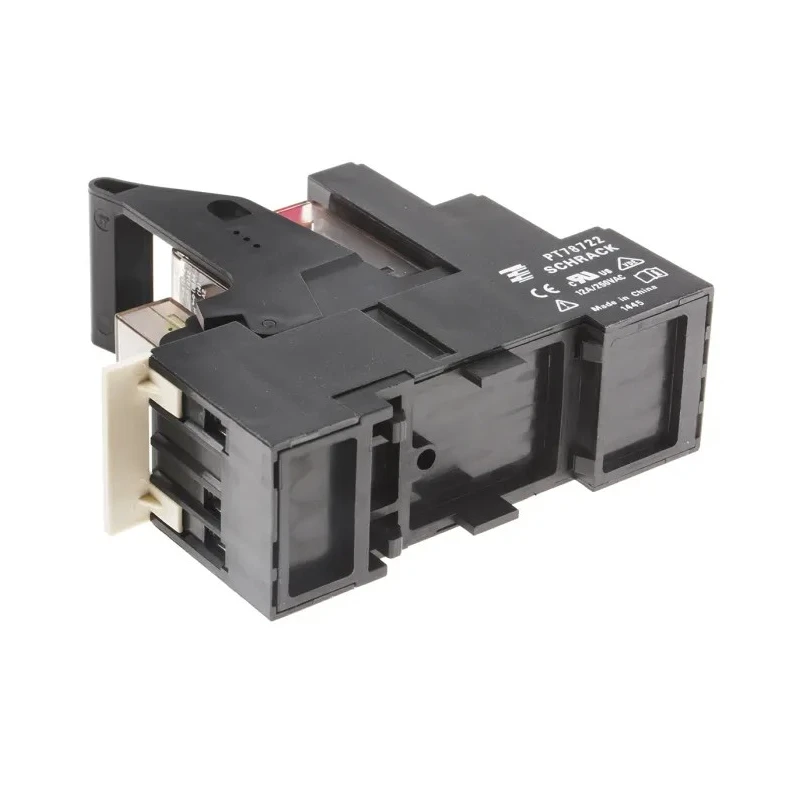

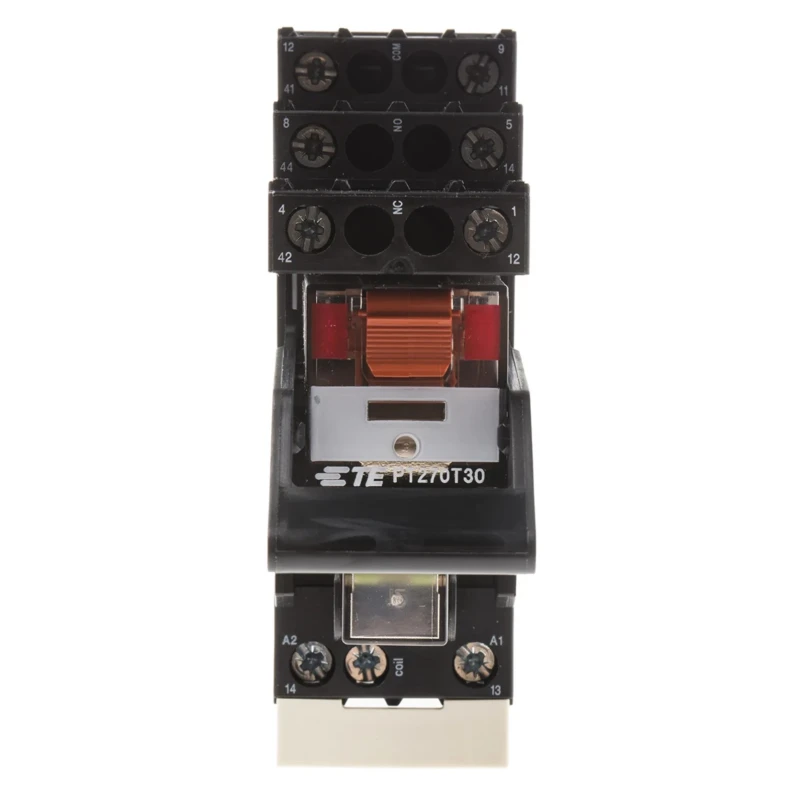

TE Connectivity DIN Rail Power Relay 230V ac Coil, 12A Switching Current, DPDT PT2L7TD0 9-1415534-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 78.3mm |
| Length | 77mm |
| Model | PT2L7TD0 9-1415534-4 |
| Width | 27.2mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Nickel Alloy |
| Series | PT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Screw |
| Standards/Approvals | VDE, UL, RoHS, IEC |
| Coil Resistance | 19.5kΩ |
| Coil Voltage | 230V ac |
| Switching AC Voltage | 400V ac |
| Coil Power | 1W |
| TE Connectivity RT Series Interface Relay, DIN Rail, 230V ac Coil, DPDTBrand | TE Connectivity |
Key Features
- Suitable for industrial and automation applications requiring 12A switching current capacity.
- Equipped with a 230V ac coil for standard electrical control circuits.
- Double Pole Double Throw (DPDT) contact configuration enables versatile switching.
- Mounts easily on DIN rails for streamlined installation.
- Constructed with silver nickel alloy contacts for durability and reliable conductivity.
- Operates within a temperature range of -40°C to 70°C for harsh environmental conditions.
- Compliance with VDE, UL, RoHS, and IEC standards ensures safety and quality.
- Includes manual test tab and LED & varistor module for AC versions for operational feedback and protection.
Product Description
TE Connectivity PT2L7TD0 9-1415534-4 DIN Rail Power Relay features a 230V ac coil providing a switching current of 12 amps with a DPDT contact arrangement. Designed for robust performance, this relay is ideal for various industrial, electrical automation, and signal conditioning applications where precise and reliable switching is required.
This Power Relay operates efficiently within a minimum temperature of -40°C and maximum temperature of 70°C, ensuring stability in demanding environments. The relay’s silver nickel alloy contacts provide excellent conductivity and durability, suitable for switching AC voltages up to 400V.
The relay package includes a relay module, DIN rail socket, retainer, and marking tab. The DIN socket design facilitates logical control and load terminal arrangements, including a supplementary A2 terminal for simplified wiring loops. AC coil versions are equipped with LED indicators and varistor modules to provide operational status and surge protection.
Compliant with globally recognized standards such as VDE, UL, RoHS, and IEC 61810-1, this product ensures safety and environmental adherence. The compact installation size of 77mm length, 78.3mm height, and 27.2mm width provides space-saving benefits in control panels.
Suitable for industrial, electrical automation, signal conditioning, HVAC, and manufacturing equipment. Manual test tab allows easy operational testing. LED and varistor modules included in AC versions aid in enhanced protection and diagnostics.
Logical terminal layout on DIN socket eases wiring tasks. Complies with relevant IEC, UL, VDE, and RoHS standards for safe industrial use. Explore EnvMart for more industrial relays and electrical automation solutions from TE Connectivity and other leading manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This power relay has a switching current capacity of 12A.
The coil voltage for this relay is 230V AC.
It features a Double Pole Double Throw (DPDT) contact configuration.
This relay operates within a temperature range of -40°C to 70°C.
The contacts are constructed from silver nickel alloy, providing reliable conductivity.
It is designed for mounting on DIN rails, facilitating easy installation.
The dimensions of this relay are 77mm in length, 78.3mm in height, and 27.2mm in width.
It complies with VDE, UL, RoHS, and IEC standards, ensuring safety and quality.
It includes a manual test tab and LED & varistor module for AC versions to provide operational feedback and protection.
This relay can switch AC voltages up to 400V.
It utilizes screw terminals for connections.
This relay is suitable for industrial, electrical automation, signal conditioning, HVAC, and manufacturing equipment.
