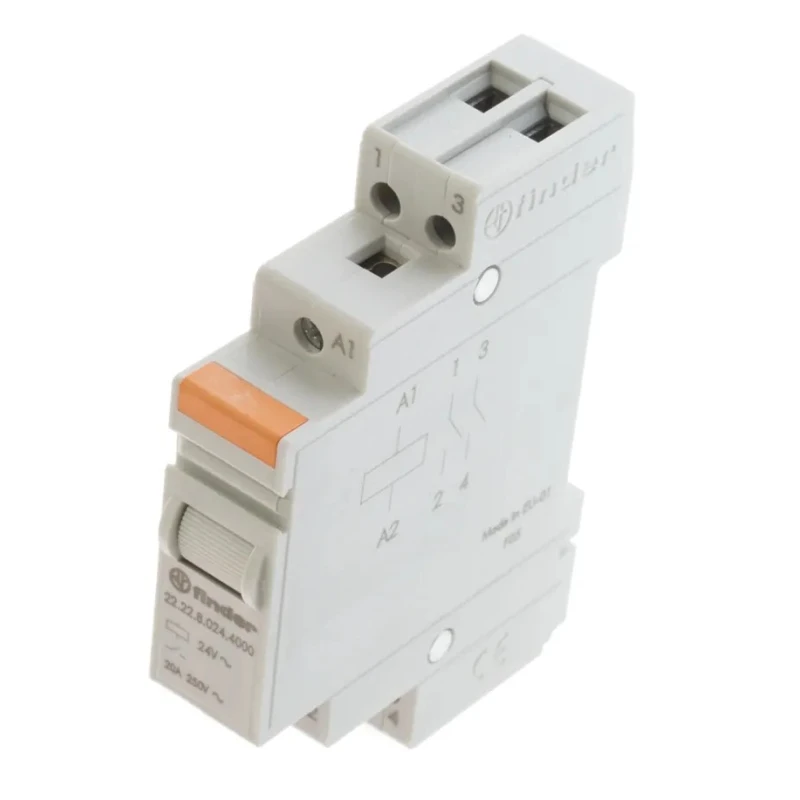

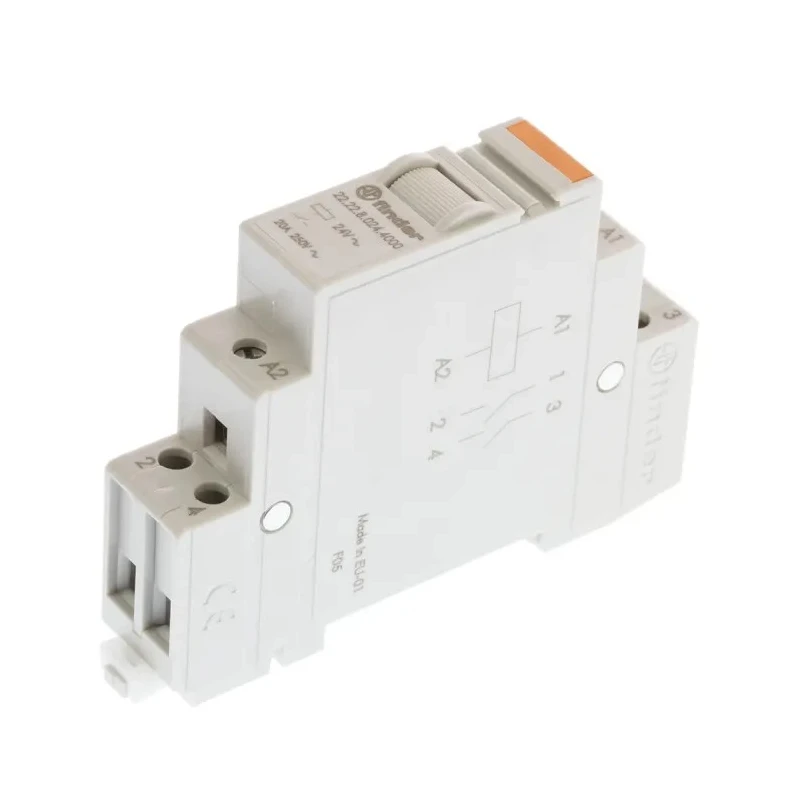

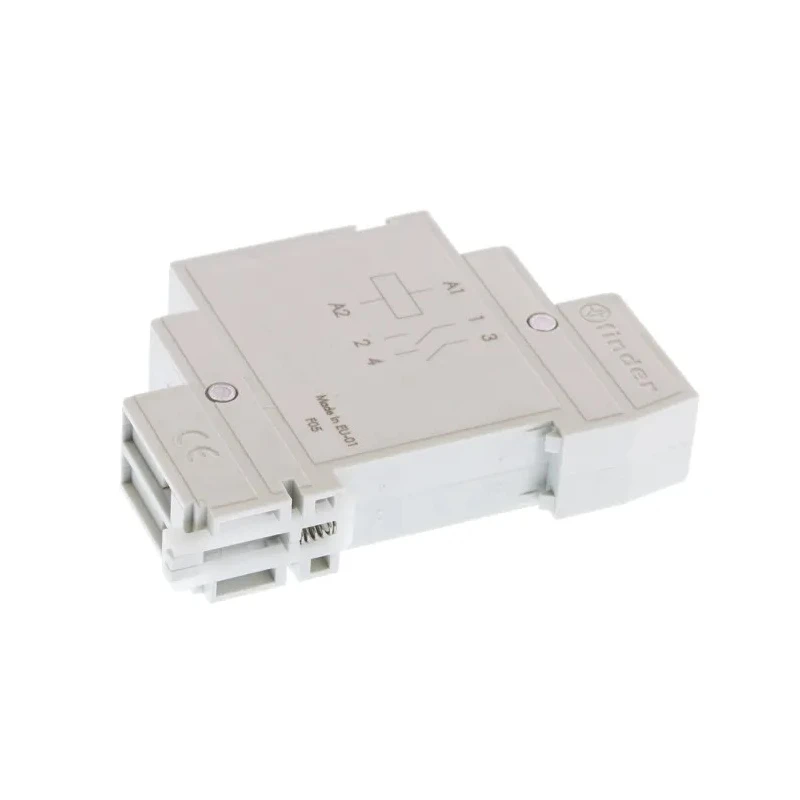

Finder DIN Rail Power Relay 24V AC Coil 20A Switching Current DPST 22.22.8.024.4000

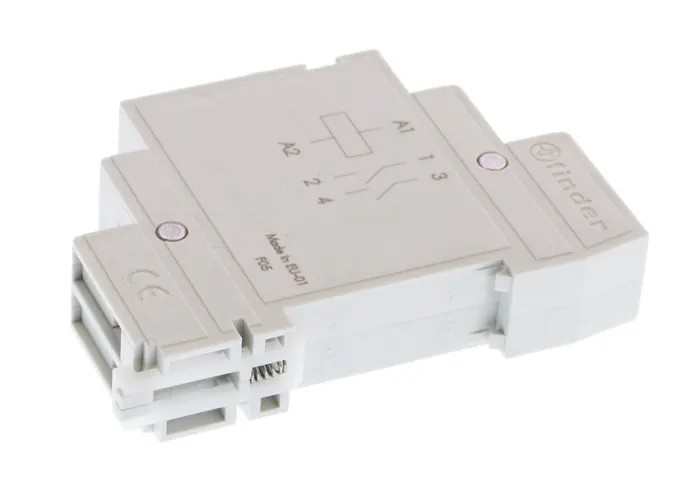

Finder 22.22.8.024.4000 DIN Rail Power Relay features a 24V AC coil voltage and DPST contact configuration designed for robust electrical switching applications. With a compact form factor measuring 58.4 mm in length, 58.4 mm in width, and 84 mm in height, it installs efficiently onto standard 35 mm DIN mounting rails. Manufactured with high-quality silver alloy (AgSnO2) contacts, the relay offers excellent durability and reliable switching performance rated for 20 amperes.

The relay secures electrical isolation up to 4 kV between coil and contacts ensuring operational safety even under demanding industrial conditions. It functions effectively over a wide temperature range from -40°C to 40°C, making it suitable for various environments. The coil resistance of 42 ohms and power consumption of 3 watts ensure efficient energy usage. Installed via screw terminals, this relay provides stable and easy wiring connections.

This product supports switching voltages of up to 250V AC and 24V DC, making it versatile for AC and DC load switching tasks. With mechanical endurance up to 500,000 cycles and electrical endurance around 50,000 cycles at rated loads, the relay is engineered for long service life in applications such as office lighting, street lighting, pump controls for irrigation and drainage, bathroom lighting, and garden lighting systems.

The DIN rail mount simplifies integration into control panels and electrical enclosures, facilitating quick and reliable installation and maintenance. The relay is an ideal choice for industrial, commercial, agricultural, and HVAC systems requiring dependable switching components.

Utilises durable silver alloy AgSnO2 contact material for enhanced performance. Rated for 20 amp switching current supporting significant electrical loads. High isolation voltage of 4 kV between coil and contacts provides safe operation.

Operates reliably from -40°C to 40°C ambient temperature range. Compact design suitable for 35 mm DIN rail mounting in control panels. Screw terminal type enables secure and stable electrical connections. Supports both AC and DC switching with 250V AC and 24V DC switching voltages.

Coil resistance of 42 ohms and coil power consumption of 3 watts. Mechanical longevity up to 500,000 cycles and electrical lifespan around 50,000 cycles at rated load. Designed for industrial and commercial applications including lighting and pump control systems.
