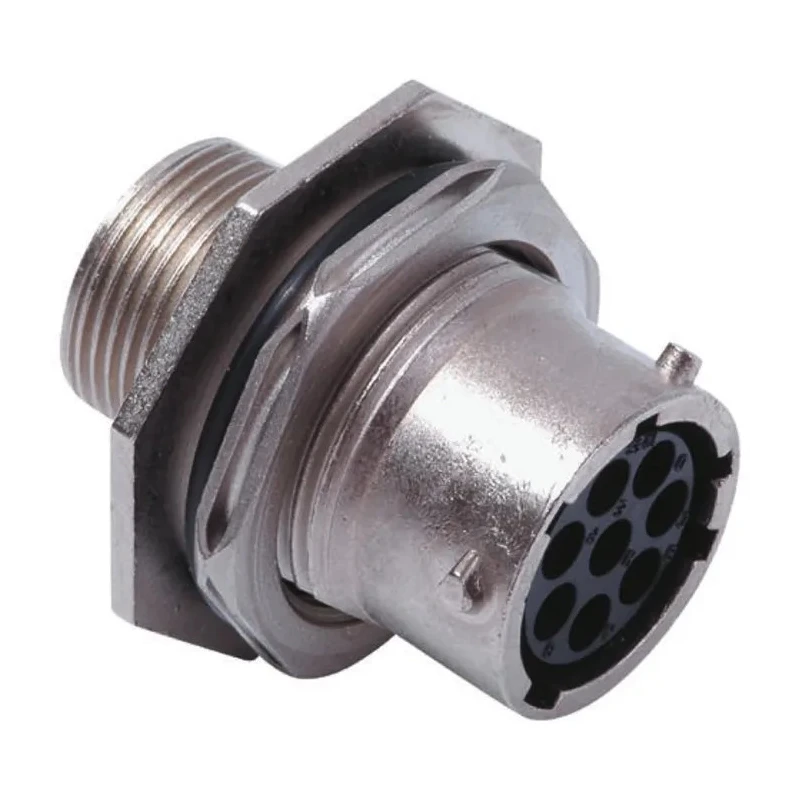

Souriau Sunbank by Eaton UTO Straight 12 Way Panel Mount MIL Spec Circular Connector Female Contacts Shell Size UT071412SH6
Specifications
| Country of Origin | India |
|---|---|
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Model | UT071412SH6 |
| IP Rating | IP67, IP68, IP69K |
| Mount Type | Panel Mount |
| Housing Material | Zinc Alloy |
| Series | UTO |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Nickel |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shell Size | 14 |
| Mating Type | Bayonet |
| Shell Plating | Nickel |
| JAM NUT RECEPTACLE SOCKET CONTACT 12PTSBrand | NEUTRAL |
Key Features
- Features 12 female contacts ensuring reliable electrical connections.
- Designed for panel mount applications with bayonet mating type.
- Constructed with zinc alloy housing and nickel plating for enhanced durability.
- Offers high protection ratings of IP67, IP68, and IP69K for harsh environments.
- Operates reliably between -55°C to 125°C temperature range.
- Termination type is crimp enabling secure cable attachment.
- Supports 500 mating cycles with bayonet locking ring for secure connections.
- Sealed cylindrical metal connector ensuring resistance to dust and water ingress.
Product Description
Souriau Sunbank by Eaton UT071412SH6 MIL Spec Circular Connector is a high-quality, industrial-grade panel mount connector featuring 12 female contacts with a straight orientation and shell size 14. This connector is designed for demanding applications requiring robust electrical connections and environmental protection.
Constructed with a durable zinc alloy housing and nickel plating on both shell and contacts, the connector ensures excellent corrosion resistance and longevity under tough operational conditions. Its bayonet mating type facilitates quick and secure locking with up to 500 mating cycles, suitable for frequent connection and disconnection in industrial settings.
The connector is sealed to IP67, IP68, and IP69K standards, providing superior protection against dust, water, and high-pressure washdown, making it suitable for harsh environments such as manufacturing plants, water treatment facilities, and outdoor installations.
The operating temperature range from -55°C to 125°C allows stable performance in extreme temperature conditions, while the crimp termination type provides reliable cable attachment, ensuring minimal signal loss and mechanical stability.
This UTO series connector by Souriau Sunbank by Eaton is interchangeable with TRIM TRIO and UTP series connectors, providing versatility for system integrators and reducing inventory complexity. The product is compatible with jamnut receptacle socket contacts ordered separately, enhancing modularity in connector assemblies.
12 female contacts for secure electrical connections. Bayonet locking ring enabling 500 mating cycles. Zinc alloy housing with nickel plating for corrosion resistance. Sealed to IP67, IP68, and IP69K for environmental protection.
Operating temperature range of -55°C to 125°C. Panel mount design suited for industrial use. Crimp termination for strong cable retention. Interchangeable with TRIM TRIO and UTP series connectors.
This Mil Spec Circular Connector is ideal for electronic components, power and connector applications across industrial, manufacturing, aerospace, military, and other demanding sectors. Browse further Souriau Sunbank connectors and accessories on EnvMart for comprehensive solutions.
