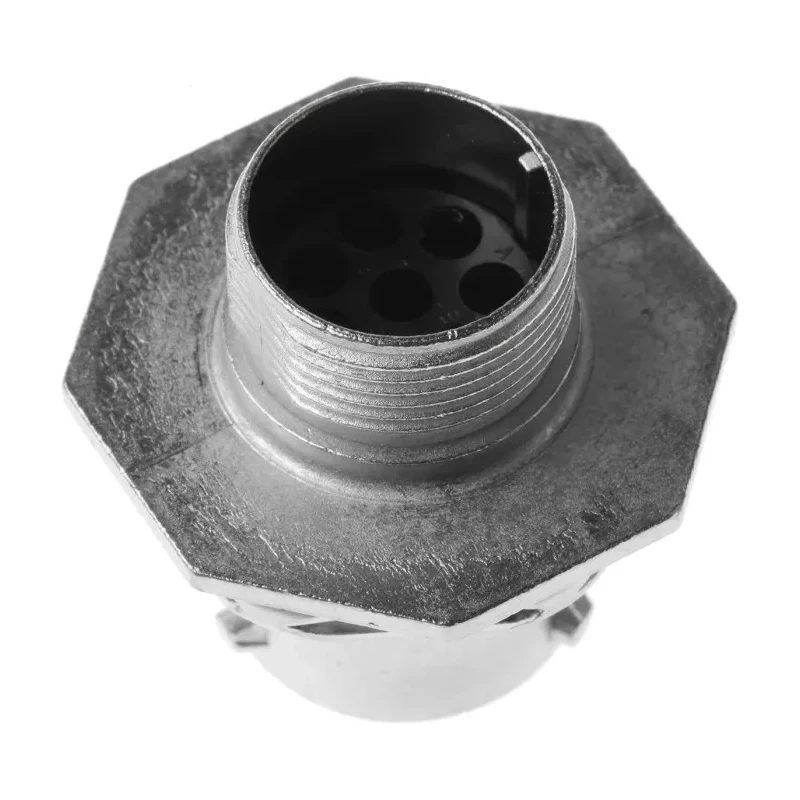

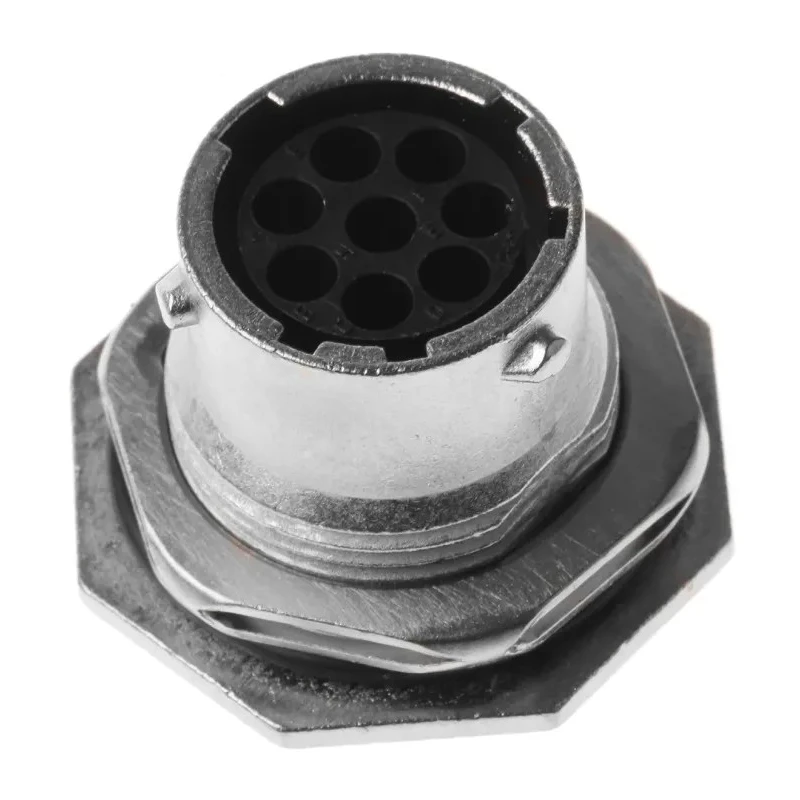

Souriau Sunbank by Eaton UTO Straight 8 Way Panel Mount MIL Spec Circular Connector Female Contacts Shell Size 12 UT07128SH6

Souriau Sunbank by Eaton UT07128SH6 is a MIL Spec Circular Connector of the UTO series designed for harsh industrial and electronic applications requiring robust and sealed panel mount connectors. This product features a straight 8 way configuration with female contacts and shell size 12, suitable for rugged environments.

The connector's housing is made from zinc alloy with nickel plating providing corrosion resistance and mechanical strength. Its crimp termination and bayonet mating type ensure reliable and secure electrical connections with ease of mating and unmating up to 500 cycles. Operating temperature range from -55°C to 125°C makes it suitable for extreme thermal conditions encountered in industrial, military, aerospace, and marine applications.

The jamnut receptacle mount type allows easy panel installation, while the sealed cylindrical design meets IP68 rating, protecting internal contacts from water and dust ingress. It is fully interchangeable with TRIM TRIO and UTP series connectors, enhancing flexibility in system design.

The nickel-plated female contacts arranged in 8 positions guarantee consistent electrical performance, and 5-pin guiding prevents incorrect connector alignment. The metal casing with a bayonet locking ring enhances mechanical stability for demanding usage.

This connector is ideal for electronics manufacturing, defense systems, transportation equipment, aerospace, and other environments requiring MIL Spec performance. Souriau Sunbank by Eaton connectors are globally recognized for their longevity and quality in panel mount circular connectors.

Constructed with zinc alloy housing and nickel plating for enhanced durability. Supports operating temperatures from -55°C to 125°C. Features 8 female contacts with crimp termination and bayonet mating type. Panel mount design with jamnut receptacle for socket contacts.

Metal casing includes a bayonet locking ring supporting 500 mechanical mating cycles. Sealed cylindrical connectors rated IP68 for protection against dust and water ingress. Compatible and interchangeable with TRIM TRIO and UTP series connectors.

5-pin guiding system ensures correct insertion and secure connection. Explore our comprehensive selection of Mil Spec Circular Connectors to suit your specialized industrial and military communication needs at EnvMart.
