MEAN WELL AC/DC Adapter Australia, EU, UK, US 264V AC Input 12V DC Output 1.5A GEM18I12-P1J

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL AC/DC Adapter Australia, EU, UK, US 264V AC Input 12V DC Output 1.5A GEM18I12-P1J

Name: MEAN WELL AC/DC Adapter Australia, EU, UK, US 264V AC Input 12V DC Output 1.5A GEM18I12-P1J
Brand: MEAN WELL
SKU: 192549



Category AC/DC Adapter Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Model	GEM18I12-P1J
Cable Length	1m
Overall Length	39.1mm
EMC Immunity	Compliance to EN61000-4,-2,3,4,5,6,8,11, light industry level, criteria A
Series	GEM18I
Overall Width	75.5mm
Maximum Operating Temperature	50°C
Plug Type	Australia, EU, UK, US
Maximum Input Voltage	264V ac
Maximum Output Current	1.5A
Standards/Approvals	UL 60950-1, CE, IEC 60950-1
Minimum Input Voltage	100V ac
Overall Depth	56.2mm
Minimum Output Voltage	12V dc
Input Connector Type	Universal Plug
EMC Emission	Compliance to EN55011 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B

Key Features

Supports Australia, EU, UK, and US plug types for global compatibility.
Compact design with dimensions 75.5mm width, 56.2mm depth, and 39.1mm length.
High reliability with 2 x MOPP medical safety approvals.
Efficiency up to 90.5% with low no-load power consumption below 0.1 W.
Wide input voltage range from 100V to 264V AC.
Includes cable length of 1 meter for flexible placement.
Meets stringent safety and EMC standards including UL 60950-1, CE, IEC 60950-1.
Designed for medical and portable device applications with low leakage current.

Product Description

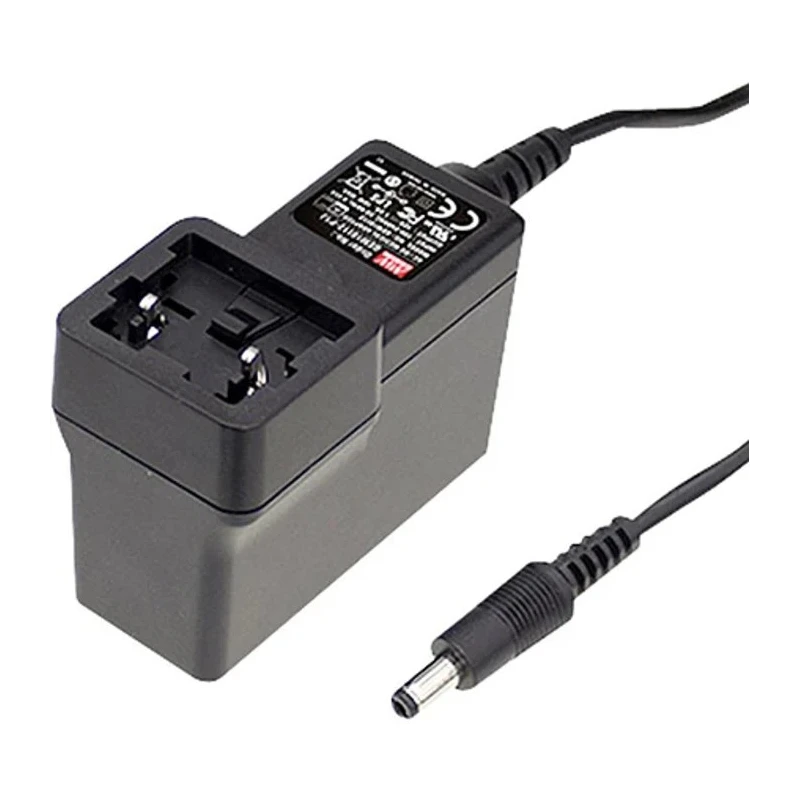

MEAN WELL GEM18I12-P1J AC/DC Adapter is a medically certified power supply delivering 12V DC at 1.5A from an AC input voltage range up to 264V. Designed with a flame retardant 94V-0 plastic casing, this adapter ensures user safety and reliable operation in industrial, medical, and laboratory environments.

The GEM series supports interchangeable AC plugs for Australia, EU, UK, and US sockets, making it ideal for users requiring flexibility across different regions. Its compact footprint (75.5mm width x 56.2mm depth x 39.1mm length) promotes ease of transportation and installation.

High energy efficiency up to 90.5% and low standby power usage below 0.1 W ensure compliance with energy-saving regulations like EISA 2007/DoE and EU ErP. The power supply incorporates industry standard protections including short circuit, overload, and over voltage safeguards along with very low leakage current below 100 µA, essential for medical device safety.

The adapter holds multiple approvals including ANSI/AAMI ES60601-1, TUV EN60601-1 standards for medical equipment safety, as well as EMC emission and immunity compliance for reliable performance in sensitive environments.

Supports multiple international plug types (sold separately). Rated power options between 12W to 40W depending on model. Class II power supply with no earth pin for safe, fully enclosed operation. Compatible with various portable medical devices such as blood glucose meters, inhalers, nebulisers, and sleep apnea equipment.

Offers long operating life with maximum temperature up to 50°C. Includes 1 meter cable length with universal plug connection.

MEAN WELL ensures a robust, safe, and efficient solution meeting modern medical and industrial power supply demands. Browse EnvMart for other certified AC/DC Adapters and power supply solutions.
