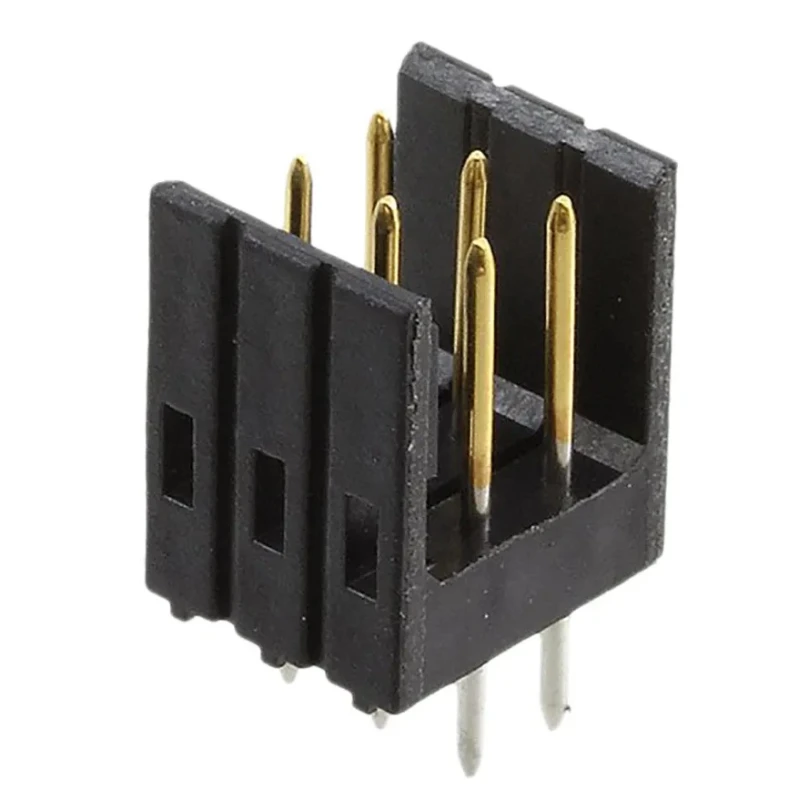

TE Connectivity AMPMODU MOD II Series Straight Through Hole PCB Header, 6 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 826469-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 826469-3 |
| Mount Type | Through Hole |
| Housing Material | Polycyclohexylenedimethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
Key Features
- Designed with a Polycyclohexylenedimethylene Terephthalate housing for high temperature resistance.
- Contacts are made of phosphor bronze with gold plating to ensure reliable conductivity.
- Suitable for board-to-board and wire-to-board connector systems.
- Supports a current rating of 3A and a maximum voltage of 750V.
- Operates effectively within a temperature range of -55°C to 105°C.
- Tail pin length is 3.2 mm to facilitate secure solder termination.
- Features detent latching and polarization for secure, accurate mating of connectors.
- Compatible with SMT solder processes and vertical PCB mounting with board stand-offs.
Product Description
TE Connectivity 826469-3 AMPMODU MOD II Series Straight Through Hole PCB Header is designed for high reliability in industrial electronic applications. This connector features a 2.54 mm pitch and a 2-row header with 6 male contacts that are gold plated for corrosion resistance and excellent conductivity. It has a black UL 94V-0 rated polyester-glass fiber reinforced high temperature housing which enables operation in harsh environments with a temperature range of -55°C to 105°C.
The header is shrouded to provide additional mechanical protection and polarization ensures correct mating, while detent latching secures reliable connections. The tail pin length of 3.2 mm allows for through-hole solder termination, enhancing mechanical strength on the PCB.
Designed for board-to-board and wire-to-board applications, this connector supports up to 3A of current with a maximum voltage rating of 750V. Its robust construction and temperature tolerance make it ideal for use in automation, control systems, instrumentation, and industrial machinery.
The AMPMODU Interconnect System is a standard in signal connectivity for industrial electronic assemblies, offering a compact and economical solution to interconnecting boards and wire assemblies. The product is compatible with SMT soldering processes and vertical mounting versions come with board stand-offs for stability.
Polycyclohexylenedimethylene Terephthalate housing ensures high temperature tolerance. Gold plated phosphor bronze contacts provide reliable electrical performance. 2.54 mm pitch and 2-row design support dense PCB layouts.
Shrouded design with polarization prevents mismating. Rated for 3A current and 750V voltage for industrial applications. Wide operating temperature range from -55°C to 105°C. Tail pin length of 3.2 mm for secure soldering.
Detent latching mechanism provides secure connector engagement.
This TE Connectivity PCB Header 826469-3 is ideal for use in electronic manufacturing, automated control systems, robotics, telecommunications equipment, and other industrial electronics requiring reliable and compact board interconnections.
Explore the Electronics Components and PCB Headers categories on EnvMart for compatible connectors and related components from leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3A and a maximum voltage of 750V.
It features a 2.54 mm pitch and has 6 male contacts.
The housing is made from Polycyclohexylenedimethylene Terephthalate, while the contacts are made of phosphor bronze with gold plating.
It operates effectively within a temperature range of -55°C to 105°C.
This connector uses solder termination with a tail pin length of 3.2 mm.
Yes, it is designed for both board-to-board and wire-to-board connector systems.
This model is designed for through hole mounting.
Yes, it includes detent latching and polarization to ensure secure and accurate mating of connectors.
The orientation of this connector is straight.
The shrouded design provides additional mechanical protection and prevents mismating of connectors.
The country of origin for this model is India.
It is suitable for use in automation, control systems, instrumentation, and industrial machinery.
