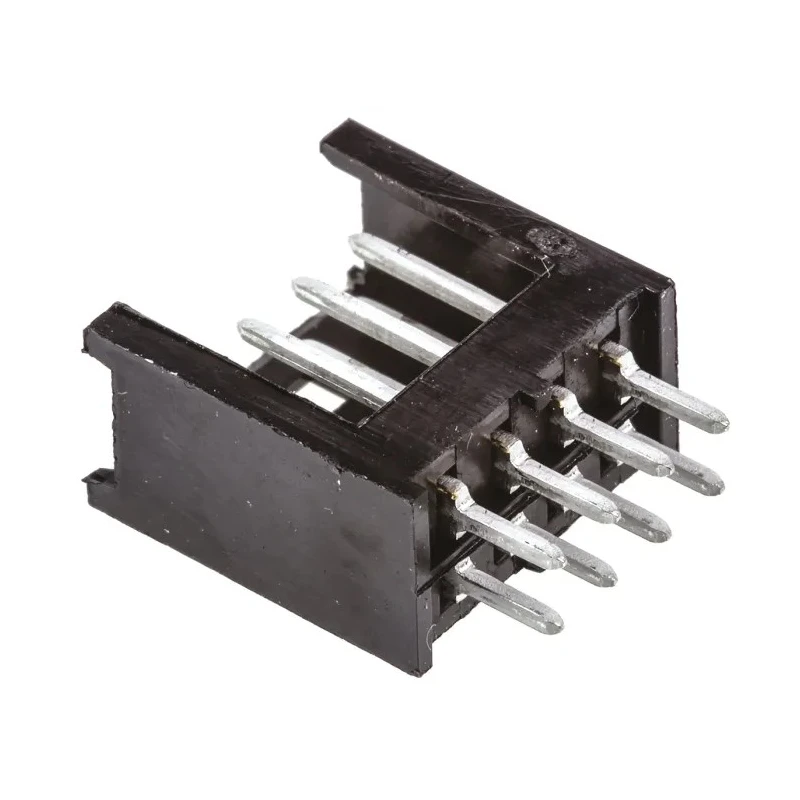

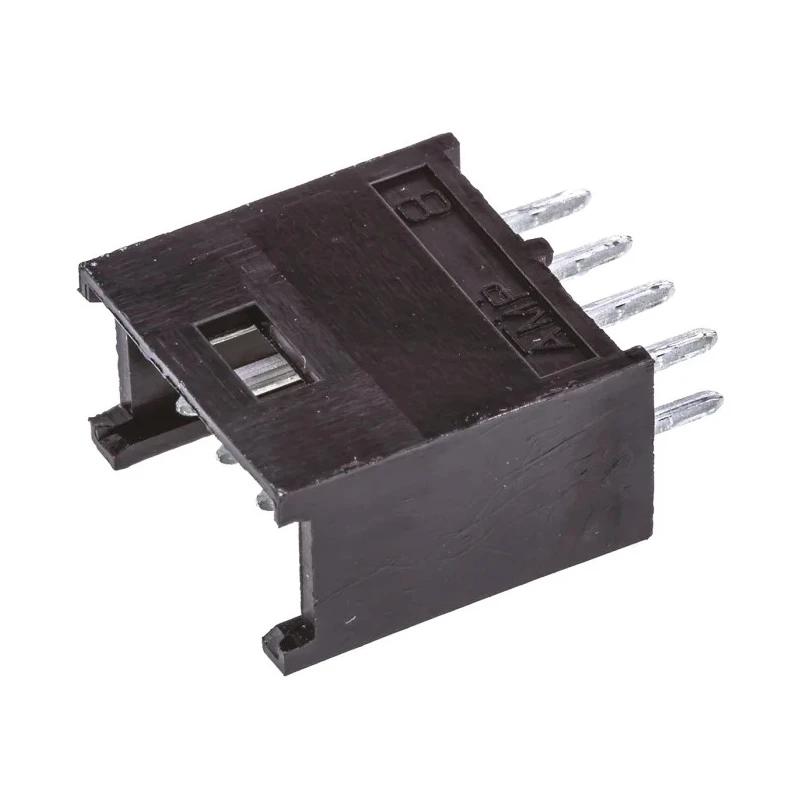

TE Connectivity AMPMODU MOD II Series Straight Through Hole Shrouded PCB Header 8 Contacts 2.54 mm Pitch 2 Row 750V 280384-1

TE Connectivity 280384-1 AMPMODU MOD II Series Straight Through Hole Shrouded PCB Header is engineered for reliable electrical connections in industrial and electronic applications. Featuring 8 contacts arranged in 2 rows with a precise 2.54 mm pitch, this PCB header is designed for board-to-board and wire-to-board systems. The shrouded design provides pin protection with surround shielding on three sides, enhancing durability and preventing misalignment.

The polarized housing prevents mismating by only allowing proper connection orientation. A detent positive locking mechanism secures the connector with a firm lock, preventing accidental disconnection during operation. Made from robust thermoplastic housing material, the header maintains structural integrity under harsh operating conditions.

Contacts are constructed from phosphor bronze and plated with tin to ensure excellent electrical conductivity and resist corrosion. Rated for a maximum voltage of 750V and current of 3A, this header supports a wide range of power and signal needs. The straight pin orientation and through-hole mount type enable easy assembly and robust soldering on printed circuit boards.

Capable of operating in temperature extremes from -65°C to 105°C, the connector is suitable for applications in automotive controls, industrial machinery, test equipment, computers, telecommunications gear, medical instruments, storage equipment, and household appliances. The 3.5 mm tail pin length accommodates standard soldering processes for firm electrical and mechanical connections.

Shrouding for pin protection enhances durability. Polarization prevents connector mismating in installations. Positive locking detent ensures secure connections. Thermoplastic housing material offers mechanical strength.

Phosphor bronze contacts with tin plating provide reliable conductivity. Supports 750V voltage and 3A current ratings. Through-hole, straight orientation facilitates mounting on PCBs. Wide temperature tolerance from -65°C to 105°C enables use in harsh environments.

Suitable for automotive, industrial, telecom, medical, and consumer electronics applications. 3.5 mm tail pin length designed for solder termination.

This TE Connectivity AMPMODU MOD II connector adheres to modern interconnect standards providing an economical, versatile, and dependable solution for signal and power transmission needs in automation and control systems. It consistently supports robust performance in demanding industrial and electronic environments.
