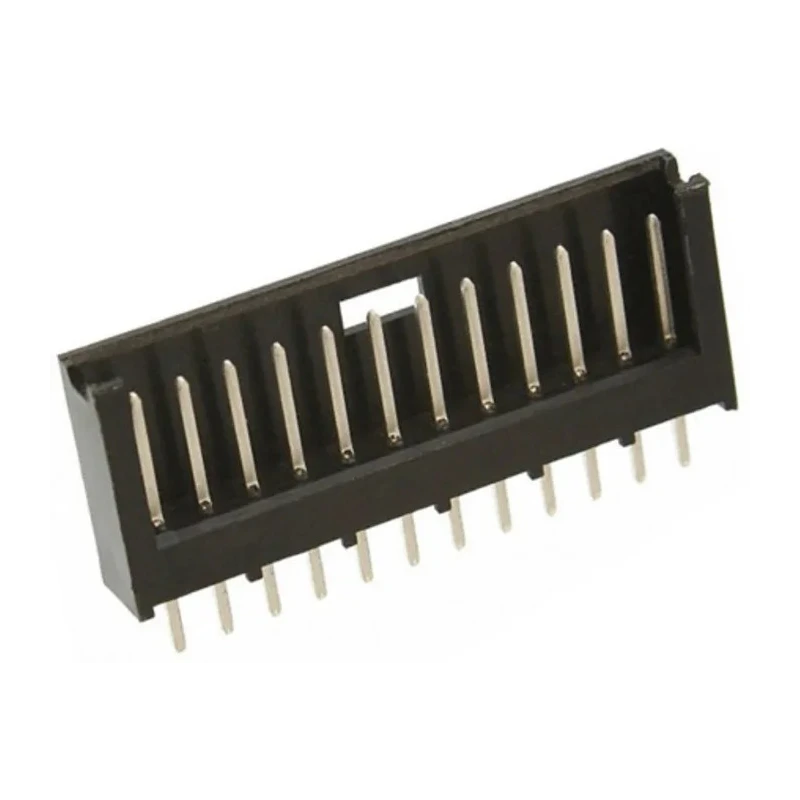

TE Connectivity AMPMODU Mod II Series Shrouded Straight Through Hole PCB Header, 12 Contacts, 2.54 mm Pitch, 1 Row 280520-1
Specifications
| Country of Origin | Italy |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 280520-1 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- The shrouded design provides pin protection and prevents mismating.
- Suitable for through-hole mounting with a straight orientation.
- Constructed with thermoplastic housing and phosphor bronze contacts plated with tin.
- Supports a current rating of 3A and voltage rating of 750V.
- Operating temperature range spans from -65°C to 105°C.
- Features a single row configuration with 3.5 mm tail pin length for easy soldering.
- Polarization and a detent mechanism ensure secure positive locking.
- Widely applicable in automotive controls, industrial equipment, telecommunications, medical instruments, and computing.
Product Description
TE Connectivity 280520-1 AMPMODU Mod II Series Shrouded Straight Through Hole PCB Header features a 2.54 mm pitch and 12 male contacts arranged in a single row with a straight orientation. Its thermoplastic housings are shrouded on three sides to protect pins and prevent mismating, ensuring robust and reliable board-to-board or wire-to-board electrical connections.
This PCB header supports a nominal current of 3A and a voltage rating of 750V, suitable for demanding industrial and automotive control applications. The contacts are made from phosphor bronze and plated with tin for excellent conductivity and corrosion resistance. The tail pins measure 3.5 mm in length, facilitating secure soldering on printed circuit boards.
Its operating temperature range of -65°C to 105°C makes it adaptable to various environmental conditions. Additionally, the polarization design and detent window provide a positive locking mechanism to prevent disconnection during mechanical stress or vibration.
This component is ideal for use in industrial automation, test equipment, telecommunications, computing, medical instruments, storage devices, and a wide range of electrical applications requiring reliable, compact interconnect systems.
The shrouded design provides pin protection and prevents mismating. Suitable for through-hole mounting with a straight orientation. Constructed with thermoplastic housing and phosphor bronze contacts plated with tin. Supports a current rating of 3A and voltage rating of 750V.
Operating temperature range spans from -65°C to 105°C. Features a single row configuration with 3.5 mm tail pin length for easy soldering. Polarization and a detent mechanism ensure secure positive locking. Widely applicable in automotive controls, industrial equipment, telecommunications, medical instruments, and computing.
Discover a wide range of high-quality PCB Headers and connectors in the Electronics Components section at EnvMart to support your industrial and commercial electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3A.
It has a voltage rating of 750V.
The pitch size of the contacts is 2.54 mm.
The housing is made from thermoplastic, and the contacts are constructed from phosphor bronze plated with tin.
The operating temperature range spans from -65°C to 105°C.
It features 12 male contacts arranged in a single row.
This unit is suitable for through-hole mounting with a straight orientation.
The tail pin length is 3.5 mm, facilitating easy soldering.
It includes polarization and a detent mechanism to ensure secure positive locking.
It is widely applicable in automotive controls, industrial equipment, telecommunications, medical instruments, and computing.
This header supports board-to-board and wire-to-board connector systems.
The country of origin for this PCB header is Italy.
