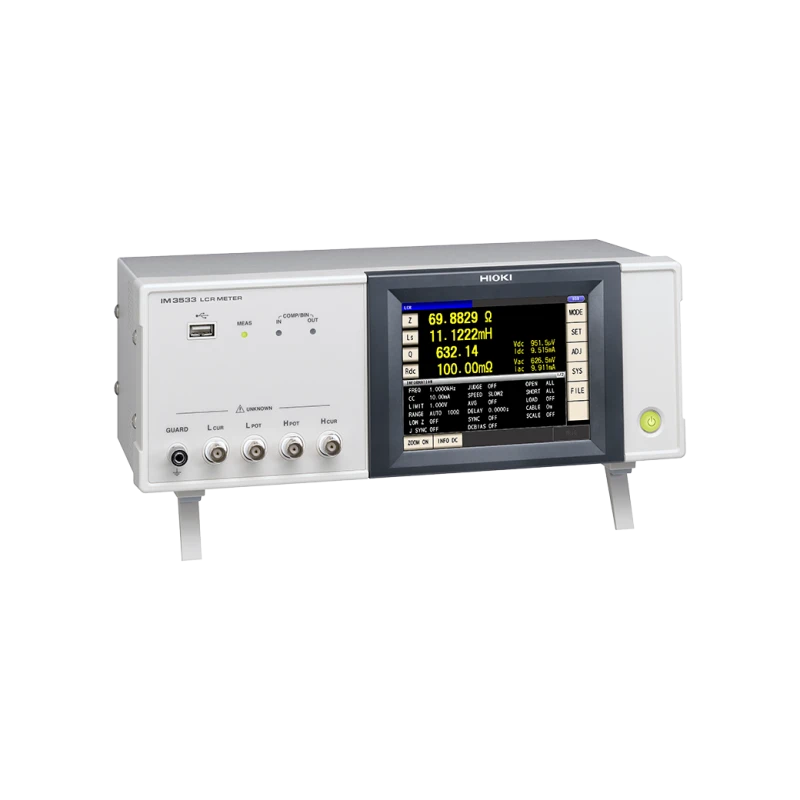

Hioki IM3533 LCR Meter Upto 200kHz Frequency
Specifications
| Power Source | 100 to 240 V AC 50/60 Hz 50 VA max |
|---|---|
| Brand | HIOKI |
| Dimension | 330 x 119 x 68 mm |
| Applications | Laboratory |
| Color | White |
| Model | IM3533 |
| Test Frequency | 200KHz |
Key Features
- ±0.05% accuracy with wide measurement range (DC, 1mHz to 200kHz, 5mV to 5V, 10uA to 50mA)
- Non-stop testing over mixed measurement conditions such as C-D and ESR at 10 times the speed of previous models
- Built-in low impedance high precision mode effective for testing low inductance or the ESR of aluminum electrolysis capacitance
Product Description
Hioki IM3533 LCR Meter Upto 200kHz Frequency, Hioki LCR Meters and Impedance Analyzers range from 1 MHz to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM3533 series is Hiokis first LCR meters to offer turn ratio, mutual inductance, and inductance difference measurements of transformers and coils, and are integrated with an internal DC bias to facilitate HDMI compliance testing
- Dedicated modes for measuring transformer winding ratio, mutual inductance and temperature compensated DCR
- Frequency sweep testing (IM3533-01 only)
- 2m/4m cable setting in addition to the standard 0m/1m
- Touch screen with intuitive operation
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hioki IM3533 LCR Meter has a measurement frequency range of 1 mHz to 200 kHz.
It offers an accuracy of ±0.05%.
This model requires a power source of 100 to 240 V AC at 50/60 Hz, with a maximum power consumption of 50 VA.
The dimensions of this unit are 330 x 119 x 68 mm.
It is suitable for laboratory applications.
Yes, it includes a built-in low impedance high precision mode for testing low inductance or the ESR of aluminum electrolysis capacitance.
The test voltage range for the Hioki IM3533 is from 5 mV to 5 V.
It can measure currents from 10 µA to 50 mA.
This model offers turn ratio, mutual inductance, and inductance difference measurements of transformers and coils, along with an internal DC bias for HDMI compliance testing.
The color of this unit is white.
Yes, frequency sweep testing is available with the IM3533-01 variant.
It features a touch screen with intuitive operation for ease of use.
