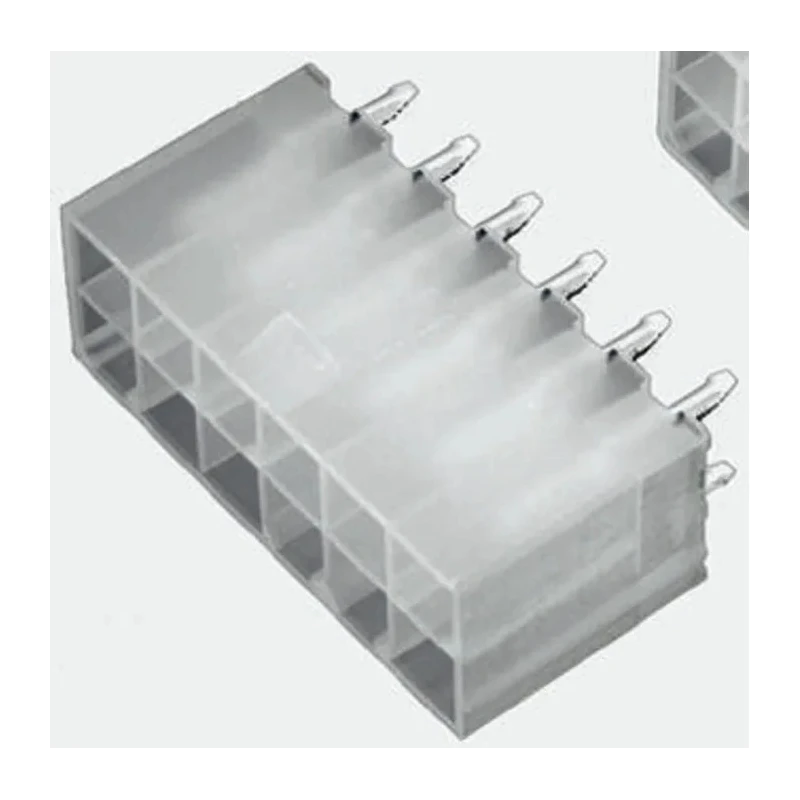

TE Connectivity VAL-U-LOK Series Straight Through Hole PCB Header, 16 Contacts, 4.2 mm Pitch, 2 Row, Shrouded 1-1586037-6

TE Connectivity 1-1586037-6 VAL-U-LOK Series straight through hole PCB header is a robust electrical connector designed for printed circuit board applications. Featuring 16 male pin contacts arranged in two rows with a 4.2 mm pitch, this connector facilitates reliable wire-to-board connections.

The pins are made of brass with tin plating to ensure excellent conductive properties and corrosion resistance. The housing is molded from durable nylon material meeting UL94V-2 flammability standards, providing safety in demanding industrial environments.

This through-hole mounted header uses a solder termination type with a tail pin length of 3.5 mm for secure and stable anchoring on the PCB. It supports an operating current of up to 9 amperes and voltage of 600 volts, making it suitable for power and signal applications that require dependable performance.

The connector operates over a wide temperature range from -40°C to 105°C, allowing use in diverse settings from commercial electronics to industrial machinery.

The VAL-U-LOK design incorporates a shrouded, double-row configuration with positive latching and keying features. This ensures accurate mating, prevents misalignment, and enables easy insertion and removal of mating connectors.

Typical applications include power distribution boards, industrial control assemblies, test and measurement equipment, and other PCB-based electronic devices where reliable multi-contact connections are essential.

The connector supports a current rating of 9A and voltage rating of 600V. Constructed with brass contact material plated with tin for reliable conductivity. The housing made from nylon complies with UL94V-2 flammability rating.

Designed with through-hole mount type and solder termination for secure PCB attachment. Operates reliably between -40°C and 105°C for wide environmental suitability. Includes a 3.5 mm tail pin length for easy soldering and connection.

Double row contact arrangement ensures compact space-saving footprint. Positively latched design with keying enables accurate alignment during mating. Ideal for industrial, electronic assemblies requiring rugged, easy-to-install PCB connections.
