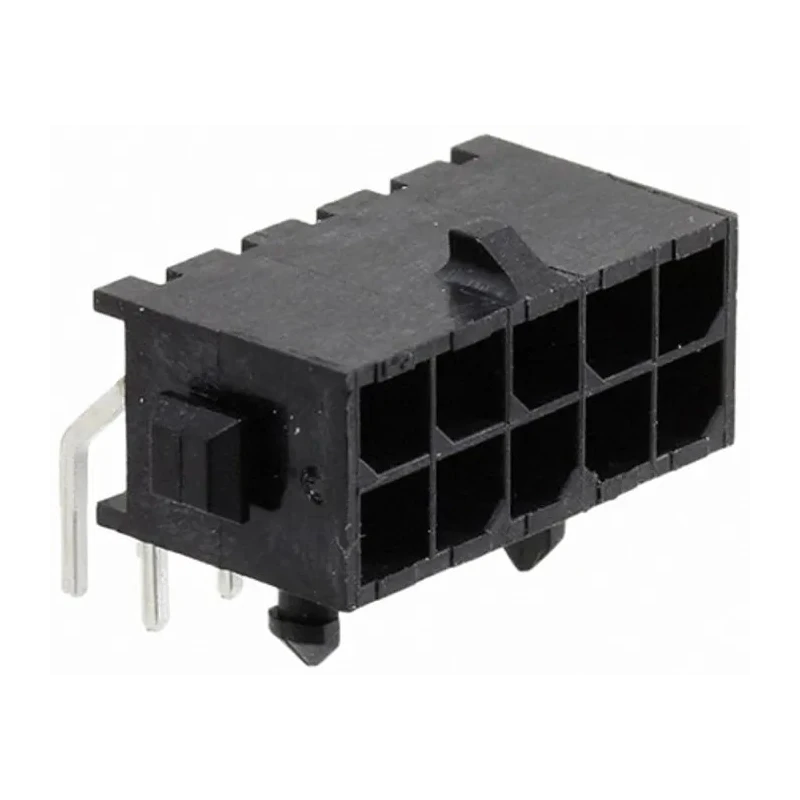

TE Connectivity Micro MATE-N-LOK Series Right Angle Through Hole PCB Header 10 Contacts 3 mm Pitch 2 Row Shrouded 4-794618-0
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Micro MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.03mm |
Key Features
- The connector housing is made of durable nylon material ensuring robust performance.
- Supports a voltage rating of 250V and operating temperatures from -55°C to 105°C.
- Right-angle orientation with through-hole mount type for secure PCB connections.
- Brass contacts with tin plating provide reliable electrical conductivity and corrosion resistance.
- Includes polarization and positive lock tabs to prevent mismating and secure cable connection.
- Tail pin length measures 3.03 mm suitable for solder termination.
- Designed for industrial, electronic components, and automation applications.
- Provides a low profile connector option ideal for lighting and LED applications.
Product Description
TE Connectivity 4-794618-0 Micro MATE-N-LOK Series Right Angle Through Hole PCB Header features a 3 mm pitch and 10 male contacts arranged in 2 rows within a shrouded nylon housing designed for wire-to-board connections. Rated for 5A current and 250V voltage, it operates reliably in a temperature range from -55°C to 105°C.
The right-angle orientation and through-hole mounting provide a secure and stable connection to PCBs with added boardlocks and solder tail retention features. Contacts are made from brass and plated with tin to offer corrosion resistance and dependable electrical conductivity.
This Micro MATE-N-LOK connector system incorporates polarization to prevent incorrect mating and positive lock tabs to ensure the connector stays firmly linked to the mating cable assembly. The tail pin length of 3.03 mm is optimized for solder termination methods.
This connector is designed for a variety of industrial, manufacturing, electronic components, factory automation, household appliances, lighting, data storage, and security applications. Its low profile design is particularly suited for LED lighting systems and other space-constrained installations.
The connector housing is made of durable nylon material ensuring robust performance. Supports a voltage rating of 250V and operating temperatures from -55°C to 105°C. Right-angle orientation with through-hole mount type for secure PCB connections.
Brass contacts with tin plating provide reliable electrical conductivity and corrosion resistance. Includes polarization and positive lock tabs to prevent mismating and secure cable connection. Tail pin length measures 3.03 mm suitable for solder termination.
Designed for industrial, electronic components, and automation applications. Provides a low profile connector option ideal for lighting and LED applications. Explore more connectors and electronic components at EnvMart for quality assurance and extensive industrial use.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a voltage rating of 250V.
It is rated for a current capacity of 5A.
This unit operates reliably in a temperature range from -55°C to 105°C.
The connector features 10 male contacts arranged in 2 rows.
The housing is made of nylon, and the contacts are made from brass with tin plating for corrosion resistance.
It utilizes a through-hole mount type for secure PCB connections.
The tail pin length measures 3.03 mm, suitable for solder termination methods.
Yes, it includes polarization and positive lock tabs to prevent mismating and secure the cable connection.
The connector is designed with a right-angle orientation.
It is designed for a variety of applications including industrial, manufacturing, electronic components, and lighting systems.
The contacts are arranged with a pitch of 3 mm.
The country of origin for this product is China.
