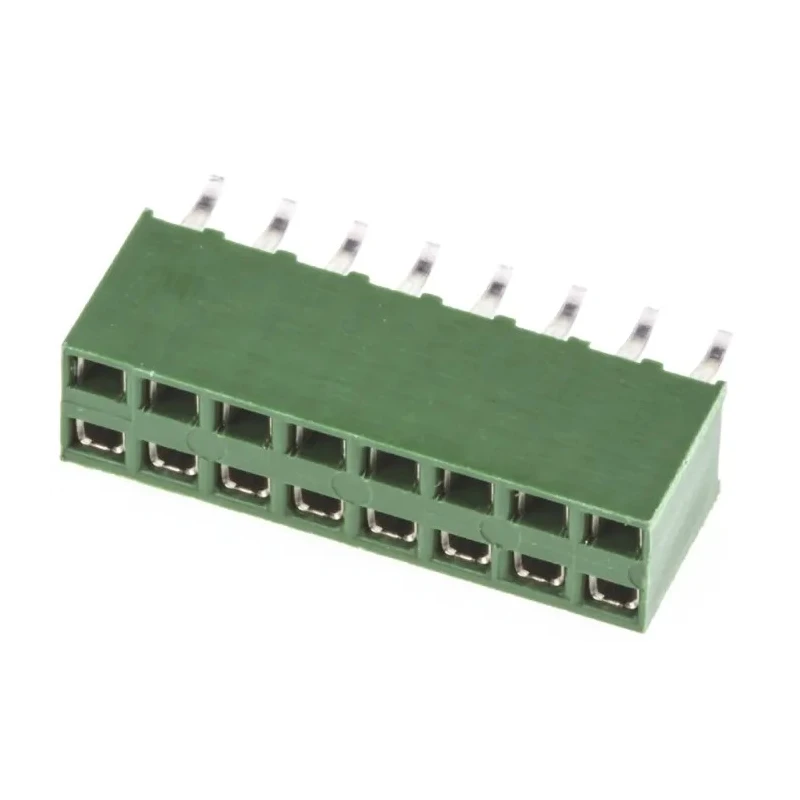

TE Connectivity AMPMODU Series Straight Through Hole PCB Socket, 16-Contact, 2 Row, 2.54 mm Pitch, Solder Termination HV100
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Model | HV100 |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Bronze |
| Series | AMPMODU HV100 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- The socket features a 2.54 mm pitch with 16 contacts arranged in 2 rows.
- Constructed with polyester housing, it meets UL 94V-0 flame retardant standards for safety.

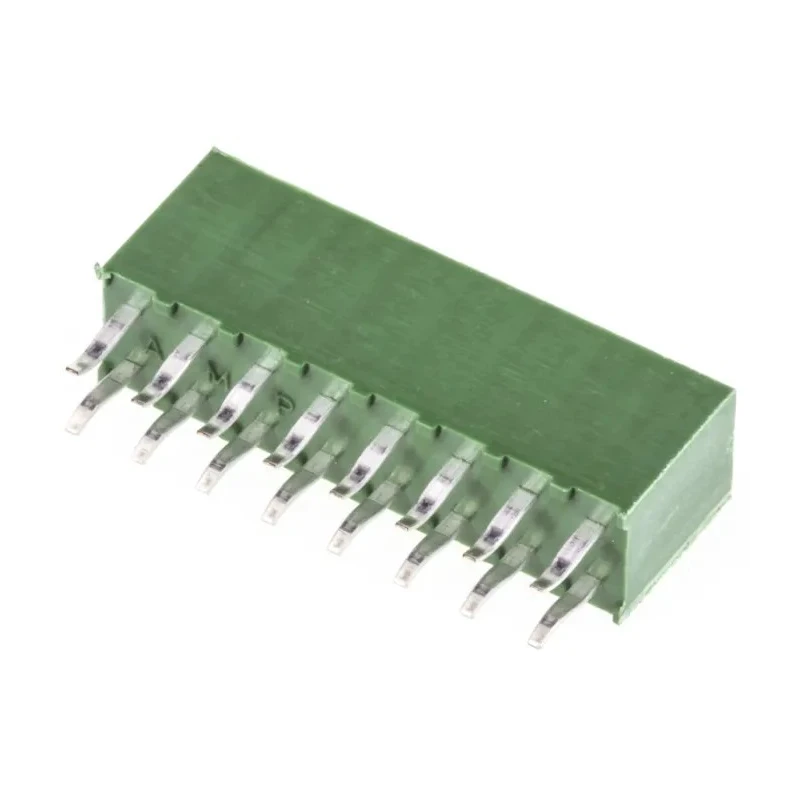

- Designed with kinked solder legs to ensure a secure retention on the PCB.
- Operates reliably between -65°C and 105°C temperature range.
- Contacts are female gender made of bronze with tin plating for corrosion resistance.
- Supports a maximum current of 12 A, suitable for industrial applications.
- Mounting type is through hole with a straight orientation for easy installation.
- The socket is part of the AMPMODU HV100 series optimized for stacking applications.
Product Description
TE Connectivity HV100 PCB Socket model HV100 is a high-quality 16-contact, 2-row straight through hole socket designed for board-to-board electronic connector applications. The socket features a precise 2.54 mm pitch and is optimized for solder termination using kinked solder legs to guarantee robust retention on printed circuit boards.
Manufactured with a polyester housing certified to UL 94V-0 flame retardant standards, this socket ensures safety and longevity in demanding industrial environments. Its design includes board stand offs that provide mechanical support and stability during assembly and operation.
The contact pins are female, crafted from bronze material and plated with tin to ensure excellent conductivity and corrosion resistance. The socket is designed to operate efficiently across a wide temperature range from -65°C to 105°C, making it suitable for rigorous electronic applications including industrial, manufacturing, and testing setups.
Belonging to the AMPMODU HV100 series, this PCB socket supports versatile stacking heights for flexible installation configurations. It carries a maximum current rating of 12 A and features through-hole mounting with a straight orientation to facilitate easy and secure PCB assembly.
The socket has 16 contacts arranged in 2 rows with 2.54 mm pitch spacing. Polyester housing with UL 94V-0 flame retardant rating enhances safety. Kinked solder legs enable secure retention on circuit boards. Wide operating temperature range from -65°C to 105°C ensures reliability.
Contacts made from bronze with tin plating for effective conductivity and durability. Supports 12 A current suitable for varied electronic applications. Through hole mount type with straight orientation simplifies installation.
Board stand offs incorporated into the housing improve mechanical stability. Series supports stacking applications with different mounting heights.
This TE Connectivity PCB socket is ideal for electronics manufacturers, industrial equipment engineers, and labs requiring dependable board-to-board connection solutions. It ensures durable performance, compliance with safety standards, and flexible installation options. Explore more products in the PCB Sockets category for comprehensive electronic component needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this PCB socket is 12 A, making it suitable for various industrial applications.
The contacts in this model are arranged with a pitch of 2.54 mm.
This socket operates reliably within a temperature range of -65°C to 105°C.
The housing of this PCB socket is constructed from polyester, which is certified to UL 94V-0 flame retardant standards.
This socket features 16 contacts arranged in 2 rows.
The socket uses solder termination, optimized for secure connections on printed circuit boards.
The contacts in this PCB socket are female, made from bronze with tin plating for corrosion resistance.
This model supports through hole mounting with a straight orientation for easy installation.
This PCB socket is part of the AMPMODU HV100 series, which is optimized for stacking applications.
The kinked solder legs are designed to ensure secure retention on the PCB, enhancing the stability of the connection.
The country of origin for this PCB socket is India.
This socket is suitable for board-to-board electronic connector applications, particularly in industrial, manufacturing, and testing setups.
