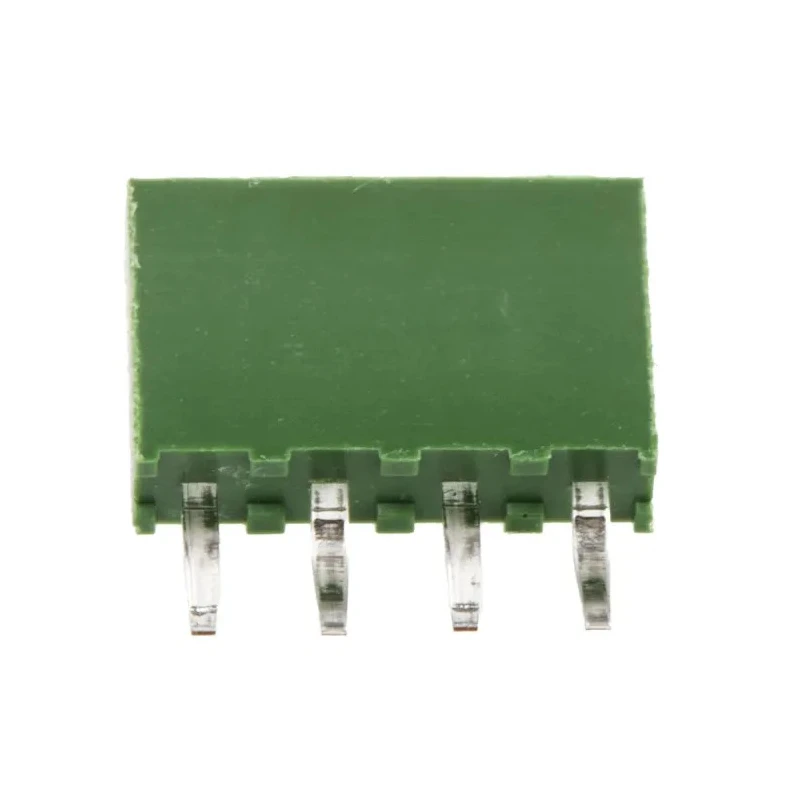

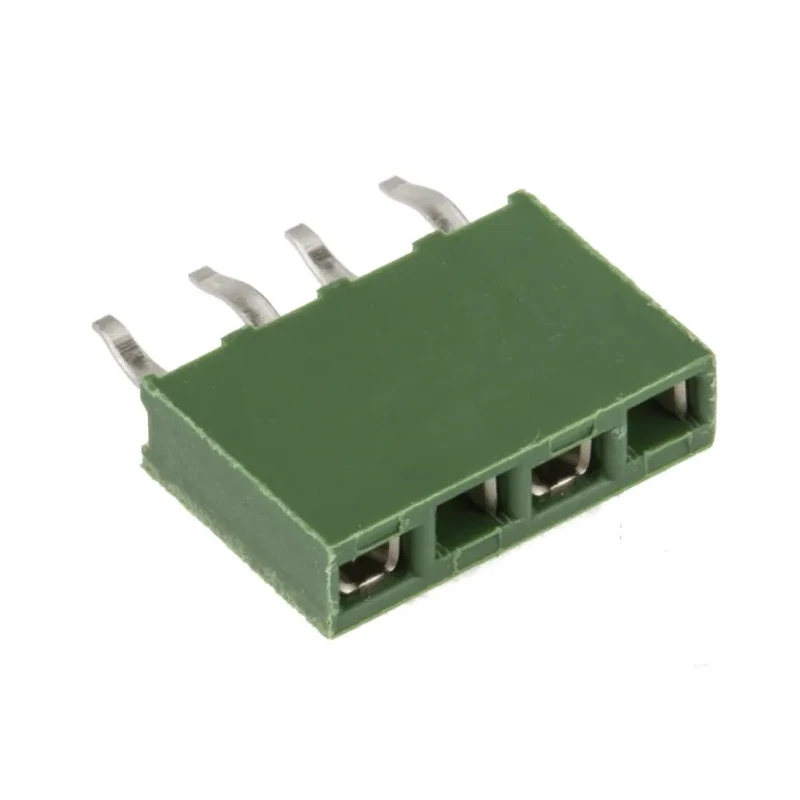

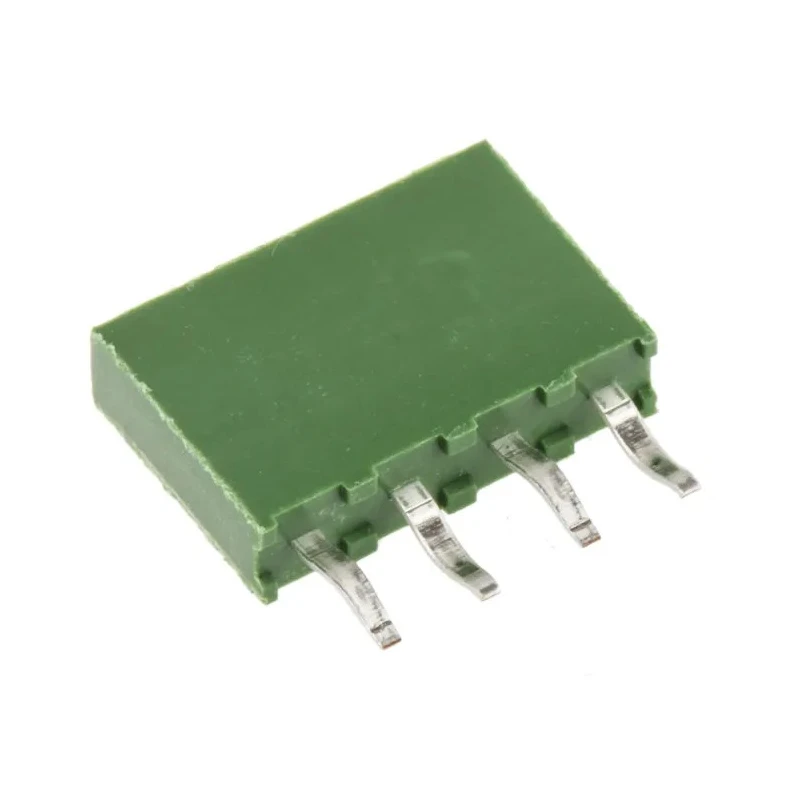

TE Connectivity AMPMODU Series Straight Through Hole PCB Socket, 4-Contact, 1 Row, 2.54 mm Pitch 12A Solder Termination HV100
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Model | HV100 |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Bronze |
| Series | AMPMODU HV100 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Features kinked solder legs for secure retention on PCBs.
- Made with UL 94V-0 flame retardant polyester housing material.
- Suitable for stacking applications with two available mounting heights.
- Supports 12A current with bronze female contacts plated with tin.
- Operates reliably from -55°C to 105°C temperature range.
- Straight orientation ensuring smooth board-to-board connection.
- Ideal for electronic, industrial, and manufacturing applications.
Product Description
TE Connectivity HV100 Series Straight Through Hole PCB Socket (model HV100) is a precision-engineered connector with 4 female contacts in a single row and a 2.54 mm pitch designed for robust board-to-board interfacing.
The socket features kinked solder legs that provide strong securement to printed circuit boards, preventing dislodgement during assembly or operation. Its flame retardant UL 94V-0 polyester housing offers excellent safety and durability.
Available in mounting heights of 7 mm and 8.5 mm, these sockets are suitable for stacking and compact PCB configurations. The contact material is bronze with tin plating, giving reliable conductivity and corrosion resistance while supporting currents up to 12 amperes.
The operating temperature range from -55°C to 105°C ensures dependable performance in diverse industrial environments. The straight orientation design enables seamless vertical board connections.
This PCB socket is tailored for use in electronic components, power connectors, industrial control systems, manufacturing assemblies, and related applications requiring high-quality, dependable interconnects.
Features kinked solder legs for secure PCB retention. UL 94V-0 flame retardant polyester housing material. Available in two mounting heights for stacking adaptability. Bronze female contacts with tin plating support 12A current.
Operating temperature from -55°C to 105°C. Straight orientation for board-to-board connection. Ideal for industrial, electronic, and manufacturing uses. Explore the extensive range of TE Connectivity PCB connectors and sockets at EnvMart for reliable interconnection solutions tailored to your application needs.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HV100 PCB socket supports a current rating of up to 12 amperes.
This model features a pitch size of 2.54 mm.
The housing material is made of UL 94V-0 flame retardant polyester, and the contacts are made of bronze with tin plating.
It operates reliably within a temperature range of -55°C to 105°C.
This socket has 4 female contacts in a single row configuration.
The HV100 socket uses solder termination for secure connections.
This PCB socket is available in two mounting heights: 7 mm and 8.5 mm.
The orientation of this socket is straight, allowing for smooth board-to-board connections.
It is ideal for use in electronic components, power connectors, industrial control systems, and manufacturing assemblies.
The HV100 socket utilizes a board-to-board connector system.
The country of origin for this socket is India.
The kinked solder legs provide secure retention on printed circuit boards, preventing dislodgement during assembly or operation.
