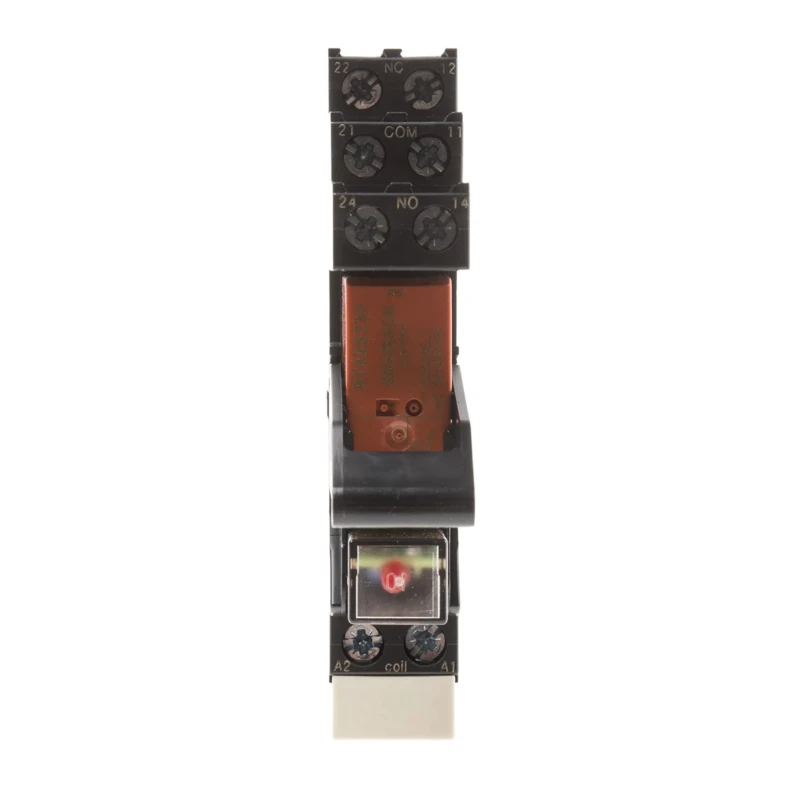

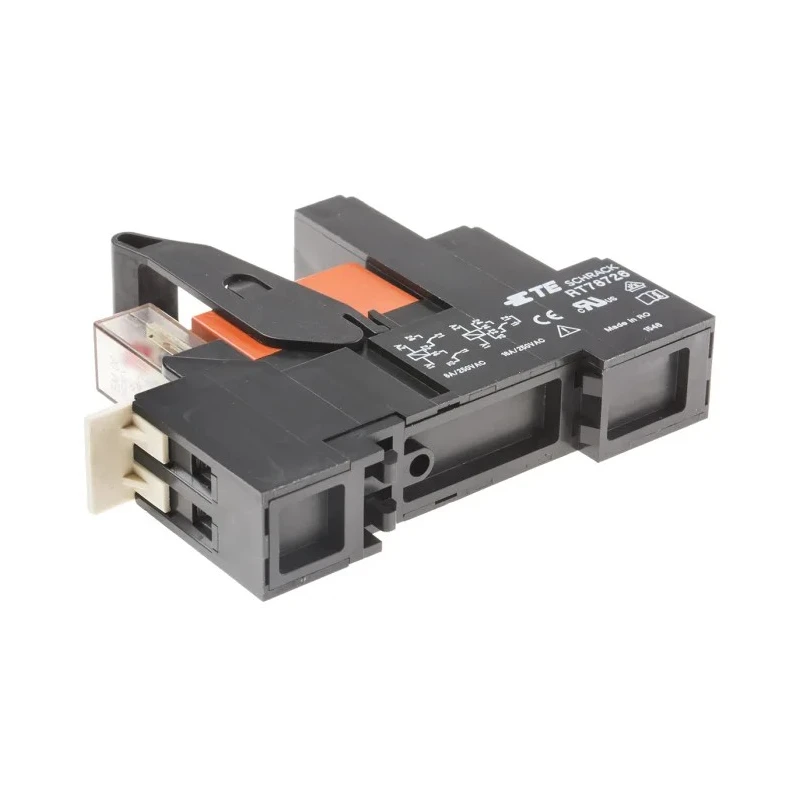

TE Connectivity DIN Rail Power Relay 230V AC Coil, 8A Switching Current, DPDT RT4S5T30 2-1415074-1

TE Connectivity RT4S5T30 2-1415074-1 is a high-quality DIN Rail Power Relay featuring a 230V AC coil voltage and capable of switching currents up to 8 amperes.

This relay features a DPDT (Double Pole Double Throw) contact configuration and is designed for seamless integration and secure mounting on standard DIN rails, making it suitable for use in industrial control systems, automation, electrical distribution, and signal conditioning applications.

The relay boasts gold plated contacts that ensure long-term reliability and excellent electrical conductivity. It operates efficiently with a coil power rating of 0.74 VA and has a coil resistance of 32.5 kΩ.

Its robust construction allows operation within a temperature range of -20°C to 70°C, which covers most industrial environments. The compact form factor (77mm length, 15.8mm width, and 69mm height) enables space-saving installation in control panels.

This RT series relay module includes a red LED indicator to visually confirm relay operation status, enhancing troubleshooting and system monitoring ease. The product adheres to multiple certifications including IEC, RoHS, UL, and VDE, underscoring its compliance with international safety and environmental standards.

Ideal for industrial automation, manufacturing equipment, HVAC systems, and electrical control panels, this relay provides reliable switching performance in demanding conditions. Features a DPDT contact configuration for versatile switching.

Mounts securely on DIN rails for easy installation. Equipped with gold plated contacts for enhanced conductivity. Operates within a temperature range of -20°C to 70°C. Coil power consumption is 0.74 VA ensuring energy efficiency.

Relay module includes LED indication for operation status. Complies with IEC, RoHS, UL, and VDE standards for safety and quality. Compact dimensions: Length 77mm, Width 15.8mm, Height 69mm. Explore more Power Relays and DIN rail automation components in the Electronics & Electricals category at EnvMart.
