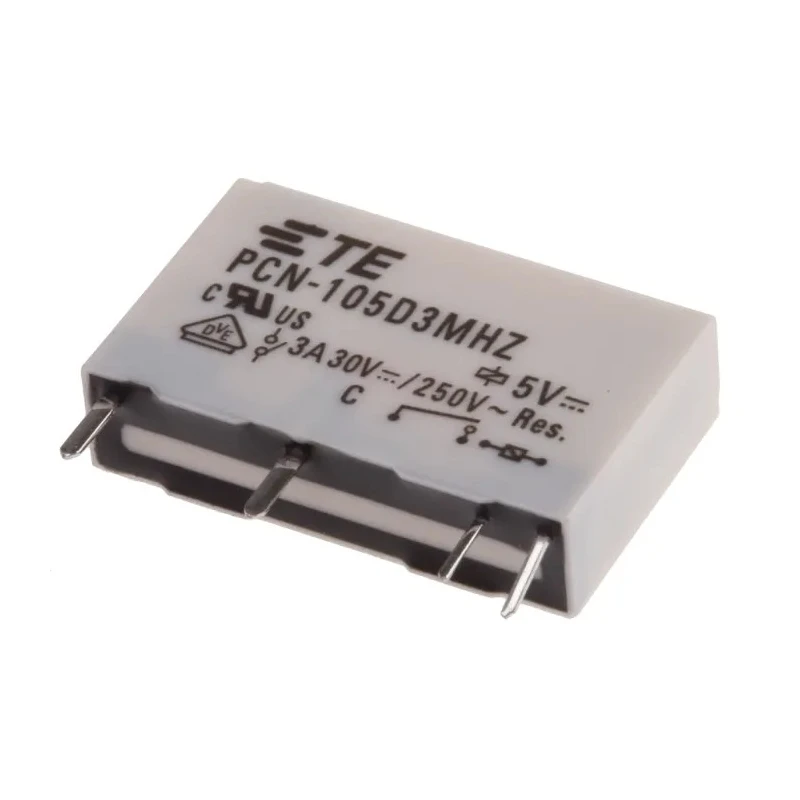

TE Connectivity PCB Power Relay 5V dc Coil 3A Switching Current SPST PCN-105D3MHZ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 12.5mm |
| Length | 20mm |
| Model | PCN-105D3MHZ |
| Width | 5mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | PCN |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Switching Current | 3A |
| Terminal type | Solder |
| Standards/Approvals | REACH, RoHS |
| Coil Resistance | 208Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 120mW |
| Panasonic SPNO Non-Latching Relay PCB Mount, 5V dc Coil, 5 ABrand | Panasonic |
Key Features
- The relay supports a coil voltage of 5V dc and a switching current of 3A.
- It has a single pole single throw (SPST) contact configuration suitable for on/off control.
- Designed for PCB mounting with solder terminal type, it ensures secure connections.
- The coil resistance is 208Ω with coil power consumption of 120mW, enhancing energy efficiency.
- Temperature operation range spans from -30°C to a maximum of 70°C for versatile environments.
- Contact material is silver nickel alloy, offering durability and reliable conductivity.
- It is compliant with REACH and RoHS environmental standards, ensuring regulatory adherence.
- Suitable for a wide array of industrial, automation, electrical control, and signal conditioning applications.
Product Description
TE Connectivity PCN-105D3MHZ is a compact PCB power relay with a 5V dc coil and 3A switching current, providing reliable electrical switching in critical industrial and automation applications. The relay’s SPST configuration offers straightforward on/off control with a slim 5mm width, perfect for space-constrained PCB assemblies.
Built with silver nickel alloy contacts for high conductivity and wear resistance, this relay handles switching voltages up to 125V AC and DC, accommodating various control voltages. The 208Ω coil resistance and low coil power of 120mW ensure efficient energy consumption. It operates in challenging environments, withstanding temperatures from -30°C to 70°C, and is designed with reinforced insulation and washproof RT III standards for durability in industrial setups.
This product complies with important environmental directives such as REACH and RoHS, making it suitable for green manufacturing practices. Its solder-type terminals and PCB mount design facilitate secure and easy integration into electronic circuits.
Applications include industrial automation, signal conditioning, electrical control systems, manufacturing equipment, and more. It is ideal for switching loads requiring precise, low-voltage operation while maintaining performance and reliability on printed circuit boards.
Supports 5V dc coil voltage and 3A switching current. SPST contact configuration with solder terminals for PCB mounting. Extremely slim relay with 5mm width ideal for space-saving designs. Contact material is durable silver nickel alloy for reliable conductivity.
Wide operating temperature range from -30°C to 70°C. Low coil power consumption of 120mW for efficient operation. Reinforced insulation and RT III washproof standards for industrial durability. Compliance with REACH and RoHS environmental standards.
Rated for switching AC and DC voltages up to 125V. Manufactured in China with guaranteed new product condition. Explore EnvMart’s extensive range of quality Power Relays and control components for optimal automation and electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a coil voltage of 5V dc.
It has a maximum switching current of 3A.
It features a single pole single throw (SPST) contact configuration suitable for on/off control.

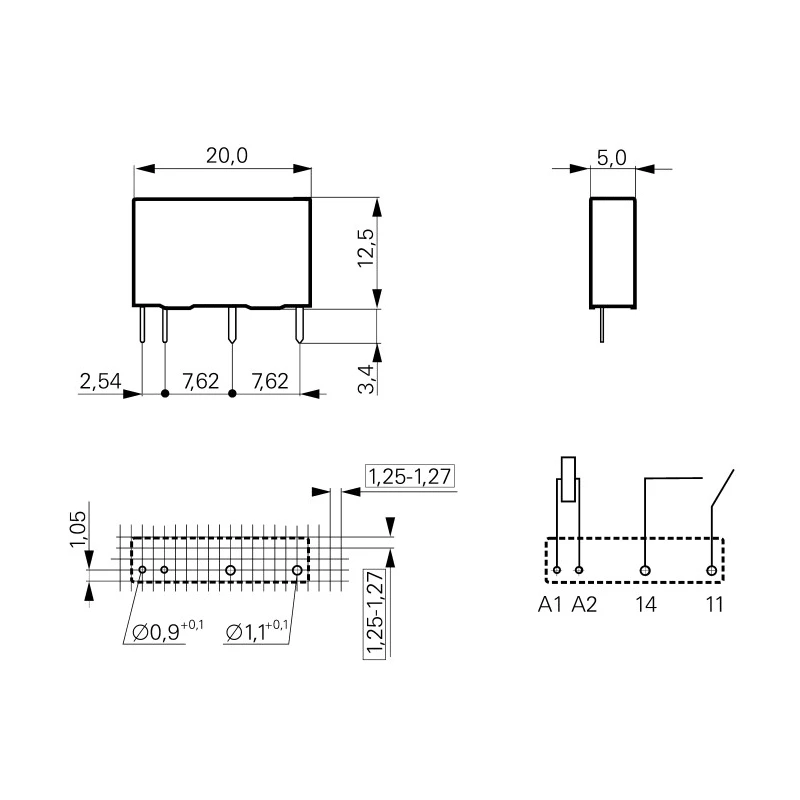

The relay has a length of 20mm, a width of 5mm, and a height of 12.5mm.
The coil resistance is 208Ω.
The coil power consumption is 120mW, which enhances energy efficiency.
It operates within a temperature range from -30°C to a maximum of 70°C.
The contact material is silver nickel alloy, providing reliable conductivity.
This relay is rated for switching AC and DC voltages up to 125V.
It features solder-type terminals for secure PCB mounting.
Yes, it is compliant with REACH and RoHS environmental standards.
It is suitable for industrial automation, electrical control systems, and signal conditioning applications.
