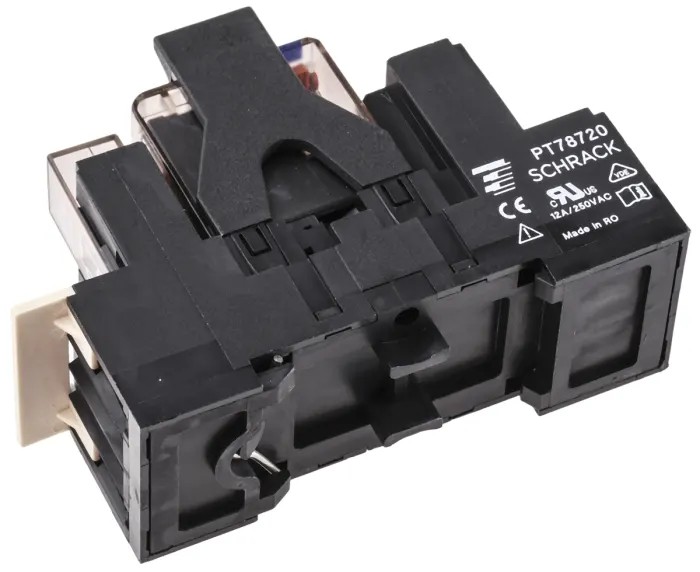

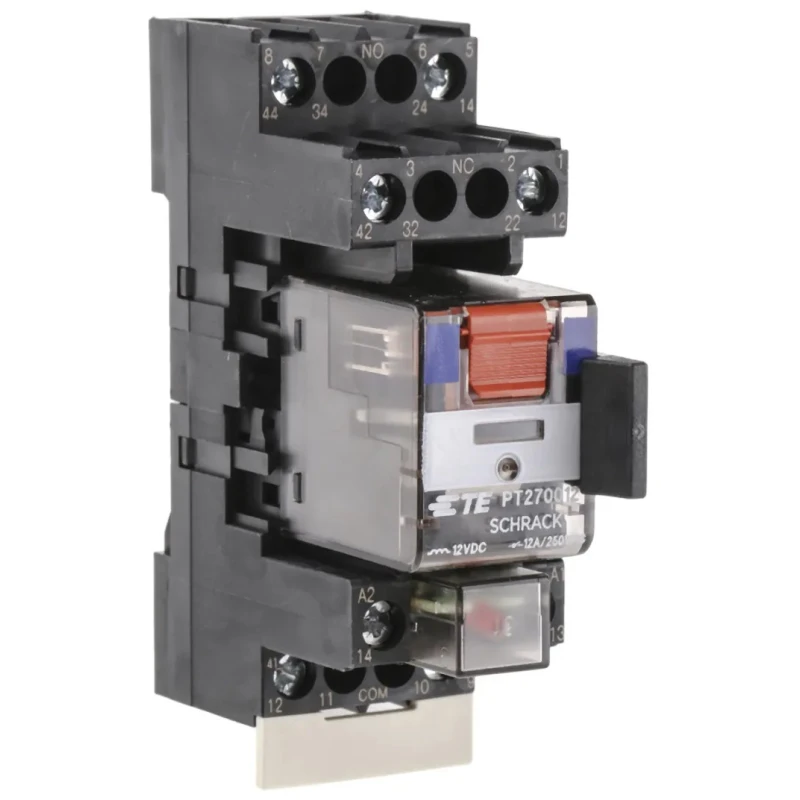

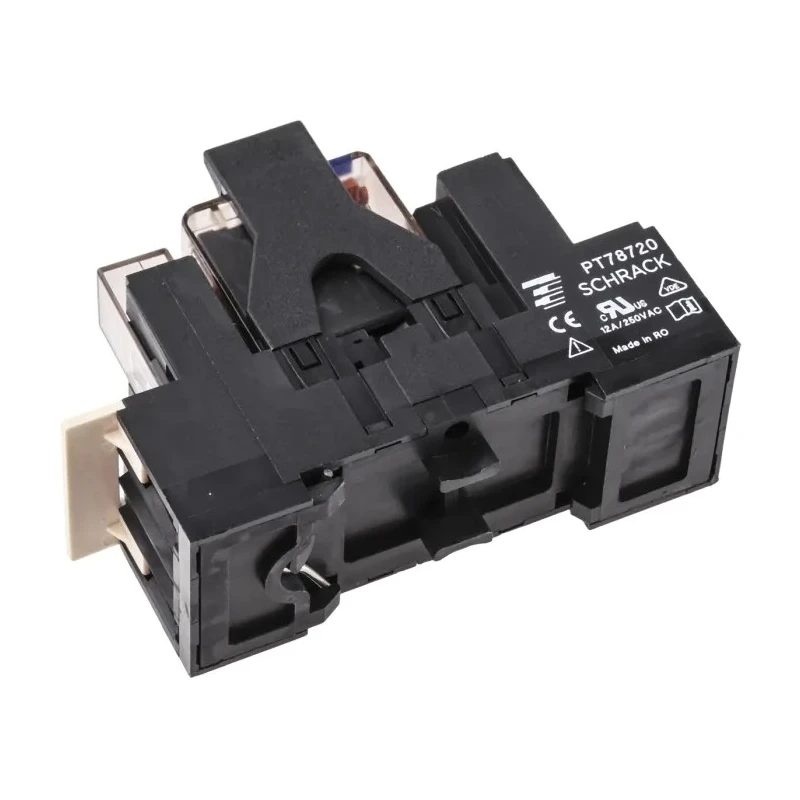

TE Connectivity DIN Rail Power Relay 12V dc Coil 12A Switching Current DPDT PT2S7LB2 7-1415074-1
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 58mm |
| Length | 73.5mm |
| Model | PT2S7LB2 7-1415074-1 |
| Width | 27mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Nickel Alloy |
| Series | PT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Screw |
| Standards/Approvals | VDE, UL, RoHS, IEC |
| Coil Resistance | 192Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
Key Features
- The relay is mounted on a DIN rail providing easy installation.
- It has a coil resistance of 192 ohms ensuring stable operation.
- Operating temperature ranges from -40°C to 70°C for diverse environments.
- Switching AC voltage rating is up to 400V AC, making it suitable for high-power applications.
- The contact material is a durable silver nickel alloy resistant to wear and corrosion.
- It includes a screw terminal type for reliable electrical connections.
- Complies with recognized standards including VDE, UL, RoHS, and IEC for quality assurance.
Product Description
TE Connectivity PT2S7LB2 7-1415074-1 is a high-quality DIN Rail Power Relay designed for industrial and automation control applications. Featuring a 12V dc coil and DPDT contact configuration, it supports a switching current of 12A and switching power up to 3 kVA. The relay ensures efficient operation with a coil resistance of 192 ohms and supports a wide temperature range from -40°C to 70°C, allowing reliable performance in harsh industrial environments.
The relay's silver nickel alloy contact material provides excellent reliability and durability for AC voltage switching up to 400V ac. Mounting on a DIN rail with screw terminals enables secure and straightforward installation within electrical panels. Its compact dimensions (73.5 mm length, 58 mm height, and 27 mm width) allow integration in tight spaces for automation, control systems, and electrical distribution equipment.
This PT series relay includes mechanical and electrical indicators, manual test tabs, and in DC versions features an integrated LED and protection diode module for easy diagnostics and protection. It complies with international standards such as VDE, UL, RoHS, and IEC 61810-1, ensuring safety and quality in diverse industrial applications.
DIN rail mounting with screw terminals for easy installation and wiring. Double pole double throw (DPDT) contact configuration for versatile switching. Suitable for power relays in industrial control, automation, HVAC, and electrical distribution.
Wide operating temperature range supports demanding environmental conditions. Mechanical and electrical indicator features facilitate operation monitoring and testing. Complies with multiple industry standards ensuring global applicability and certification.
Robust silver nickel alloy contacts resist corrosion and wear.
This power relay is ideal for industrial, automation, and electrical applications requiring reliable power switching and controlled coil activation. Its design supports high performance and longevity in demanding environments. Explore the range of TE Connectivity Power Relays on EnvMart for varied industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this power relay is 12A.
The coil voltage of the PT2S7LB2 relay is 12V DC.
This relay features a double pole double throw (DPDT) contact configuration.
The relay has dimensions of 73.5 mm in length, 58 mm in height, and 27 mm in width.
The operating temperature range for this model is from -40°C to 70°C.
This relay is designed for DIN rail mounting, which allows for easy installation.
The maximum AC voltage that this relay can switch is 400V AC.
The contacts of this relay are made from a silver nickel alloy, which is resistant to wear and corrosion.
This relay includes screw terminals for reliable electrical connections.
This relay complies with multiple standards including VDE, UL, RoHS, and IEC.
This relay includes mechanical and electrical indicators, as well as manual test tabs for operation monitoring and testing.
This relay is manufactured in Austria.
