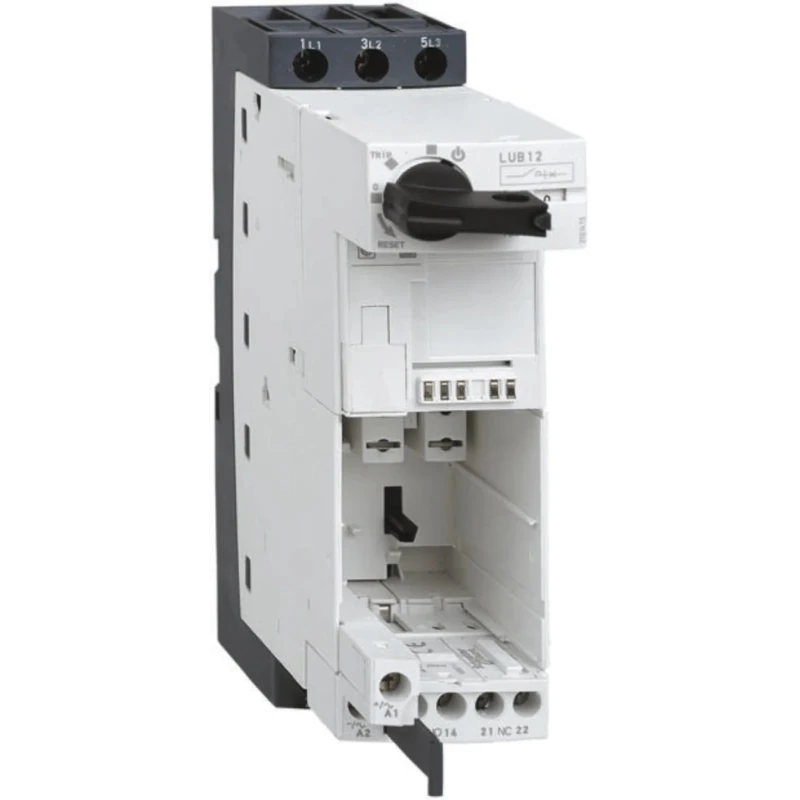

Schneider Electric U-Line Advanced Motor Starter, Reversible, 690V AC, 5.5 kW, 3 Phase, IP40, IP20 LU2B12FU

Schneider Electric LU2B12FU is an advanced motor starter designed for industrial-grade motor control applications. This reversible motor starter supports a power rating of 5.5 kW and operates on three-phase 690V AC supply, making it suitable for medium-power motors in manufacturing, automation, and HVAC systems.

The device features an IP40 and IP20 ingress protection rating, ensuring safe operation in various industrial environments and protecting against solid particle ingress. Its compact DIN rail mount design allows easy integration into control panels with overall dimensions of 224mm in length, 45mm in width, and 126mm in depth.

With a current rating of 12A and incorporation of a braking function capable of 50 kA breaking capacity at 400 V, it supports applications requiring rapid and secure motor stopping. The power base includes padlockable disconnection and isolation functionality, enhancing workplace safety during maintenance or emergencies.

Two auxiliary contacts (one normally open and one normally closed) provide real-time indication of the power contacts' open or closed status, facilitating efficient system monitoring. This motor starter meets multiple safety and quality standards, including IEC 60947-6-2, UL 60947-4-1, ATEX certification for hazardous locations, and CE marking, ensuring reliable performance and compliance with international regulations.

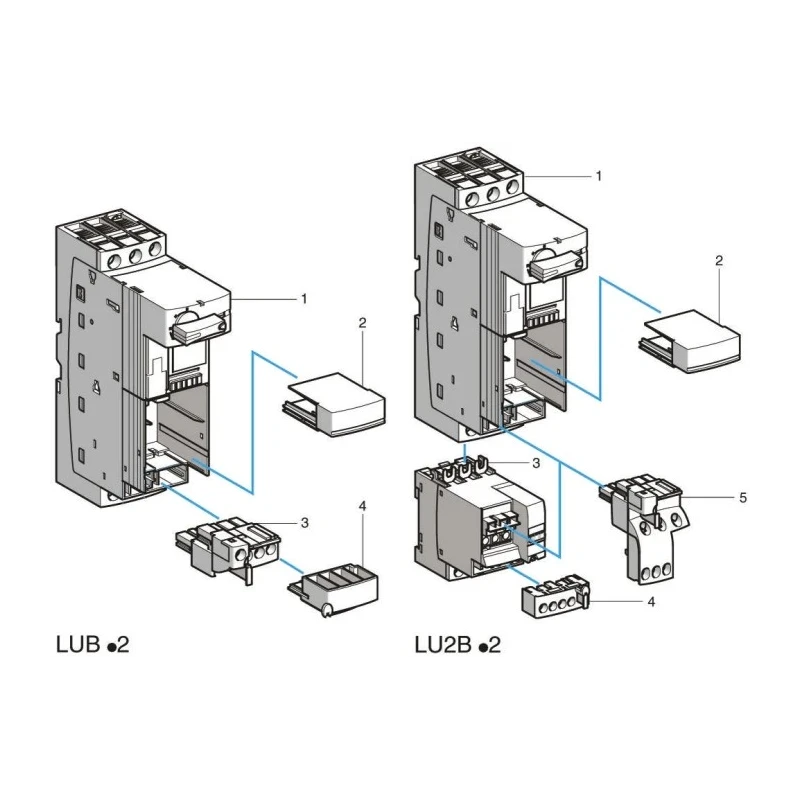

The Schneider Electric U-Line Series is modular and flexible, allowing plug-in modules for quick customization of motor protection parameters and control voltages. This modular design reduces assembly time and simplifies wiring, thereby enabling faster panel build and maintenance operations.

Designed for reliable motor starting and reversing functions. Supports a maximum voltage of 690V AC and motor power of 5.5 kW. Rated current of 12A with 3 poles and suitable for three-phase motors. Equipped with IP40 and IP20 protection ratings for diverse environments.

Compact DIN rail mount form factor with overall dimensions 224mm x 45mm x 126mm. Includes braking function with 50 kA breaking capacity at 400V. Padlockable disconnection and isolation for safety compliance. Two auxiliary contacts (1NO + 1NC) for status indication.

Conforms to IEC 60947-6-2, ASEFA, CSA, CCC, UL 60947-4-1, ATEX, EAC, CE standards for industrial applications.

This advanced motor starter is ideal for industrial automation, manufacturing machinery control, HVAC motor management, and other critical motor-driven equipment requiring reliable motor starting and safety isolation capabilities.
